Additional Pictures

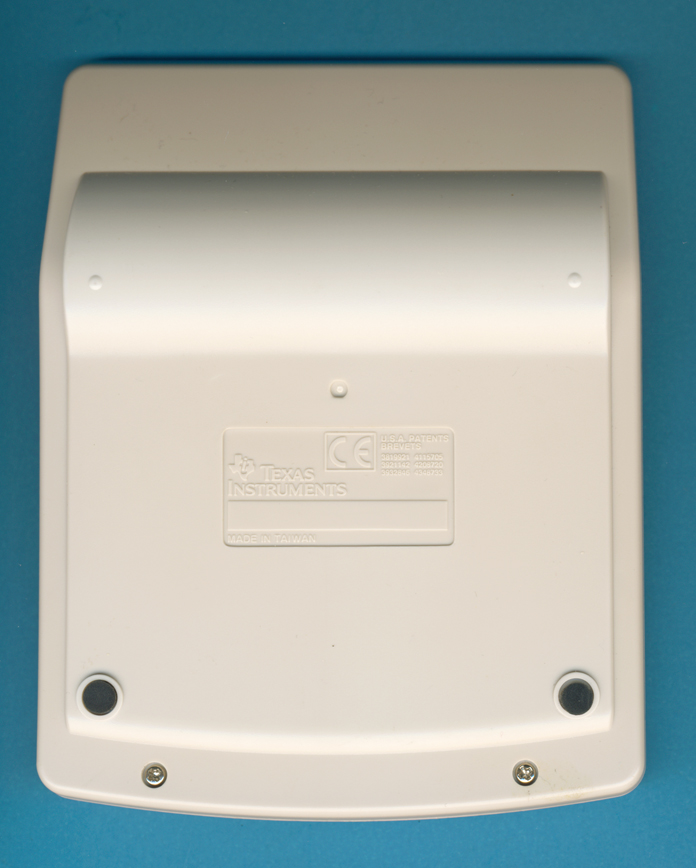

| This non-functional TI-1795+
Design Sample was
manufactured in June 1994 by Kinpo
Electronics in Taiwan for the Marketing Department of Texas Instruments.
|
|

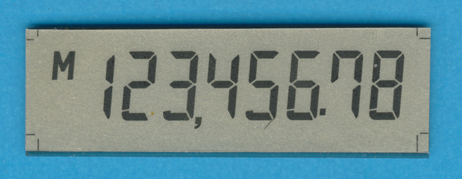

The "Paper-Display"
of the non-functional TI-1795+ Design Sample. |
|

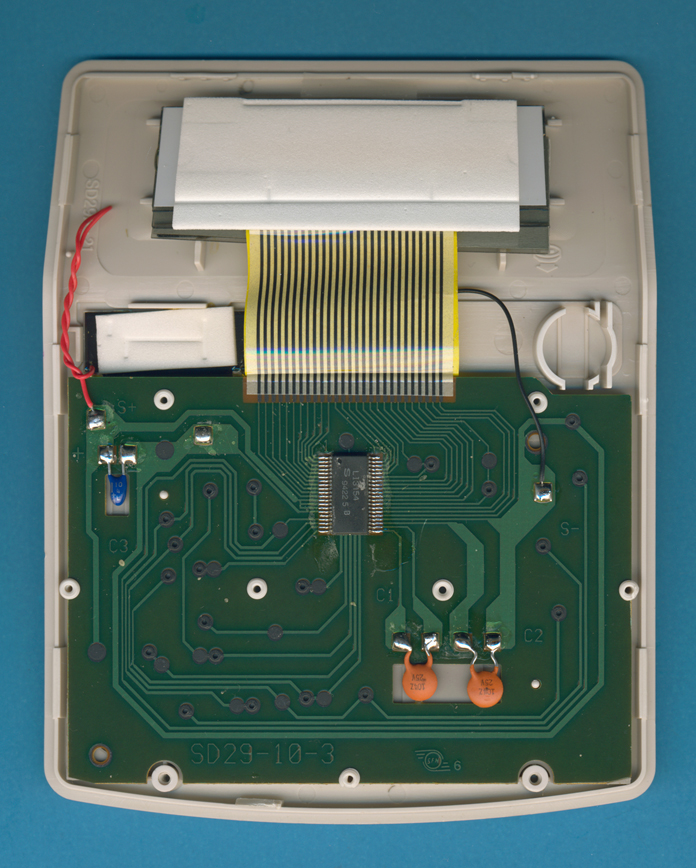

| The printed circuit board
(PCB) of the TI-1795+ Design Sample is centered around a Sharp LI3154 single-chip calculator circuit.
|
|
| Close-up
view of the Sharp LI3154 single-chip calculator
circuit.
|

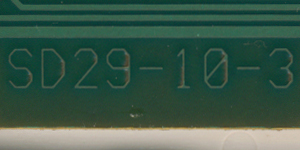

Close-up view of the PCB-Mark
of the TI-1795+. |
