Additional Pictures

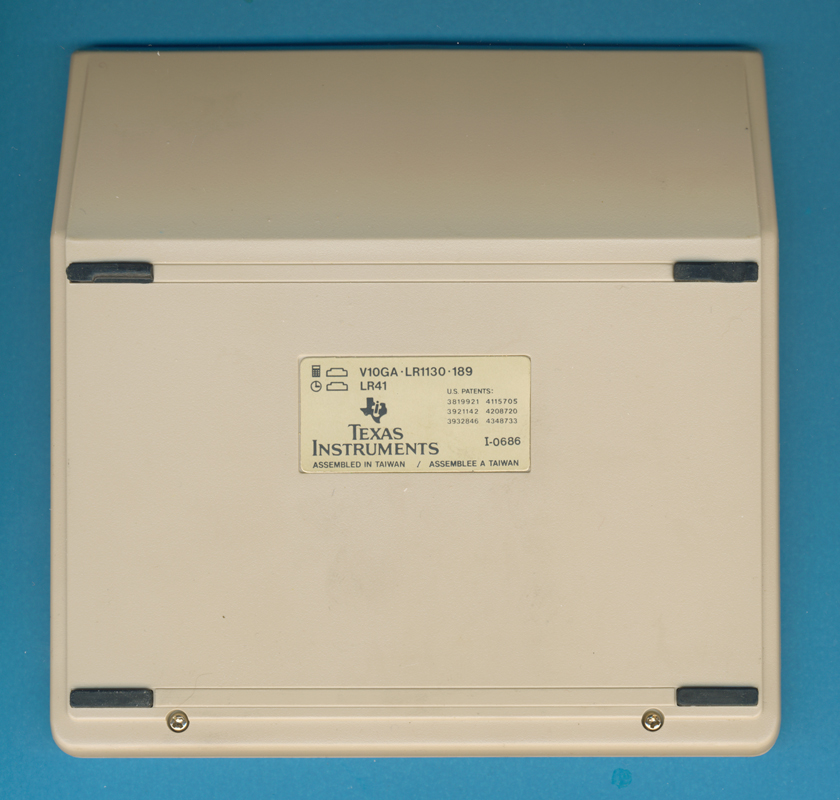

This BA-20 Profit Manager Calculator
was
manufactured in June 1986 by Inventec Corporation in Taiwan (Date code I-0686 » mth 06 yr 1986).
|
|
The BA-20 is powered by
4 solar cells with a LR54 (LR1130) backup battery
and the clock module by a small LR41 battery. |
|

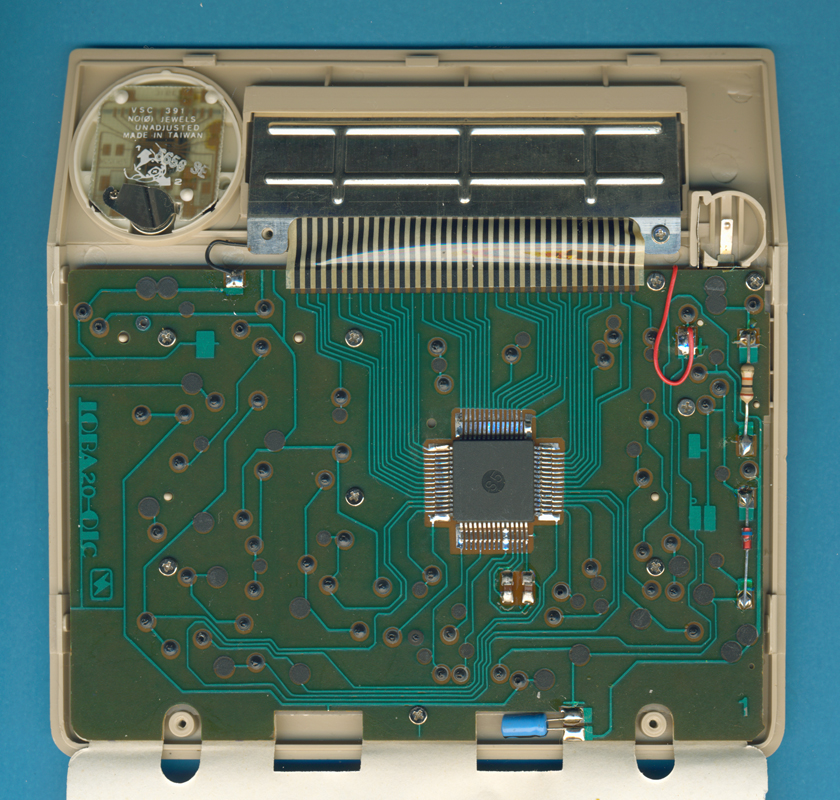

The printed circuit board
(PCB) of the BA-20 is centered around a Sharp LI3163 single-chip calculator circuit.
|
|

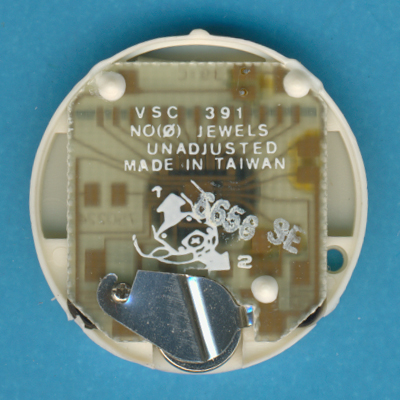

Close-up view of the
clock module. |
|
Close-up
view of the Sharp LI3163 single-chip calculator
circuit. |

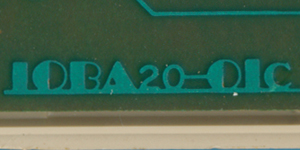

Close-up
view of the PCB-Mark of a BA-20. |
