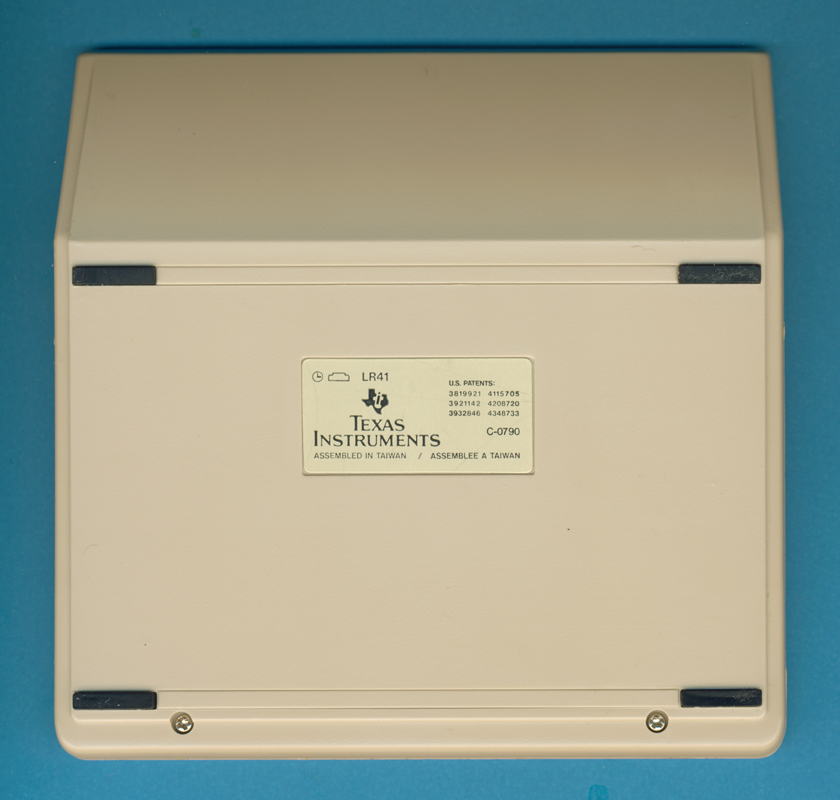

This BA-20 Profit Manager Calculator was manufactured in July 1990 by
Compal Electronics in Taiwan (Date code C-0790 mth 07 yr 1990).

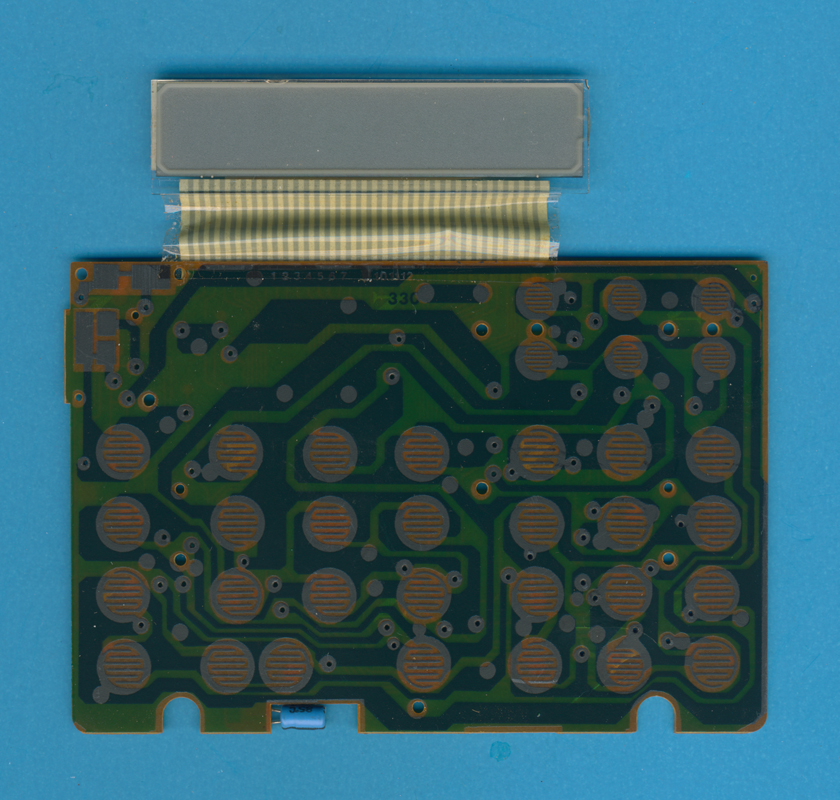

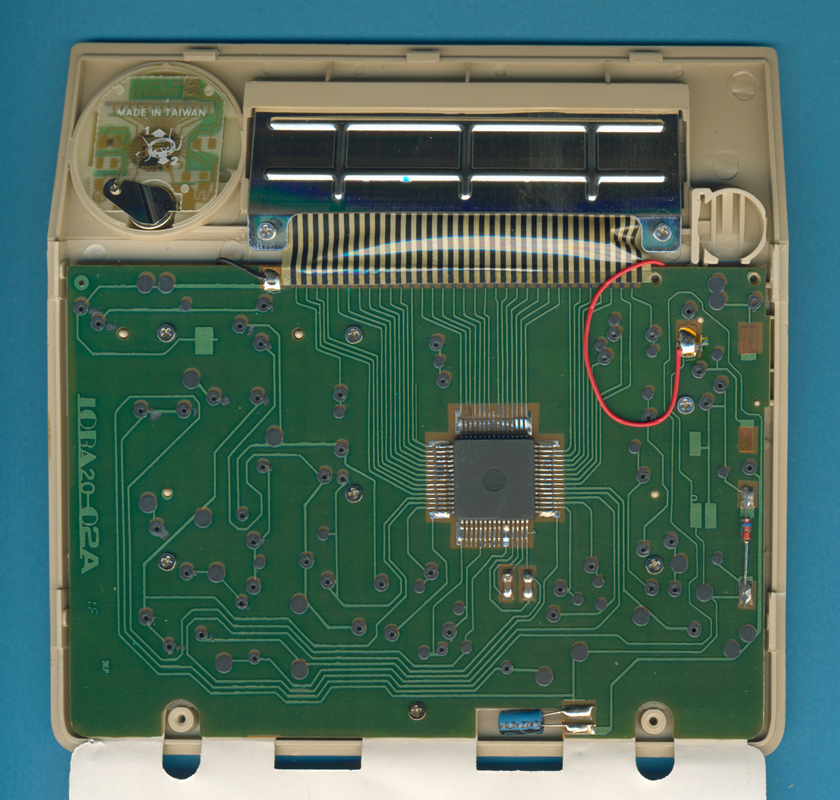

The printed circuit board (PCB) of the BA-20 is centered around a n Inventa LI3163 single-chip calculator circuit.
Please notice the empty space for the backup battery and the contacts for the omitted switch.

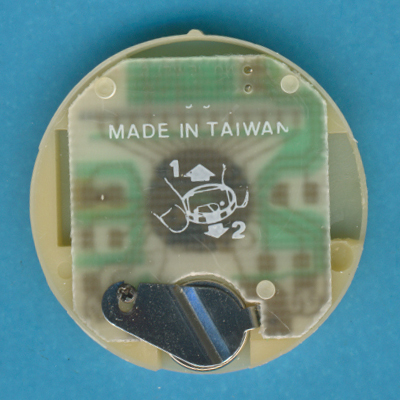

Close-up view of the clock module.

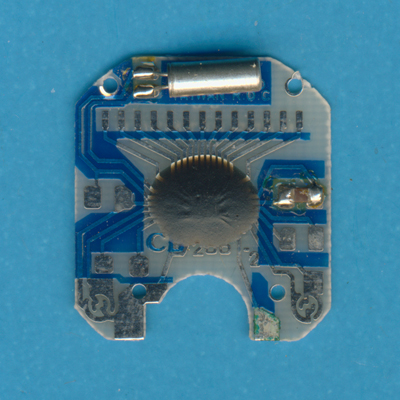

The printed circuit board (PCB) of the clock module.

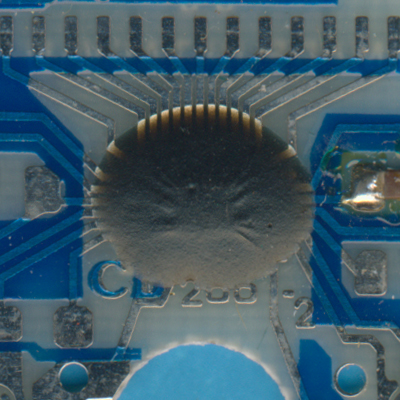

Close-up view of the single-chip clock circuit.

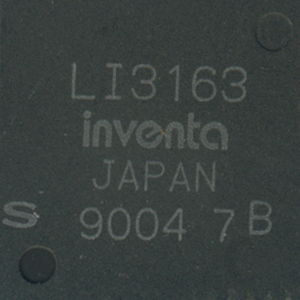

Close-up view of the Inventa LI3163 single-chip calculator circuit.

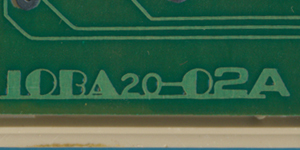

 Close-up view of the PCB-Mark of a BA-20.
