Additional Pictures

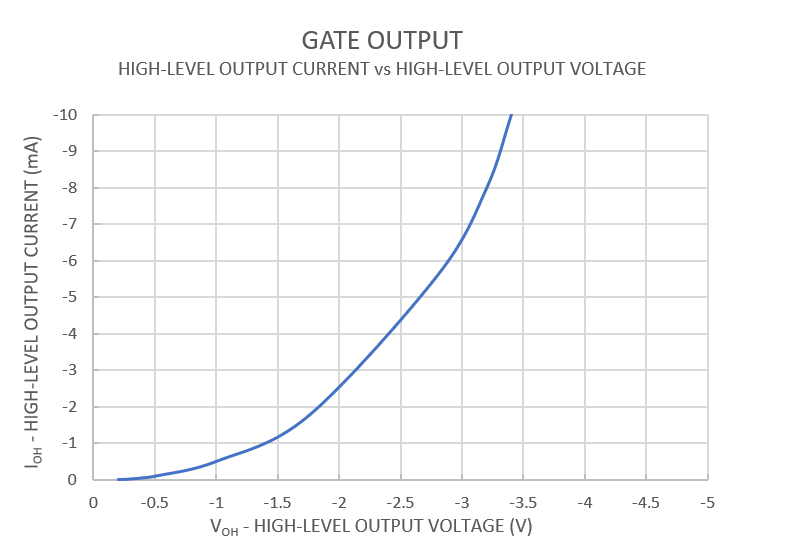

| High-level Output Current versus
High-level Output Voltage of the Gate Output Driver. DUT: TMS3707NL, y 8107 @ VDD = -5.0 V.  |

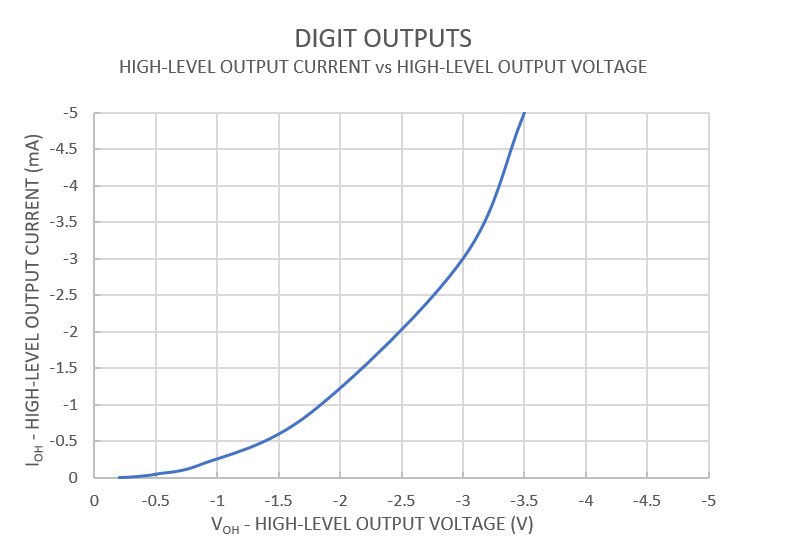

| High-level Output Current versus
High-level Output Voltage of the Digit Output Drivers. DUT: TMS3707NL, y 8107 Digit D3 @ VDD = -5.0 V.  |

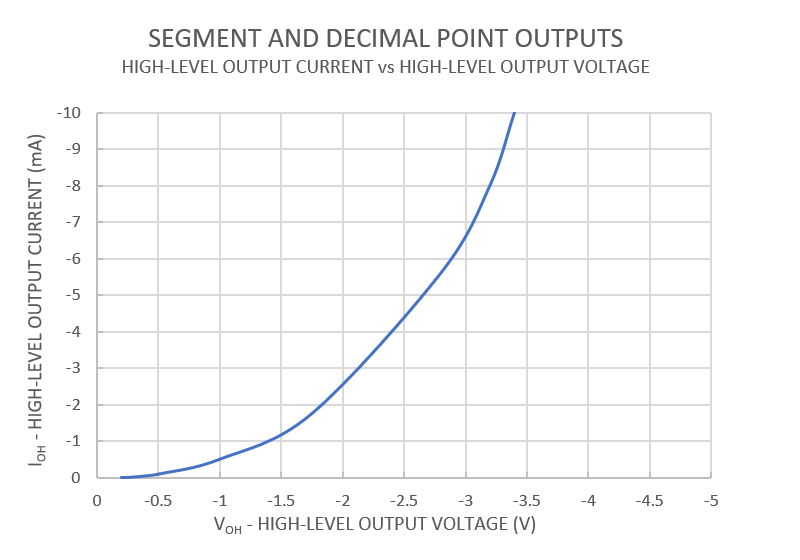

| High-level Output Current versus
High-level Output Voltage of the Segment Output
Drivers. DUT: TMS3707NL, y 8107 Segment F @ VDD = -5.0 V.  |
