Additional Pictures

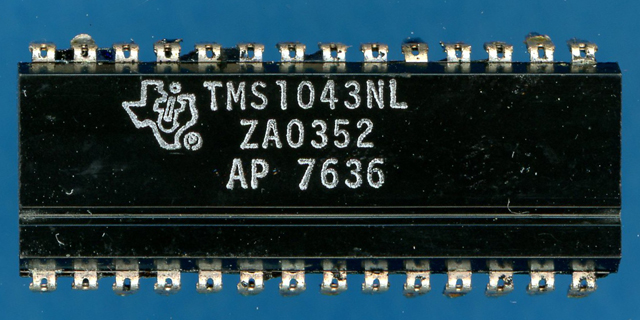

Close-up view of the TMS1043 single-chip calculator circuit used with the TI-2550 III.
PMOS Technology, 28-pin SPDIP 4-bit Microcontroller, 1,024*8 Bits Instruction ROM, 64*4 Bits Data RAM.

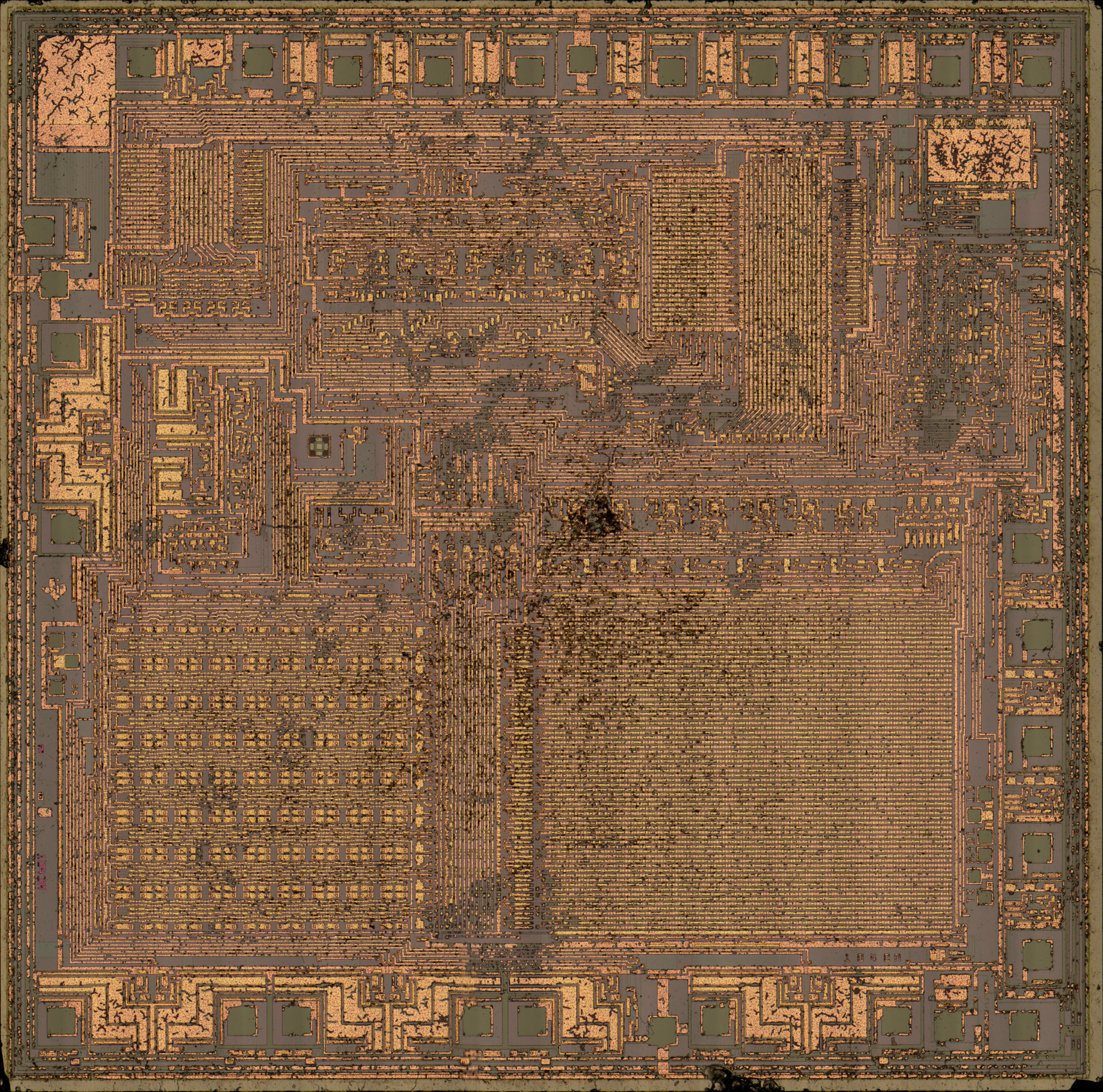

Die Photo of the TMS1040/1043 courtesy of Sean Riddle.

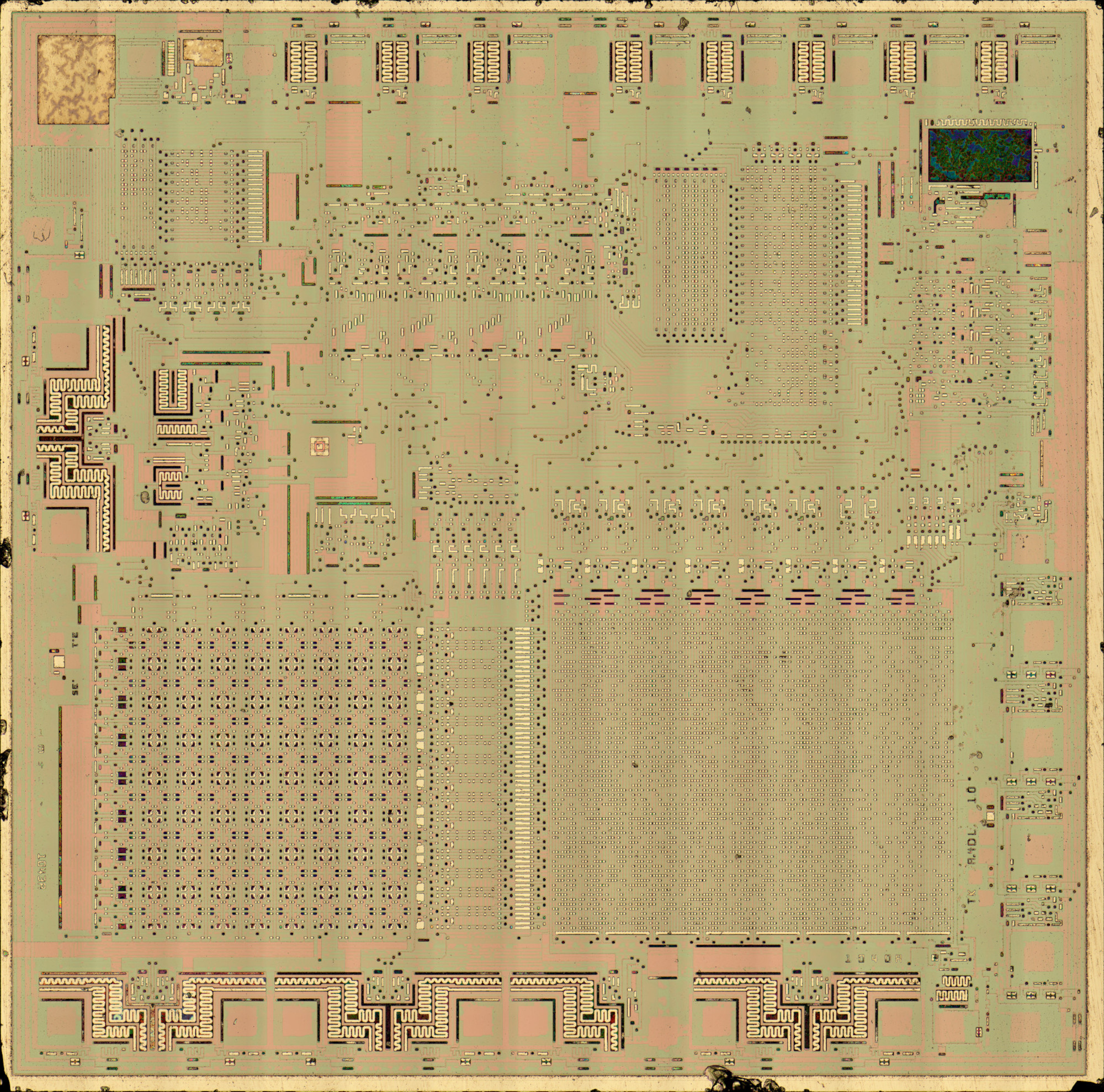

Die Photo (after acid) of the TMS1040/1043 courtesy of Sean Riddle.


If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, February 19, 2023. No reprints without written permission.
