Additional Pictures

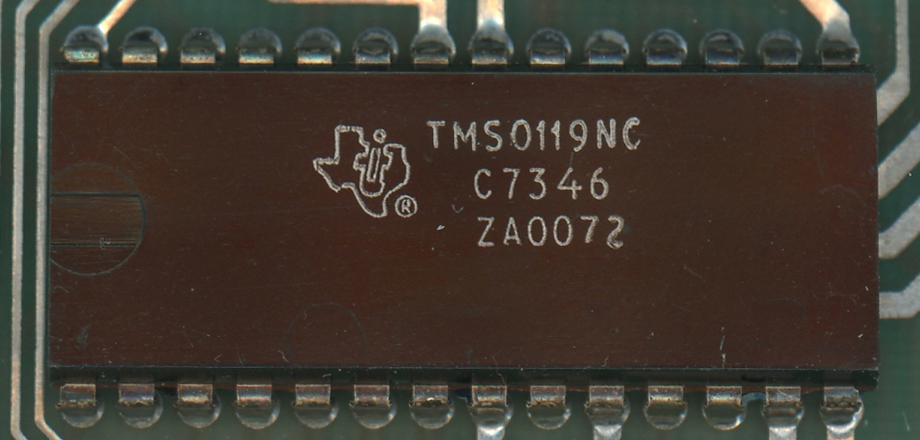

| Close-up view
of the TMS0719 ZA0072 single-chip calculator circuit used with the TI-2510 Datamath. PMOS Technology, 28-pin DIP 4-bit serial Register Processor, 320*11 Bits Instruction ROM, 3*13*4 Bits Data SAM.  |

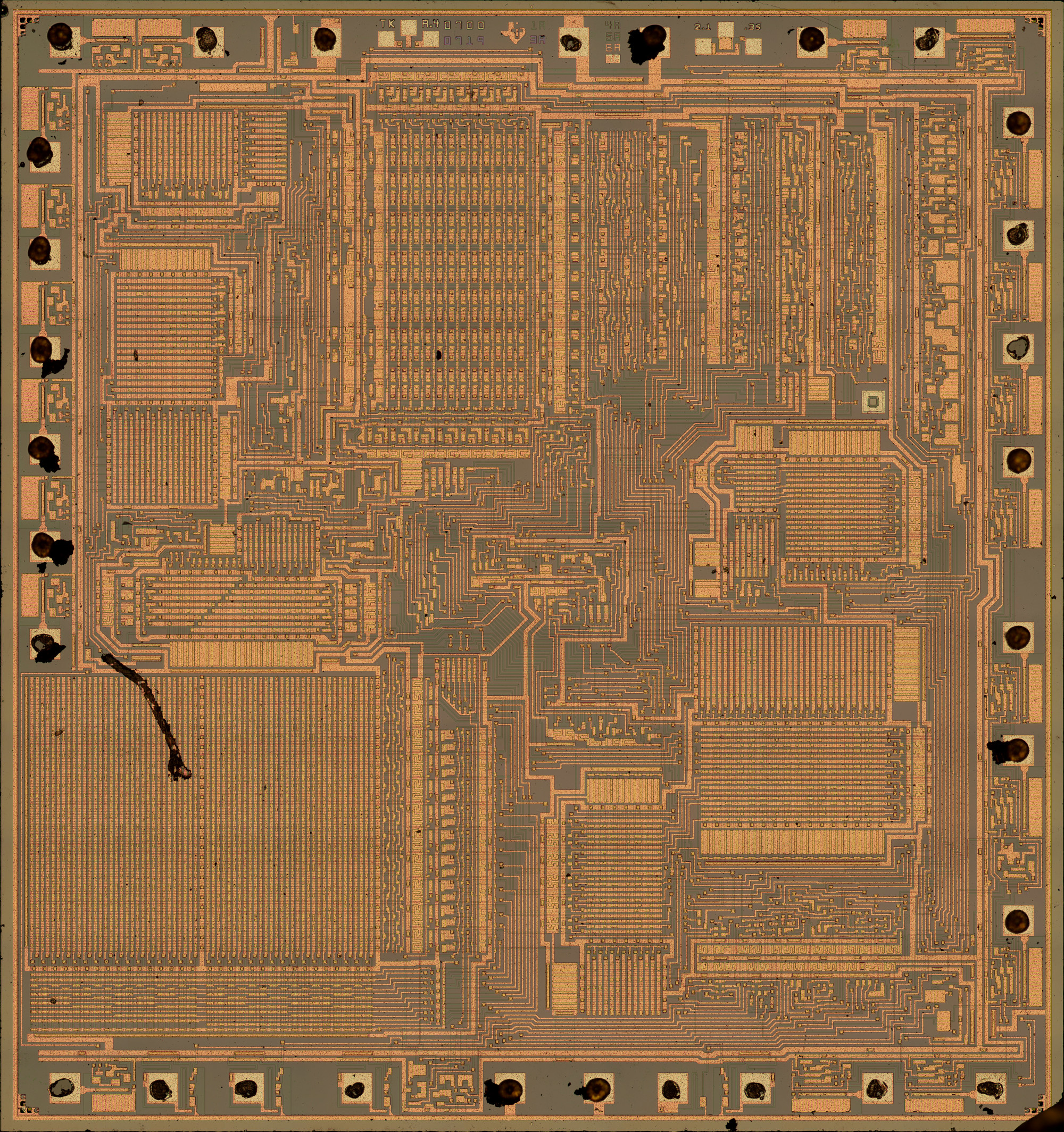

Die Photo of the
TMS0700/TMS0719
courtesy of Sean Riddle. |

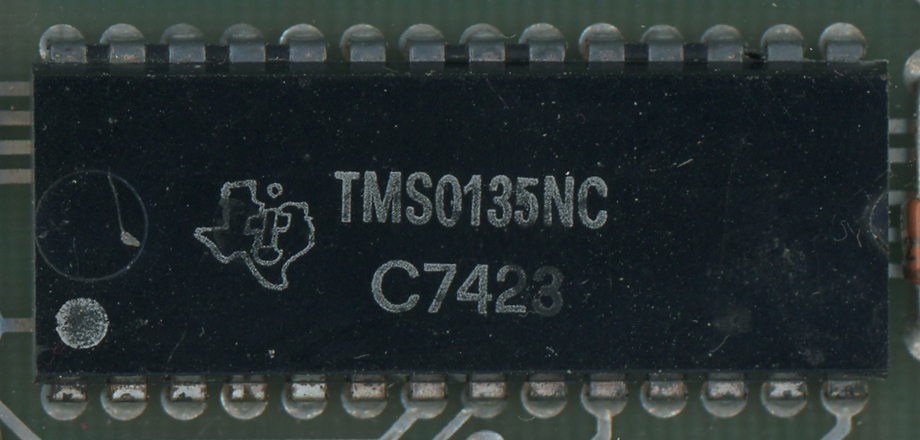

| Close-up
view of the TMS0735 ZA0052 single-chip calculator circuit used with the
Exactra 20. PMOS Technology, 28-pin DIP 4-bit serial Register Processor, 320*11 Bits Instruction ROM, 3*13*4 Bits Data SAM.  |

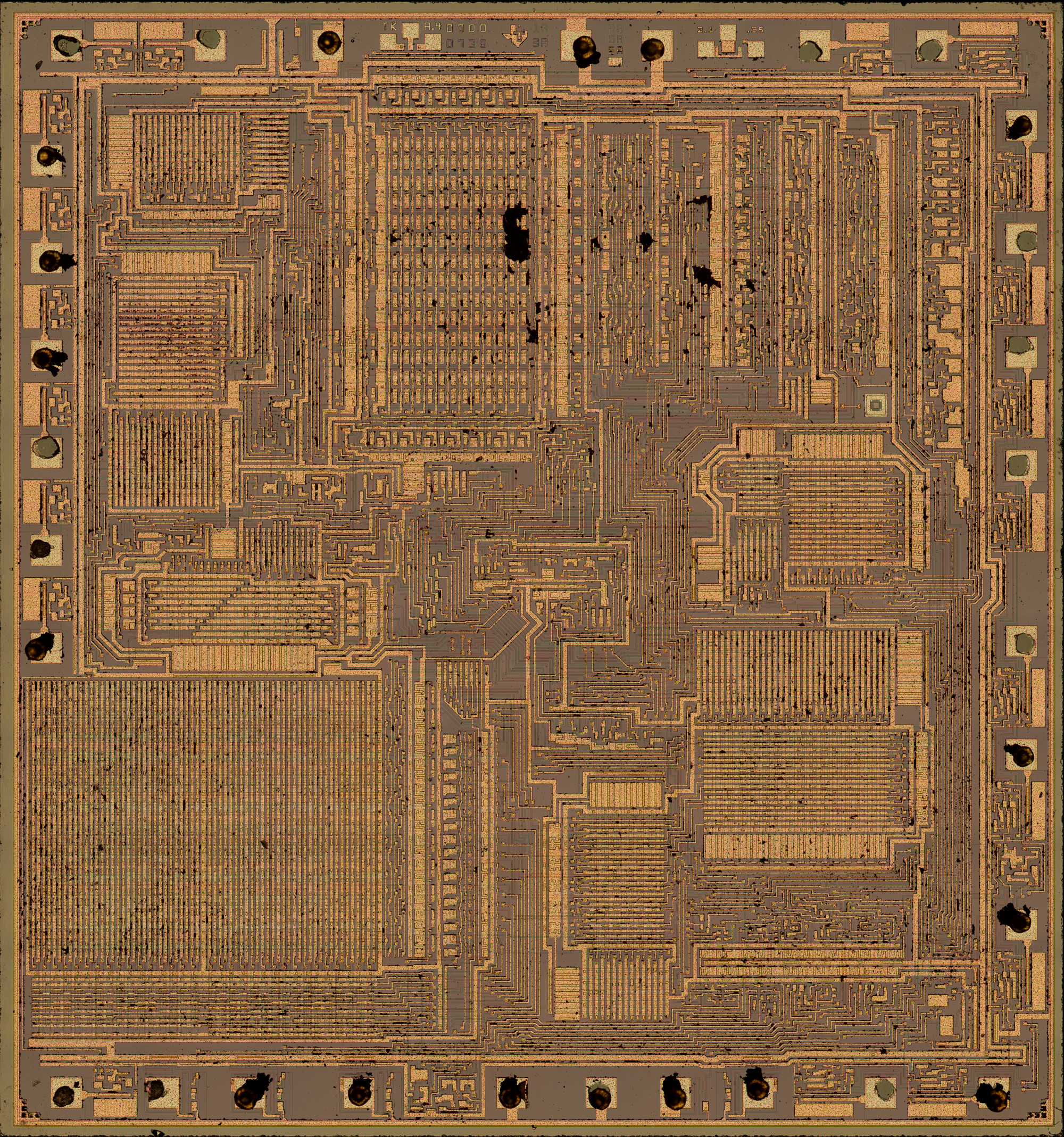

Die Photo of the
TMS0700/TMS0735
courtesy of Sean Riddle. |
