Additional Pictures
| Close-up view
of the TMC0270/CD2702 single-chip calculator circuit used with the La Dictée Magique. PMOS Technology, 40-pin SPDIP 4-bit Microcontroller, 2,048*9 Bits Instruction ROM, 144*4 Bits Data RAM.  |

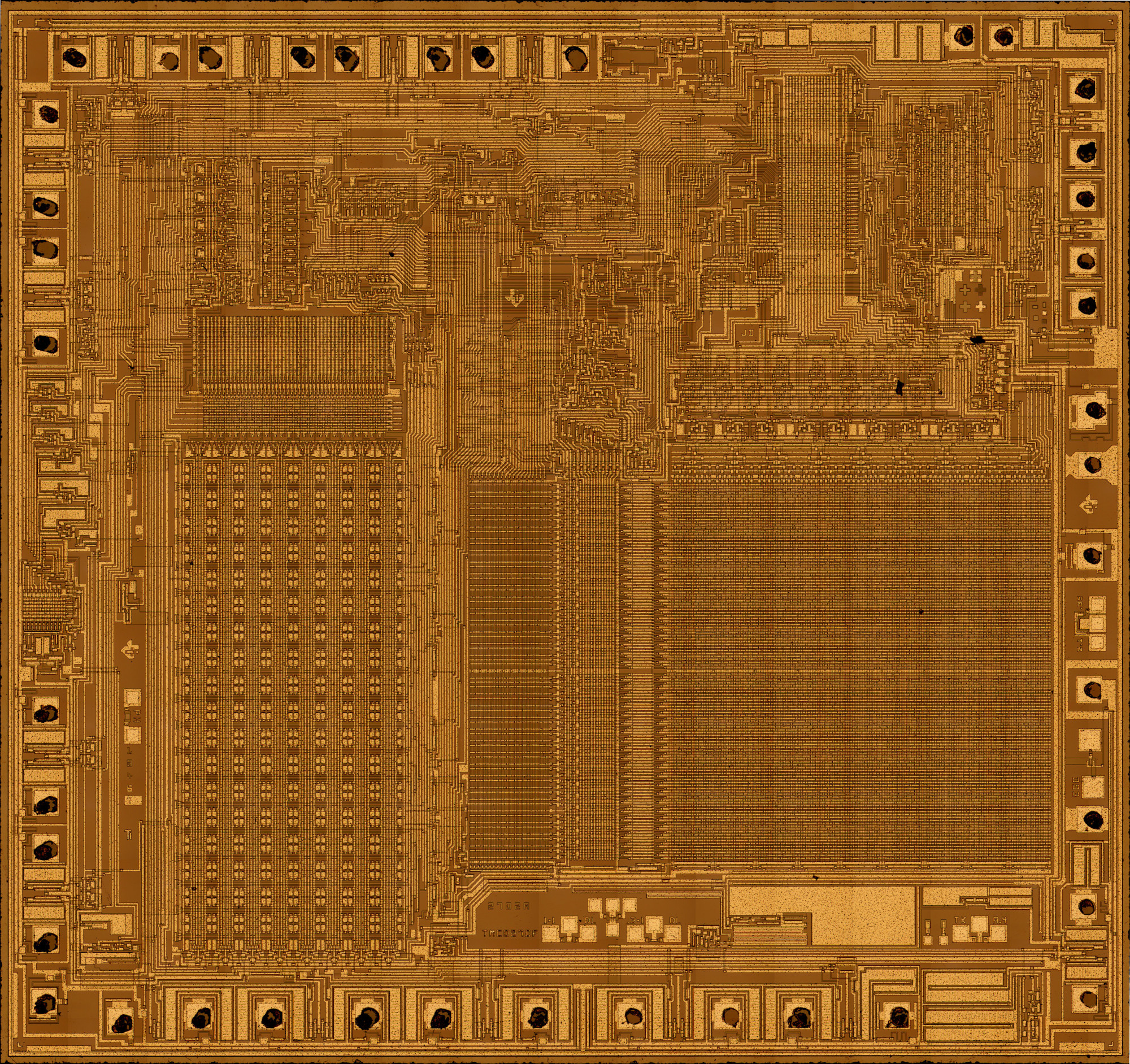

Die Photo of the
TMC0270/2702
courtesy of
Sean Riddle. |

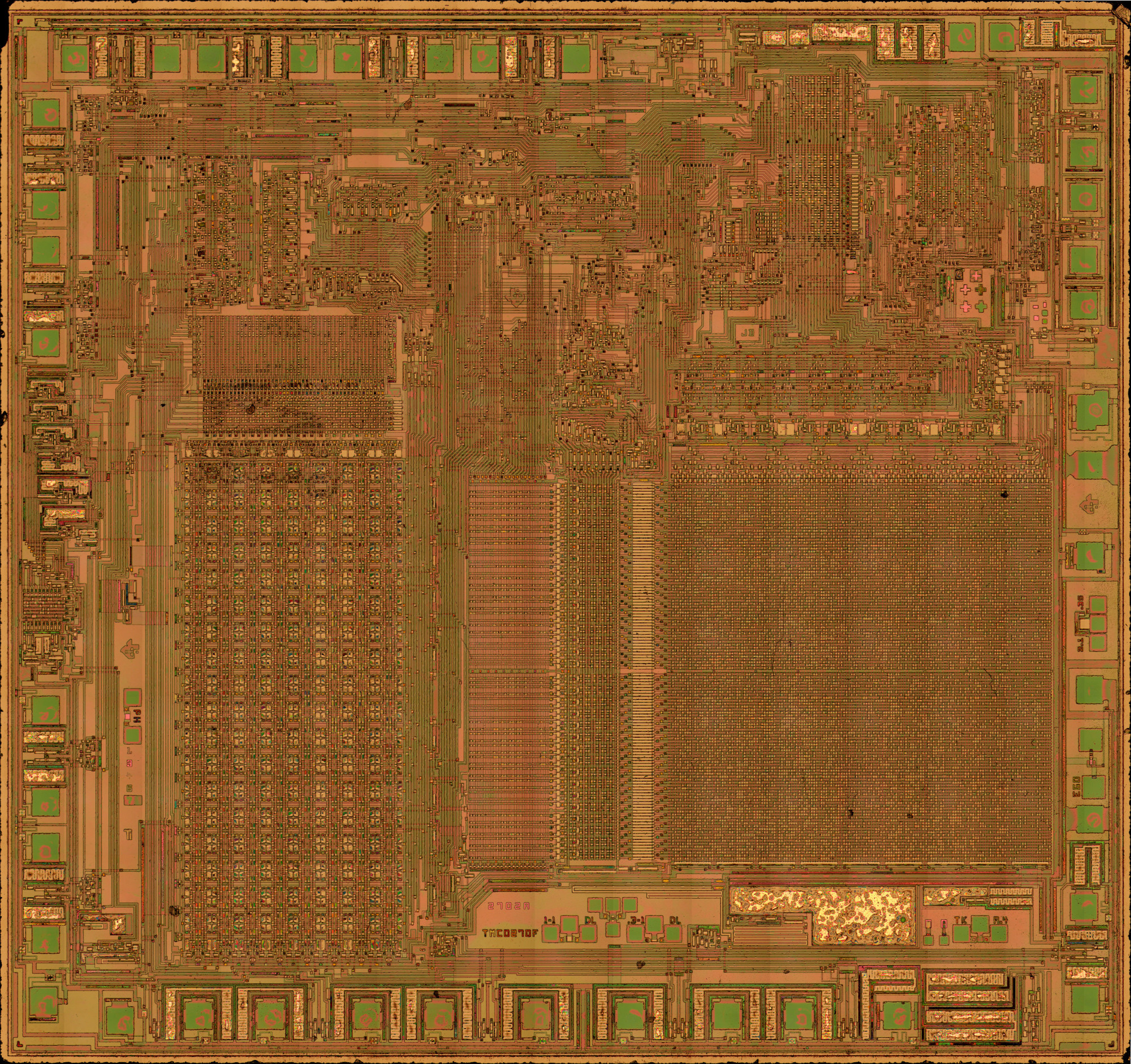

Die Photo (after acid) of the
TMC0270/2702
courtesy of
Sean Riddle. |
| Close-up view
of the TMC0270/CD2704 single-chip calculator circuit used with the Speak &
Math. PMOS Technology, 40-pin SPDIP 4-bit Microcontroller, 2,048*9 Bits Instruction ROM, 144*4 Bits Data RAM.  |

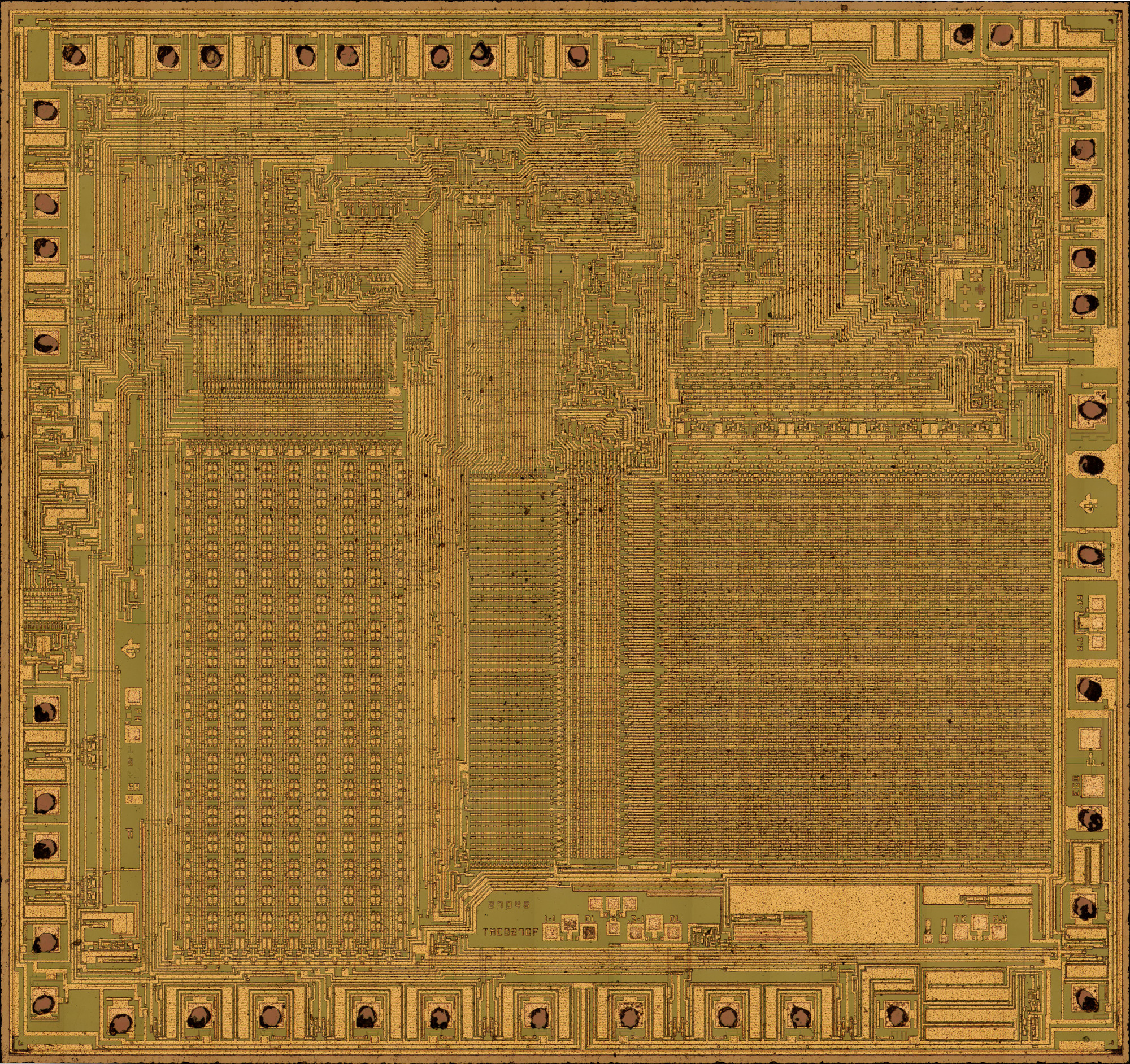

Die Photo of the
TMC0270/2704
courtesy of
Sean Riddle. |

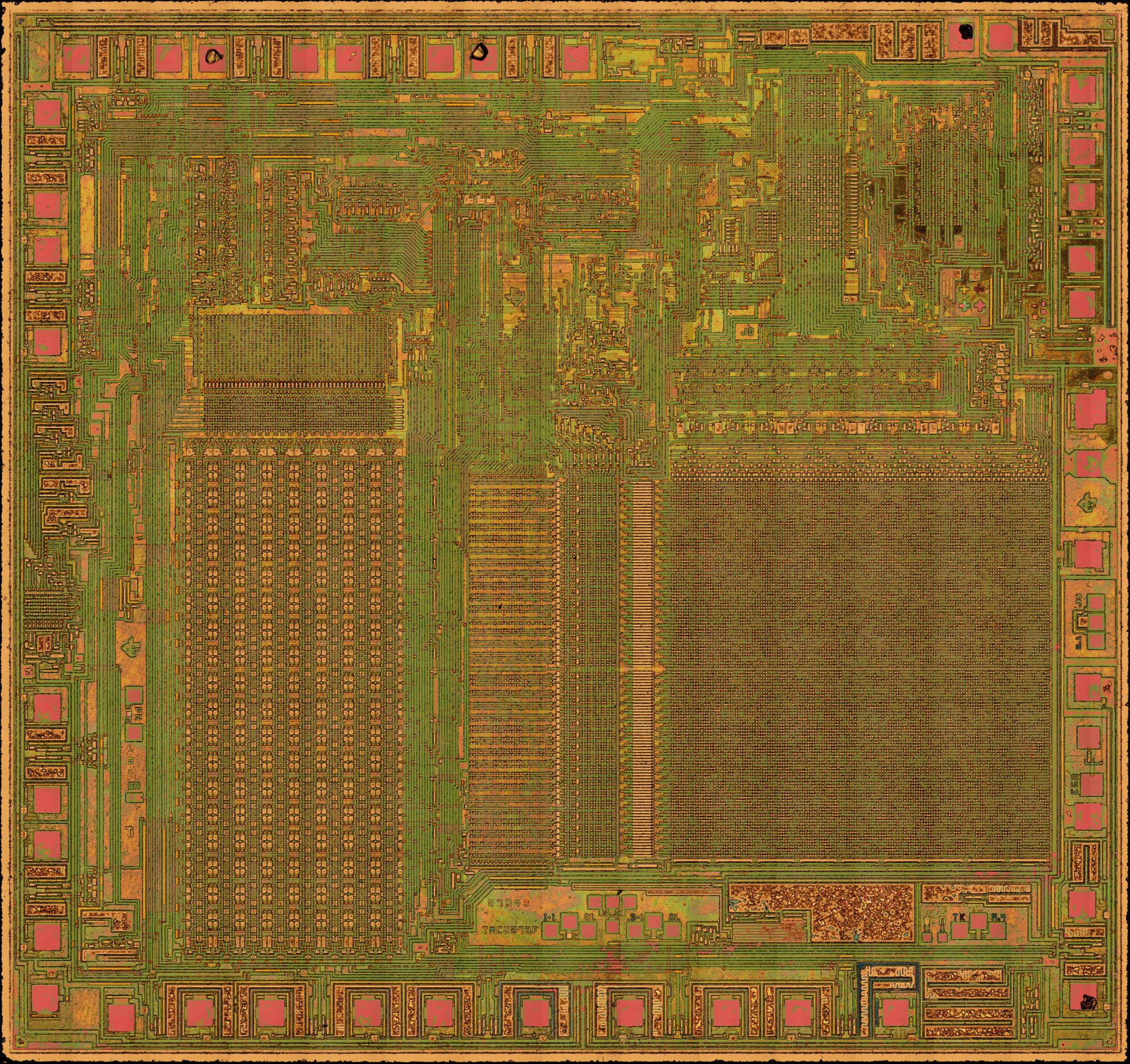

Die Photo (after acid) of the
TMC0270/2704
courtesy of
Sean Riddle. |
