Additional Pictures

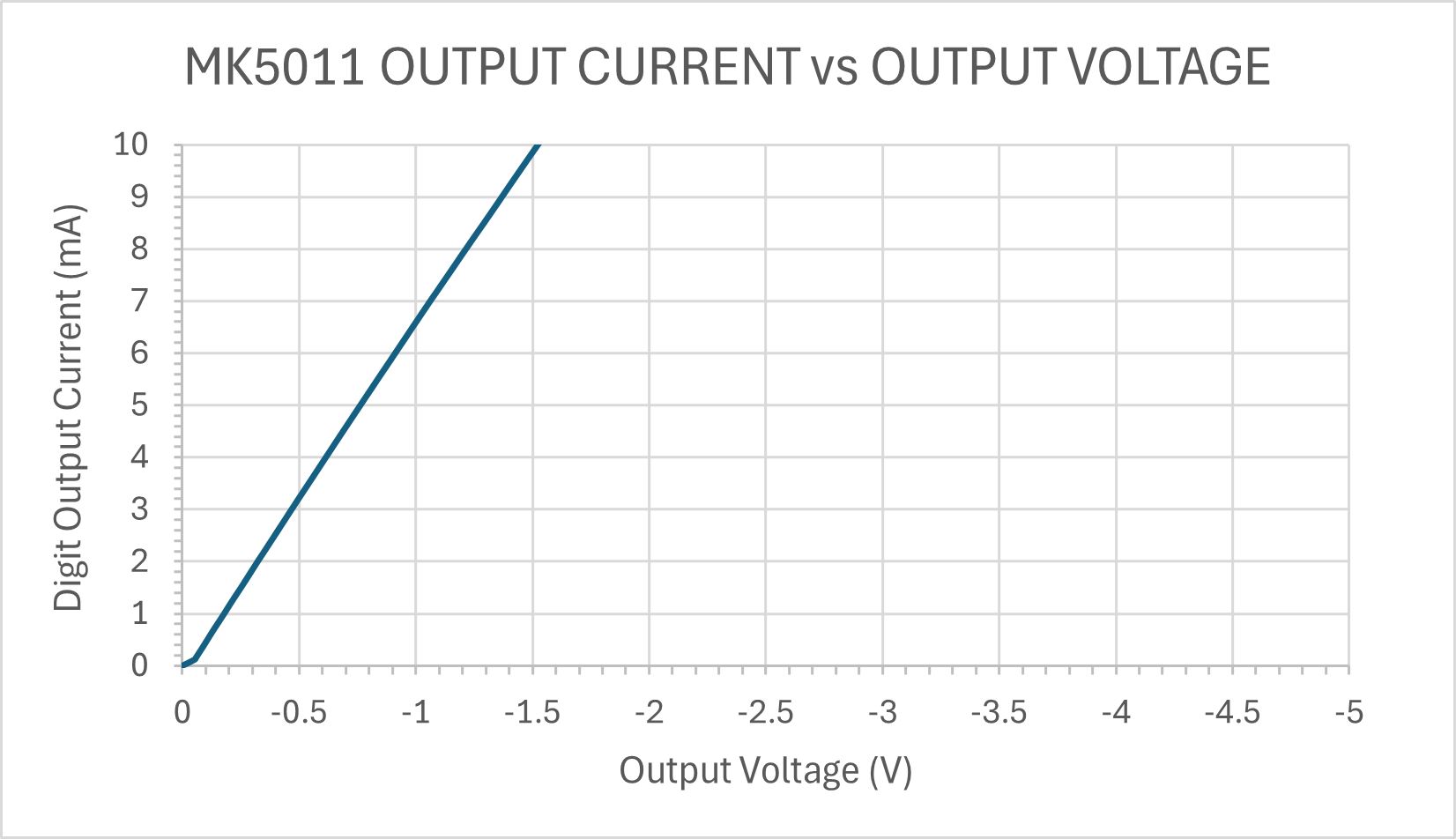

Output Current vs Output Voltage of a MK6010 Digit Output driver.
DUT: MK5011P 7306KEG @ VDD = -12 V, VGG = -24 V.

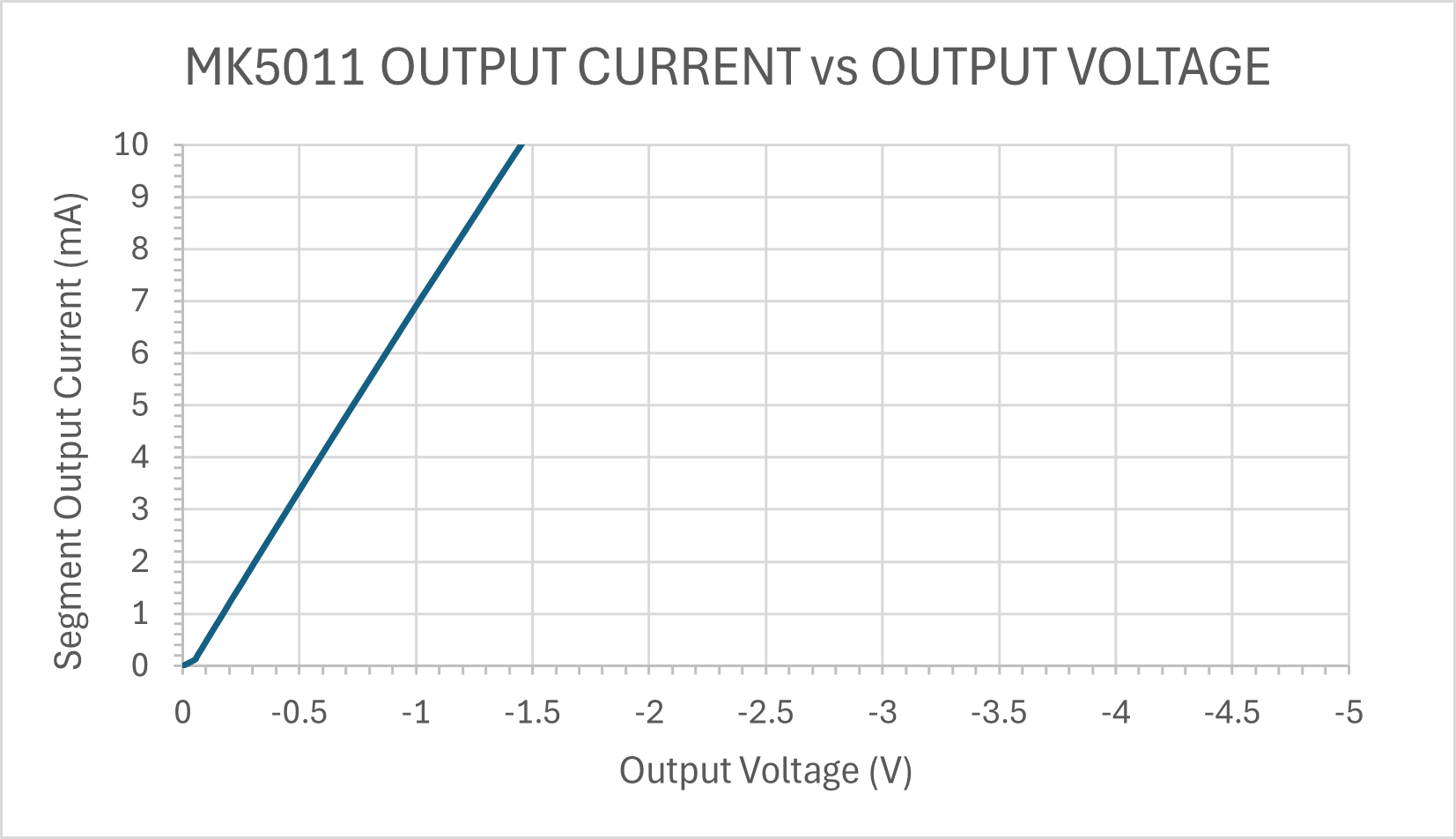

Output Current vs Output Voltage of a MK6010 Segment Output driver.
DUT: MK5011P 7306KEG @ VDD = -12 V, VGG = -24 V.


If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, April 4, 2026. No reprints without written permission.
