Additional Pictures

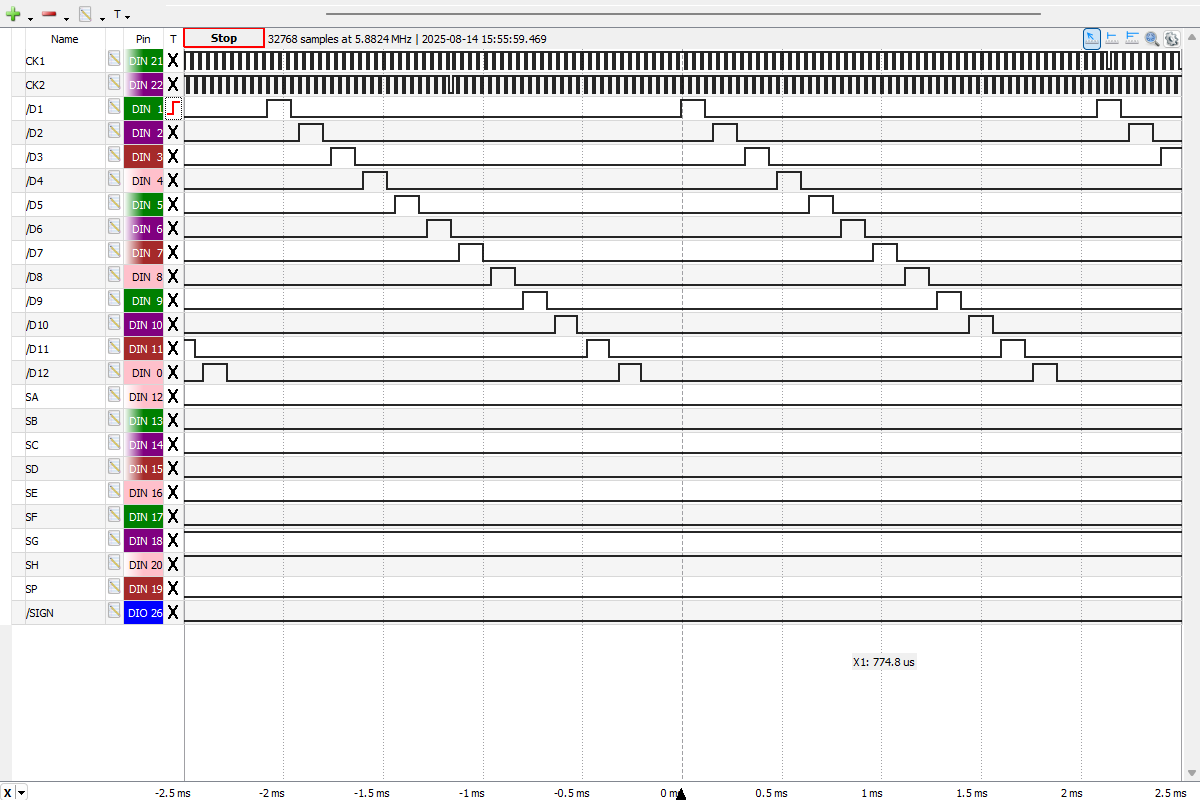

| Clock Input, Digit Output, Segment Output
and Sign Output Pins of the MK5010 during Display
Testing captured with the Digilent Digital Discovery connected to the DCM-50A Platform. MK5010 Clock Frequency at 25 kHz.  |

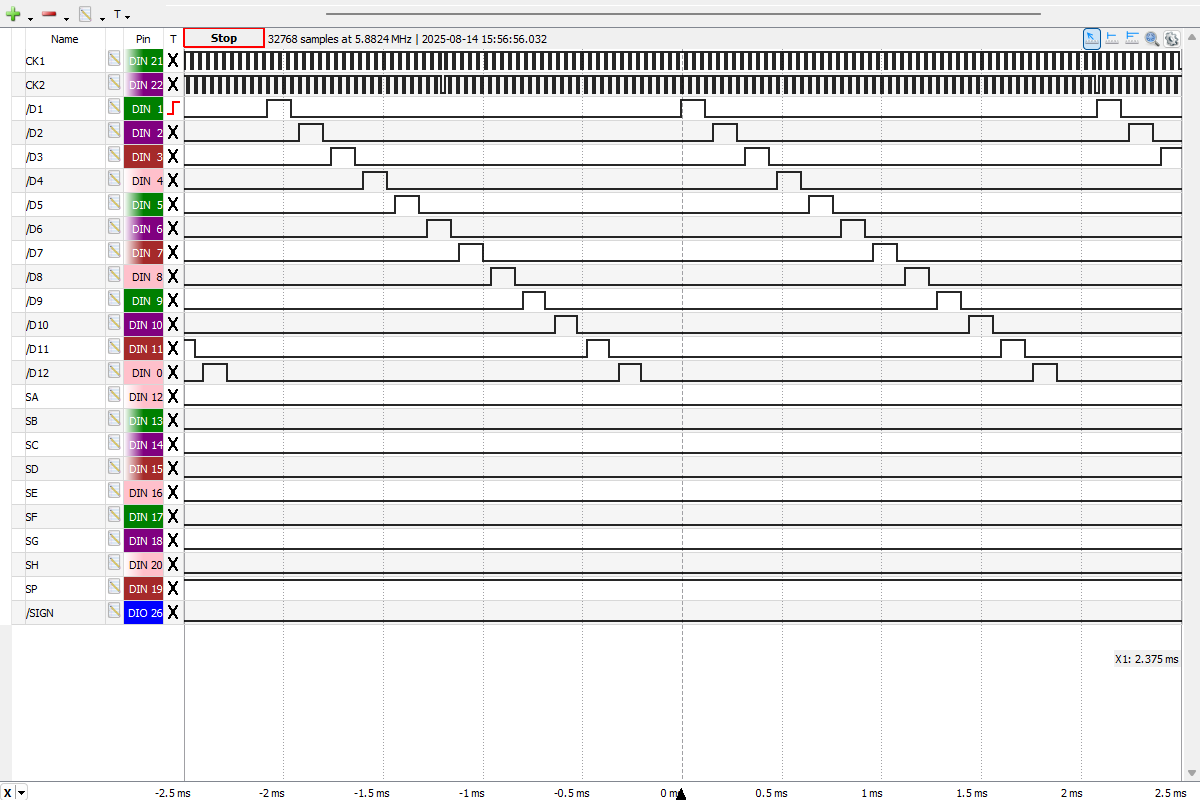

| Clock Input, Digit Output, Segment Output
and Sign Output Pins of the MK5010 during Calculating
Overflow captured with the Digilent Digital Discovery connected to the DCM-50A Platform. MK5010 Clock Frequency at 25 kHz.  |

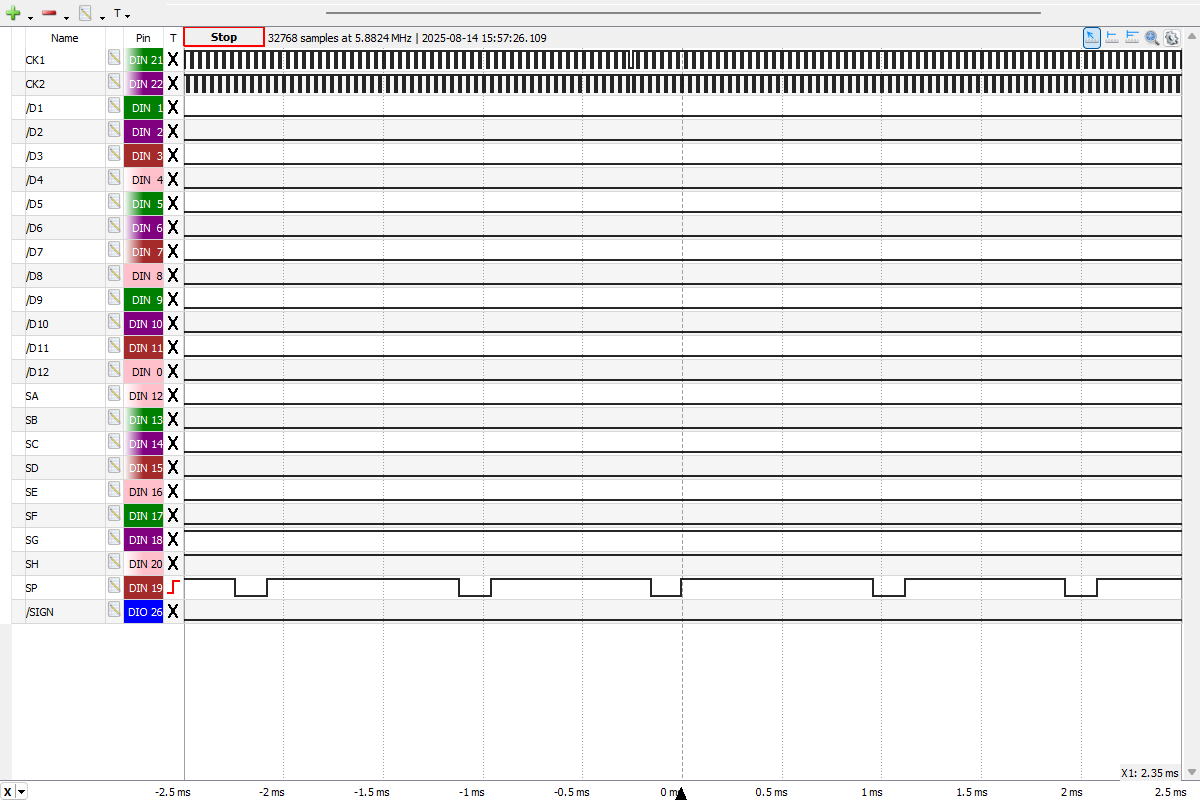

| Clock Input, Digit Output, Segment Output
and Sign Output Pins of the MK5010 during Divide
by Zero Loop captured with the Digilent Digital Discovery connected to the DCM-50A Platform. MK5010 Clock Frequency at 25 kHz.  |
