Additional Pictures

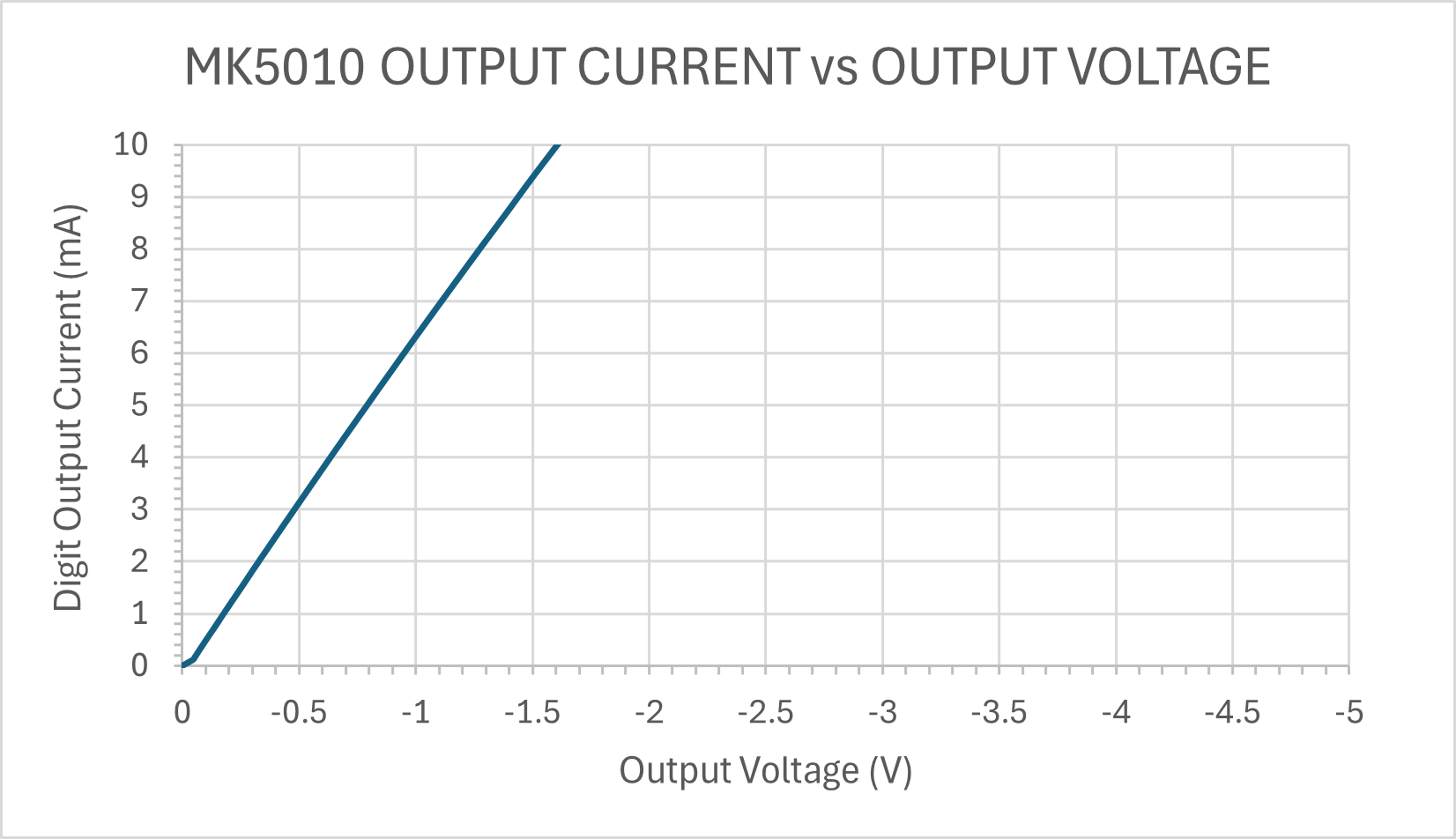

Output Current vs Output Voltage of a MK5010 Digit Output driver.
DUT: MK5010P 7246KH @ VDD = -9 V, VGG = -14 V.

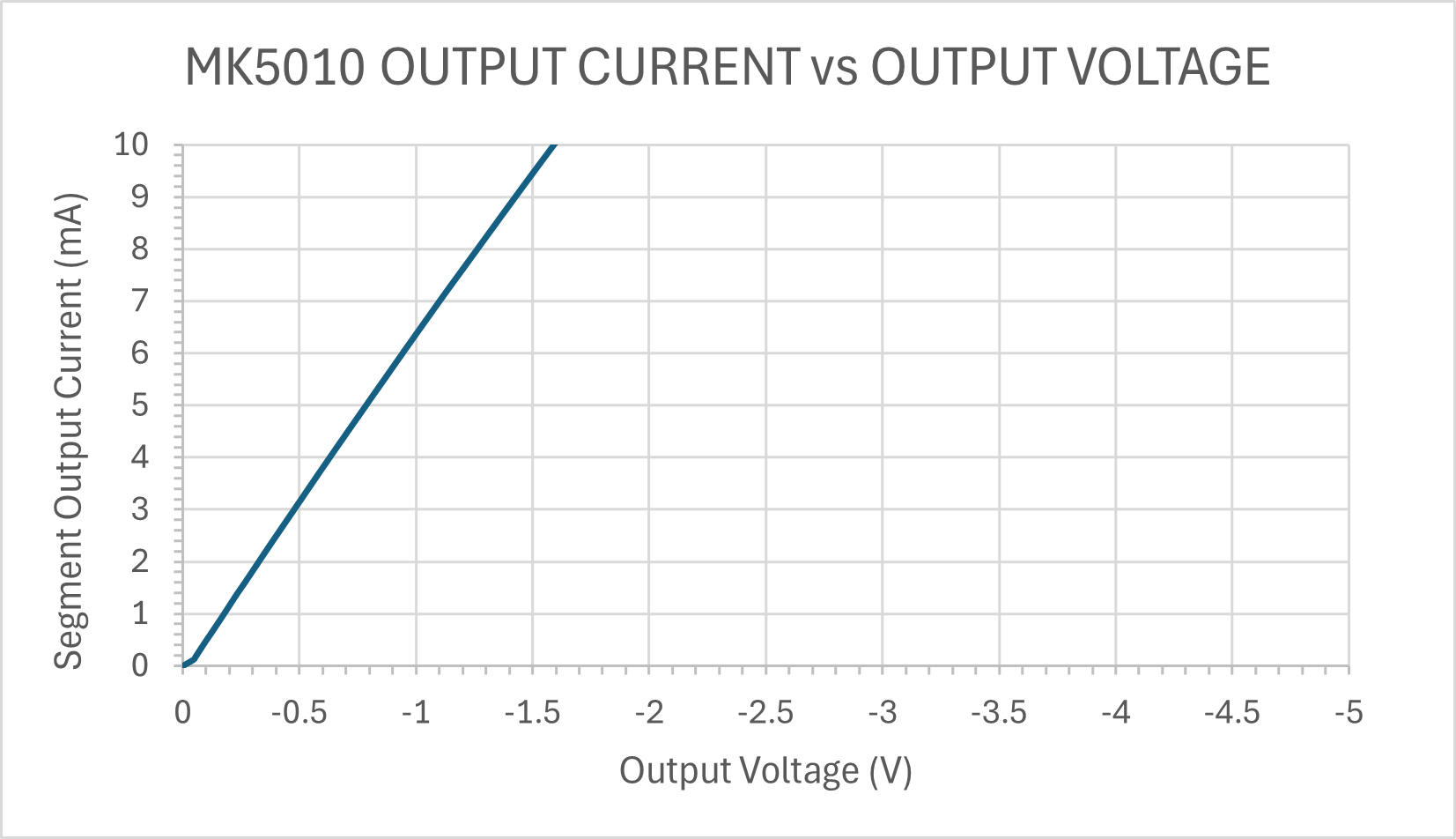

Output Current vs Output Voltage of a MK5010 Segment Output driver.
DUT: MK5010P 7246KH @ VDD = -9 V, VGG = -14 V.


If you have additions to the above article please email: joerg@datamath.org.
