| Close-up view

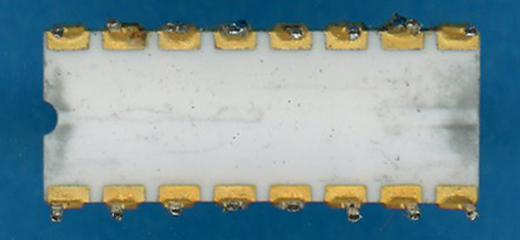

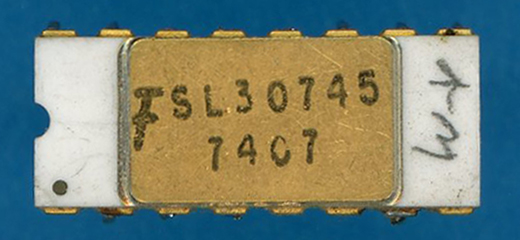

of the 3810 (SL30745) ROM from the PPS 25 Programmable Processor System used with the Cybernetic Systems Mathiputer
(Model CPD-35) manufactured in October 1975. PMOS Technology, 16-pin Ceramic Package. 256*12 Bits Instruction ROM.   |

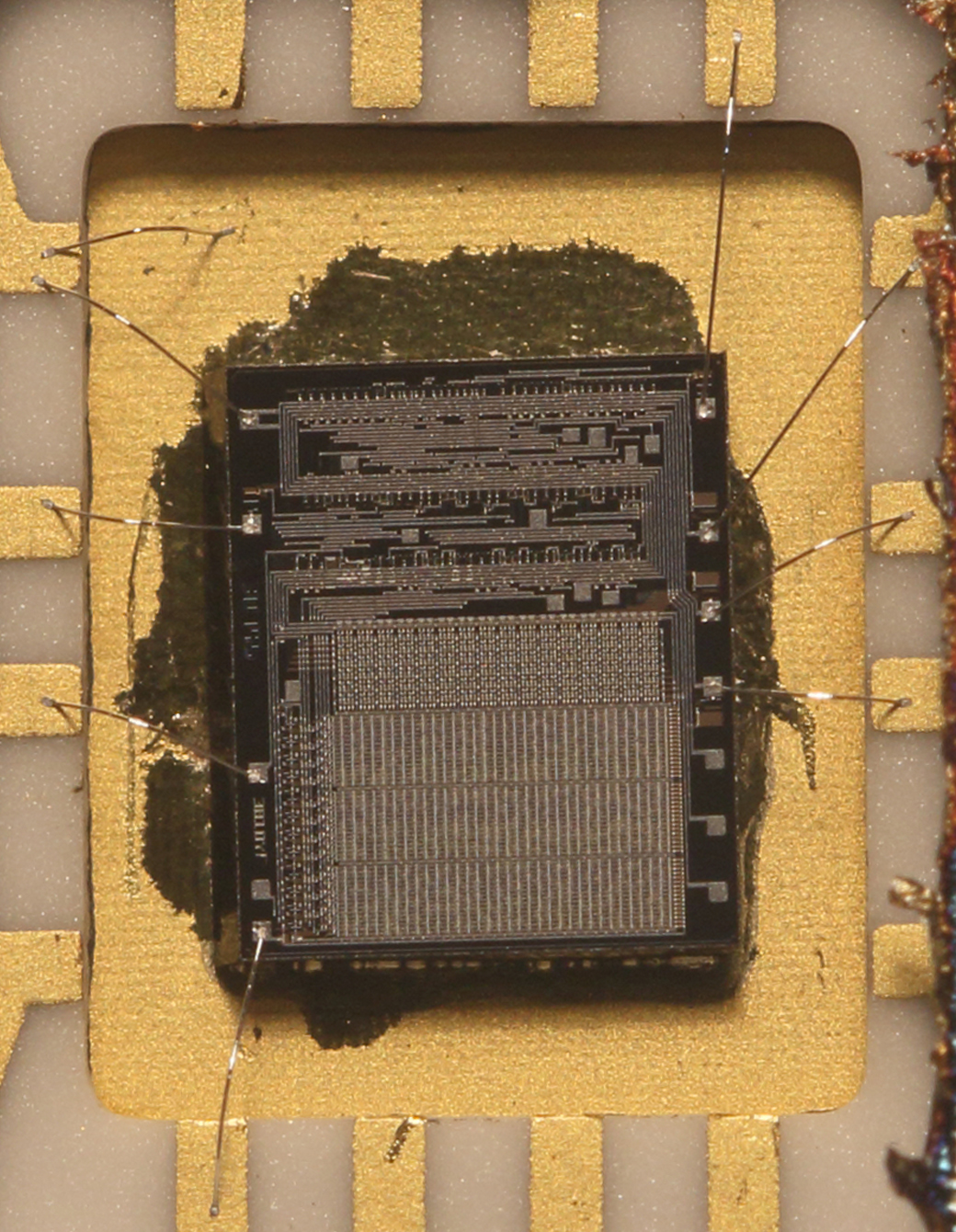

Package of the 3810 (SL30745) with its lid removed, exposing the wire bonding.
Package Pin 1 in upper-left quadrant. Image resolution: 4,800 DPI (190
pixel/mm). Photo courtesy of Sean Riddle |

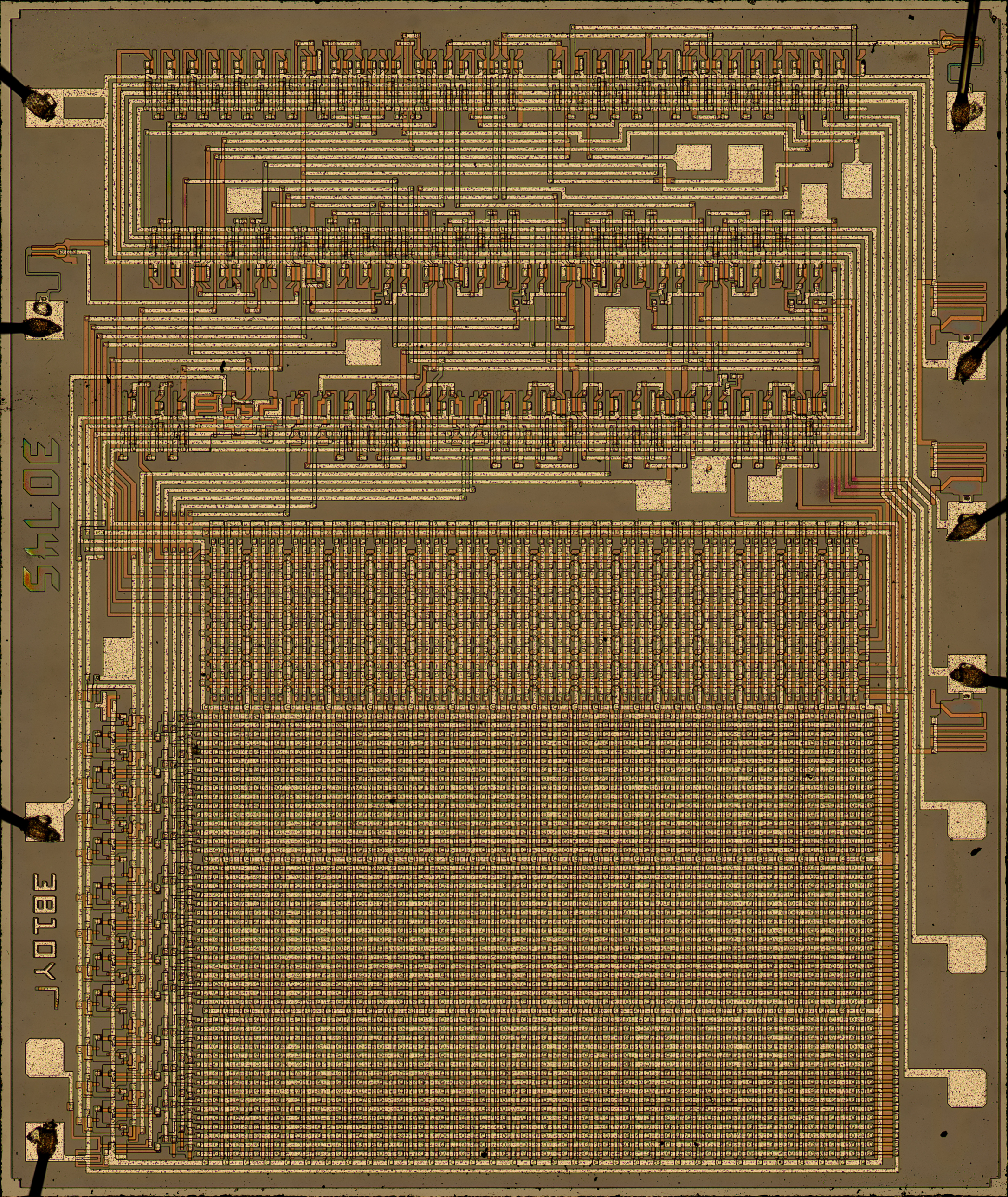

Die of the
3810 (SL30745). Bond pad 1 in upper-left quadrant. Image resolution: 19,200 DPI (760 pixel/mm. Photo courtesy of Sean Riddle |
