Additional Pictures

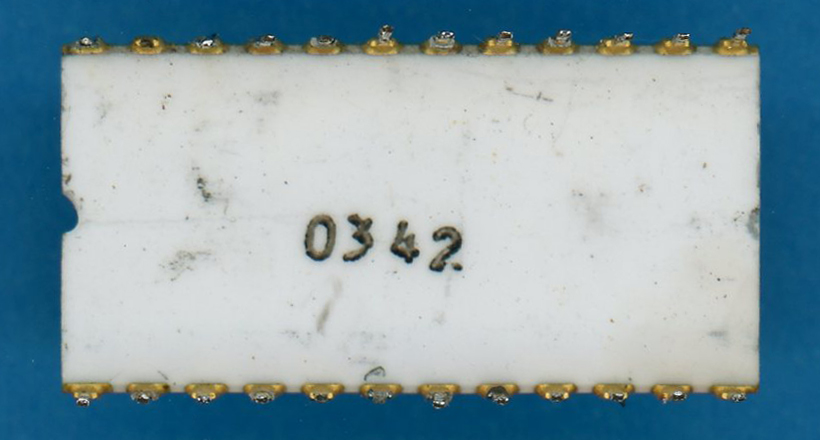

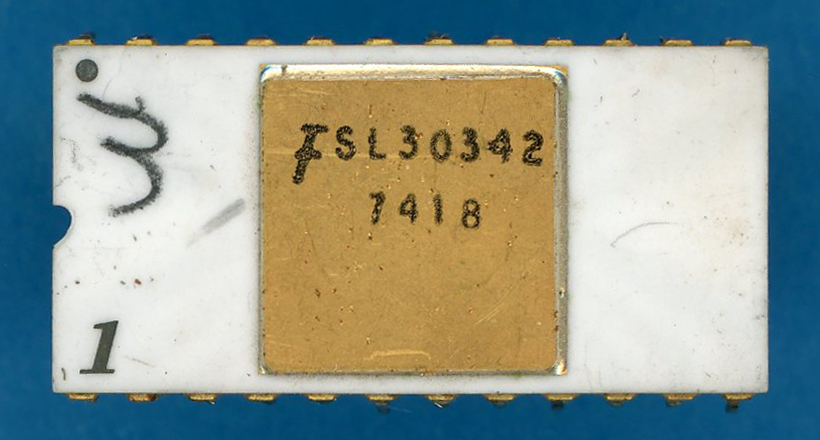

| Close-up view
of the 3806 (SL30342) Function and Timing Unit from the PPS 25 Programmable Processor System used with the Cybernetic Systems Mathiputer
(Model CPD-35) manufactured in October 1975. PMOS Technology, 24-pin Ceramic Package. Address Register, Address Adder, Branch Logic, 25 * 6 Bits Time Enable Pattern ROM and two 25*1 Bit Status SAMs.   |

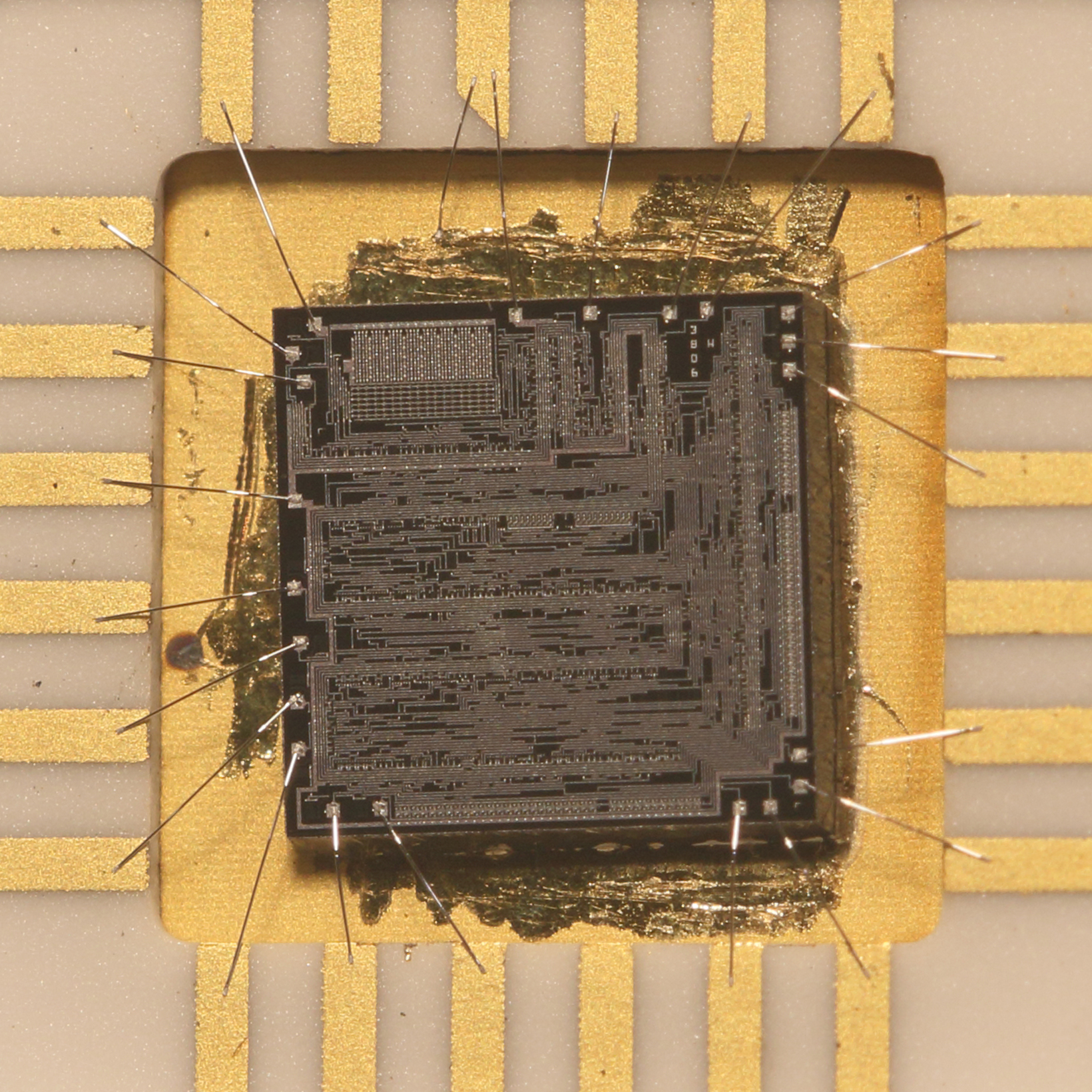

Package of the 3806 (SL30342) with its lid removed, exposing the wire bonding.
Package Pin 1 in upper-left quadrant. Image resolution: 4,800 DPI (190 pixel/mm). Photo
courtesy of Sean Riddle |

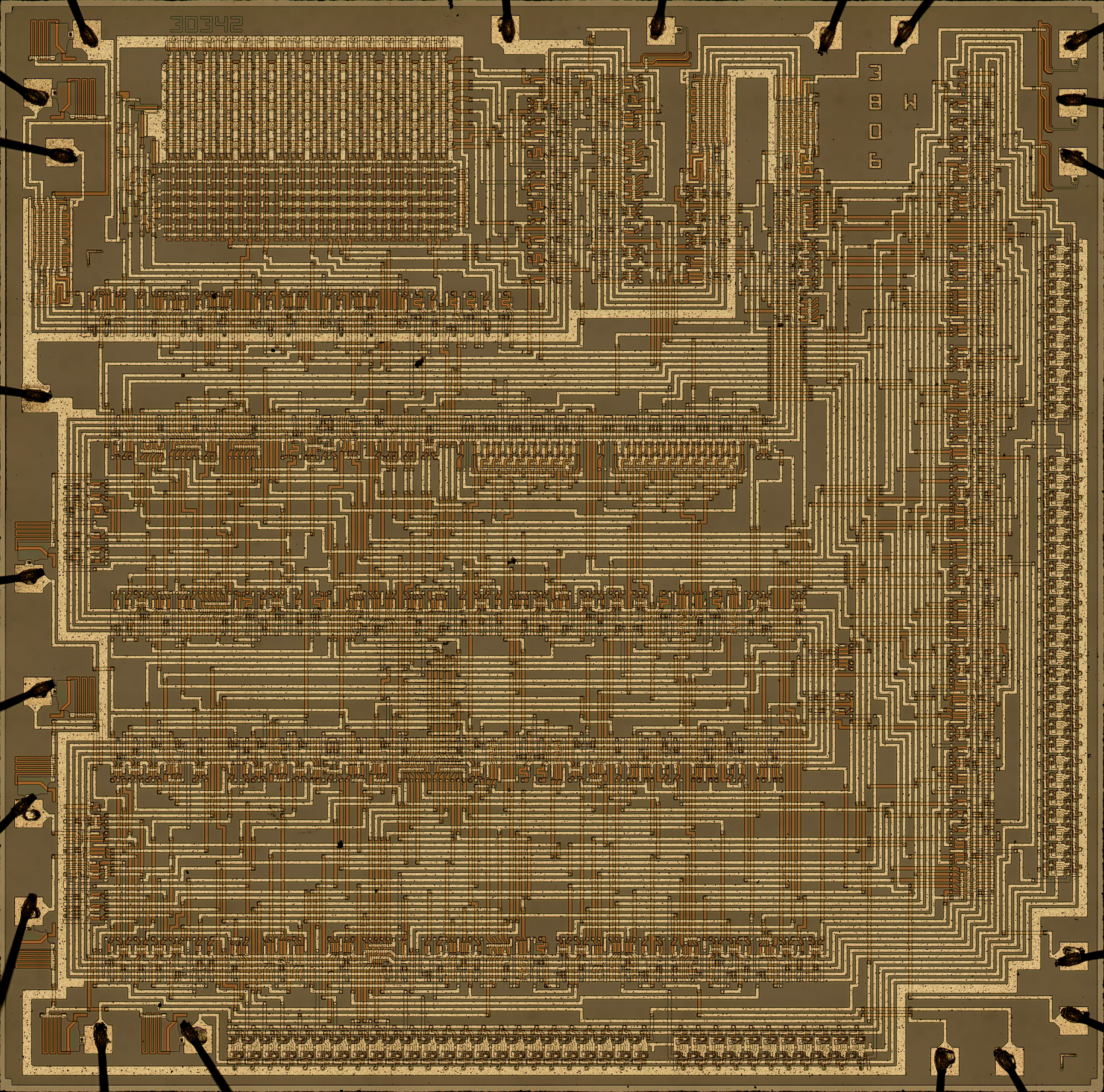

Die of the
3806 (SL30342). Bond pad 1 in upper-left quadrant. Image resolution: 19,200 DPI (760 pixel/mm). Photo courtesy of
Sean Riddle |
