| Close-up view

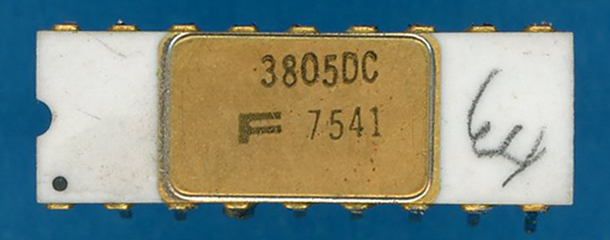

of the 3805 Arithmetic Chip from the PPS 25 Programmable Processor System used with the Cybernetic Systems Mathiputer
(Model CPD-35) manufactured in October 1975. PMOS Technology, 18-pin Ceramic Package. Adder-Subtractor and 25*4 Bits Data SAM.   |

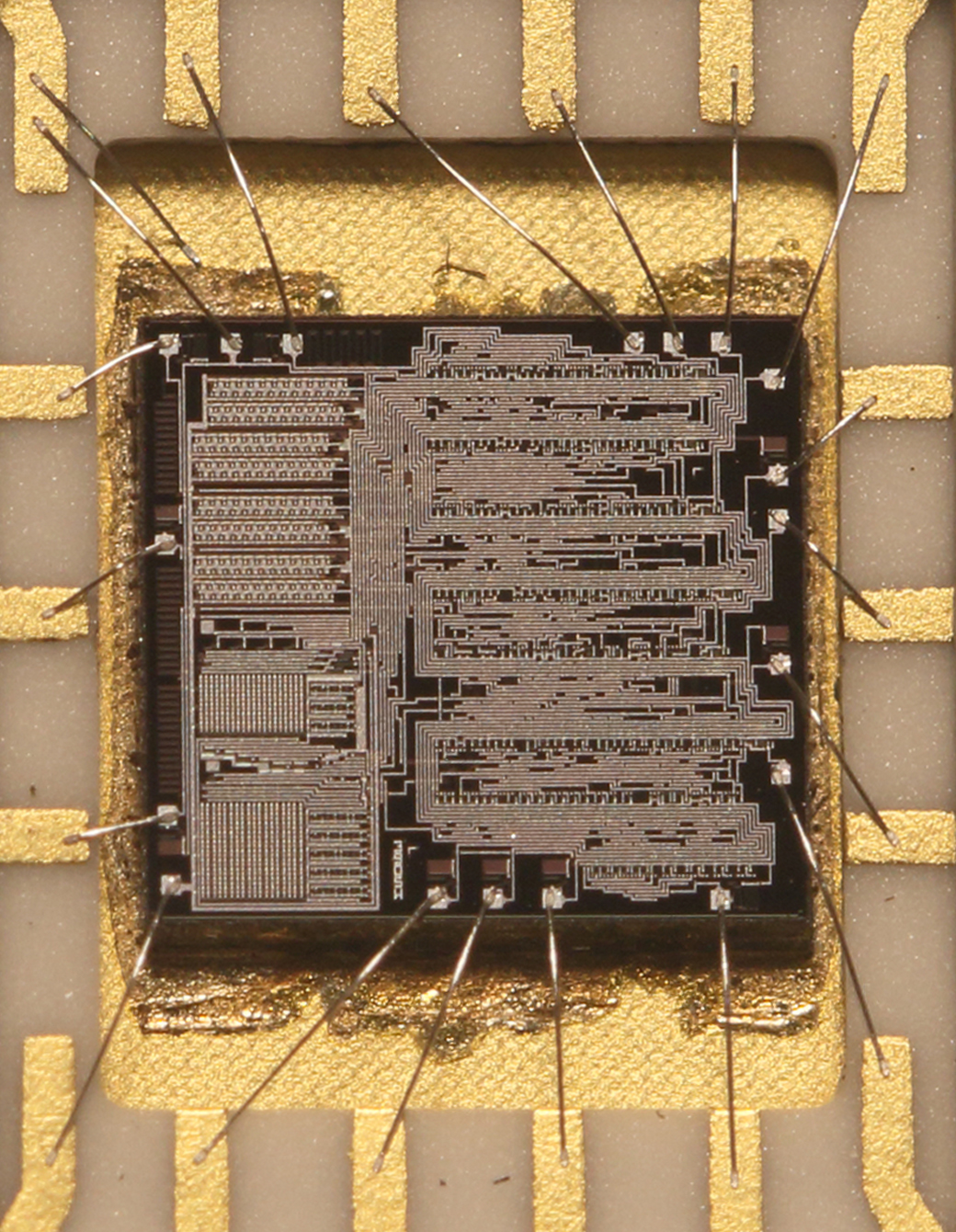

Package of the 3805 with its lid removed, exposing the wire bonding.
Package Pin 1 in upper-left quadrant. Image resolution: 4,800 DPI (190 pixel/mm). Photo
courtesy of Sean Riddle |

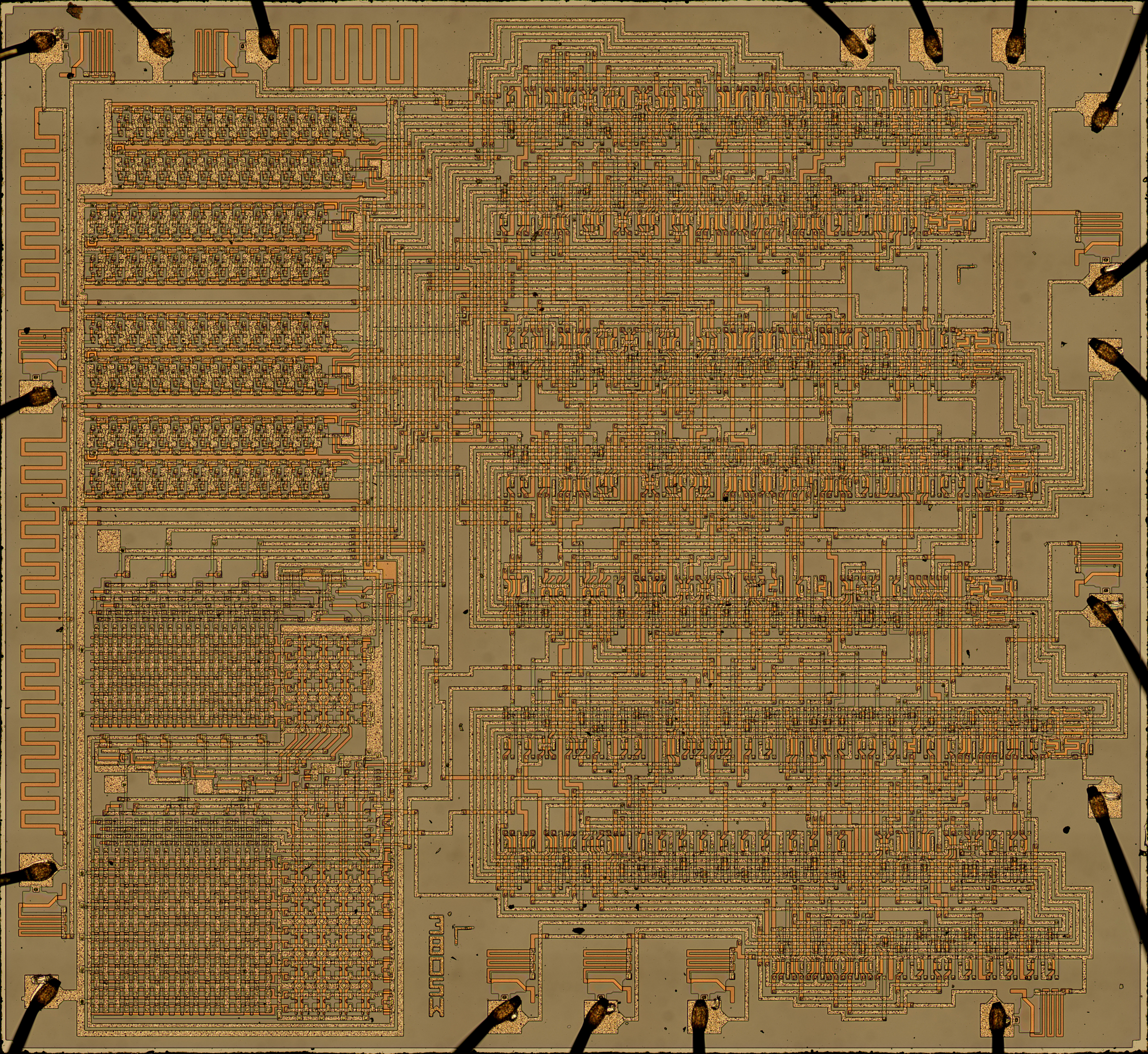

Die of the
3805. Bond pad 1 in upper-left quadrant. Image resolution: 19,200 DPI (760 pixel/mm). Photo courtesy of
Sean Riddle |
