Additional Pictures
| This TI-1250 Version 1 was
factory repaired
in December 1975 by Texas Instruments in Lubbock, TX (Date code 505 » week 50 year 1975).
|

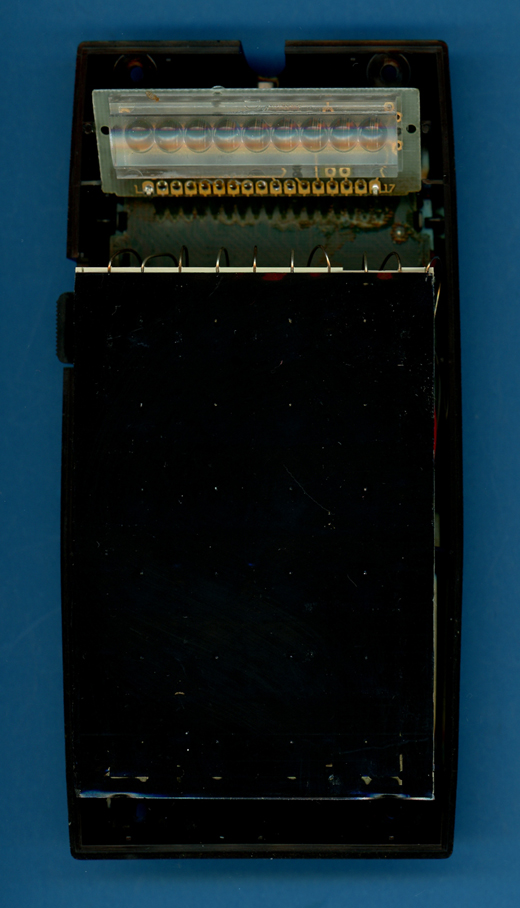

| The TI-1250
Version 1 repaired
in December 1975 in Lubbock, TX with the front part of its housing removed.  |

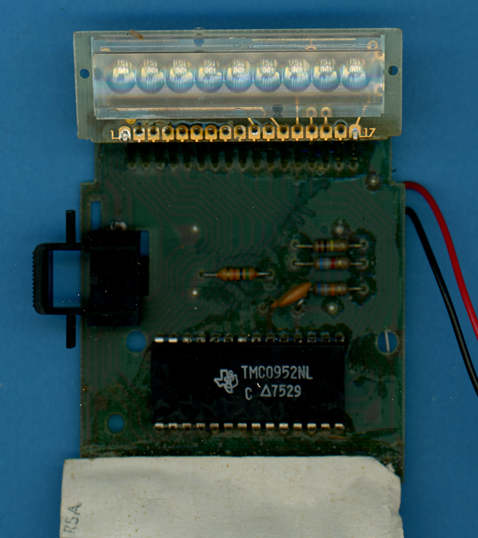

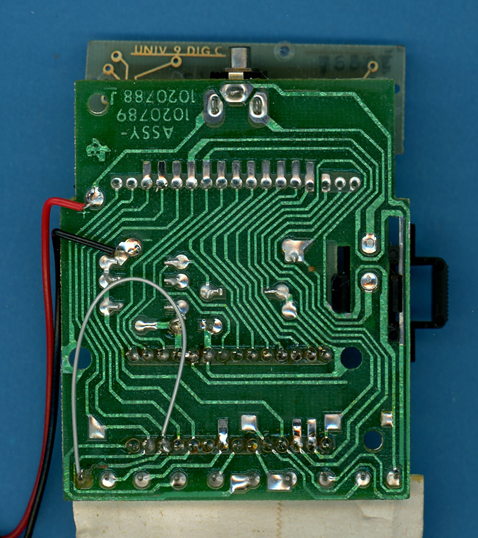

| The printed circuit board
(PCB) Type 1 of the featured TI-1250 is centered around a TMS0952 single-chip calculator circuit.
|
| Close-up view of the
TMS0952 packaged in a 28-pin DIP (Dual In-line Package).  |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, June 29, 2021. No reprints without written permission.
