Additional Pictures

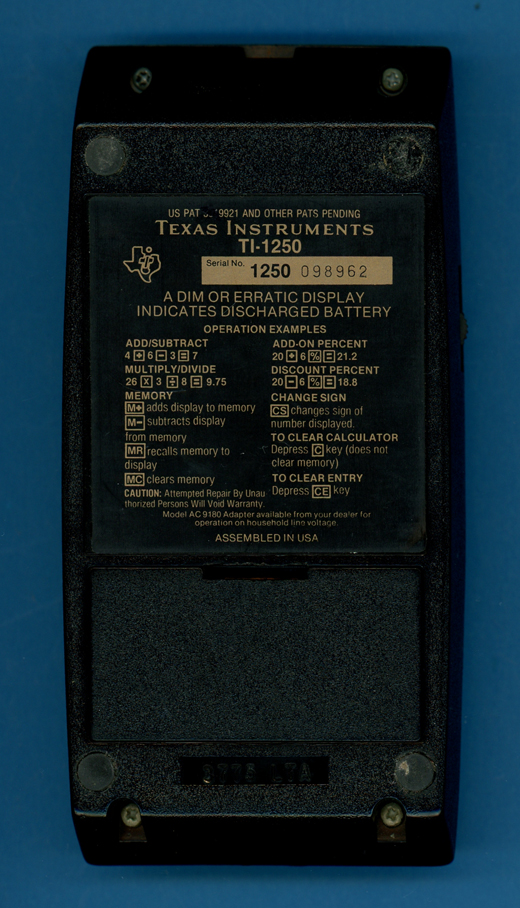

This TI-1250 Version 2 was manufactured in September 1975 by
Texas Instruments in Lubbock, TX (Date code 3775 LTA » week 37 year 1975).

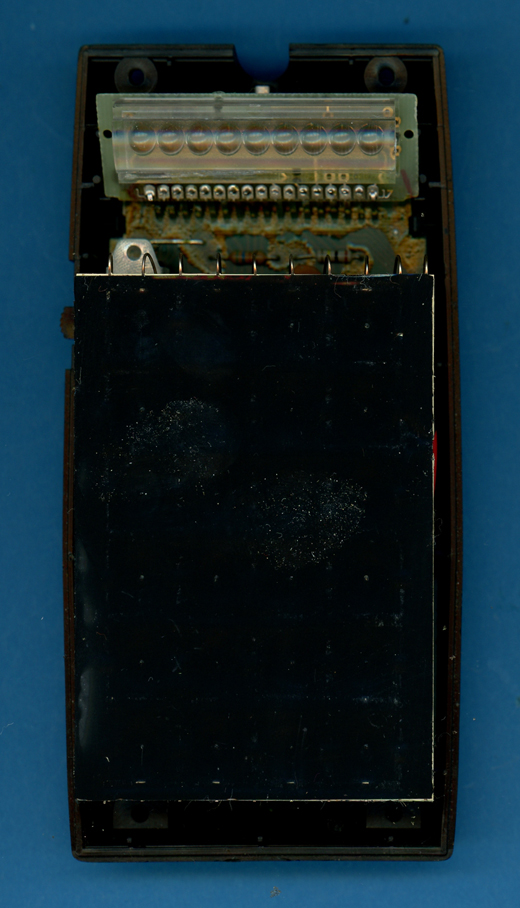

The TI-1250 Version 2 manufactured in September 1975 in Lubbock, TX
with the front part of its housing removed.

The printed circuit board (PCB) Type 2 of the featured TI-1250
is centered around a TMS0952 single-chip calculator circuit.

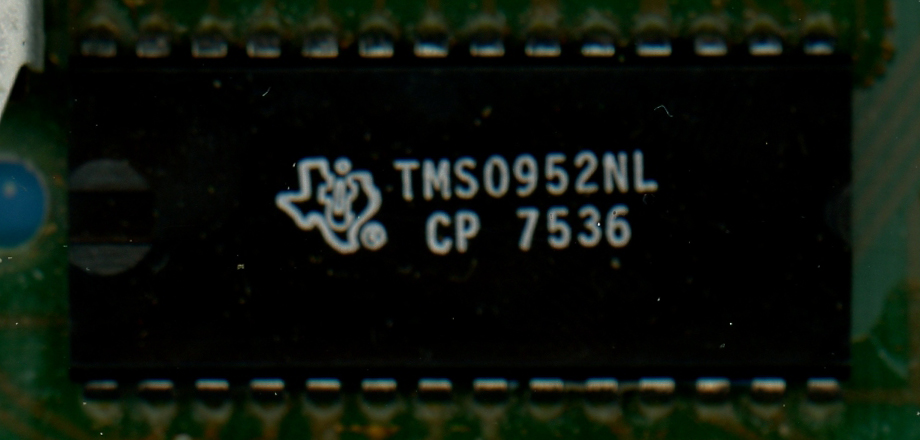

Close-up view of the TMS0952 packaged in a
28-pin DIP (Dual In-line Package).


If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, June 28, 2021. No reprints without written permission.
