Additional Pictures

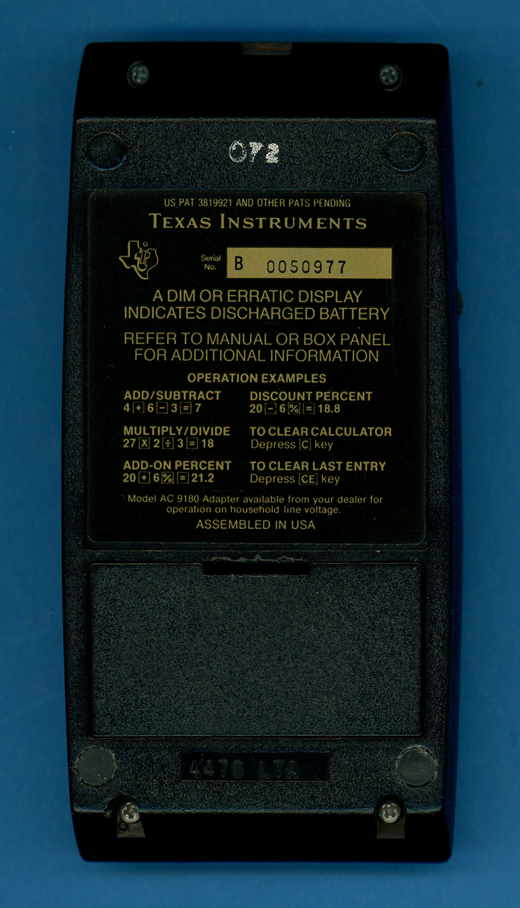

This TI-1200 Version 3 was manufactured in October 1976 by
Texas Instruments in Lubbock, TX (Date code 4476 LTA » week 44 year 1976).

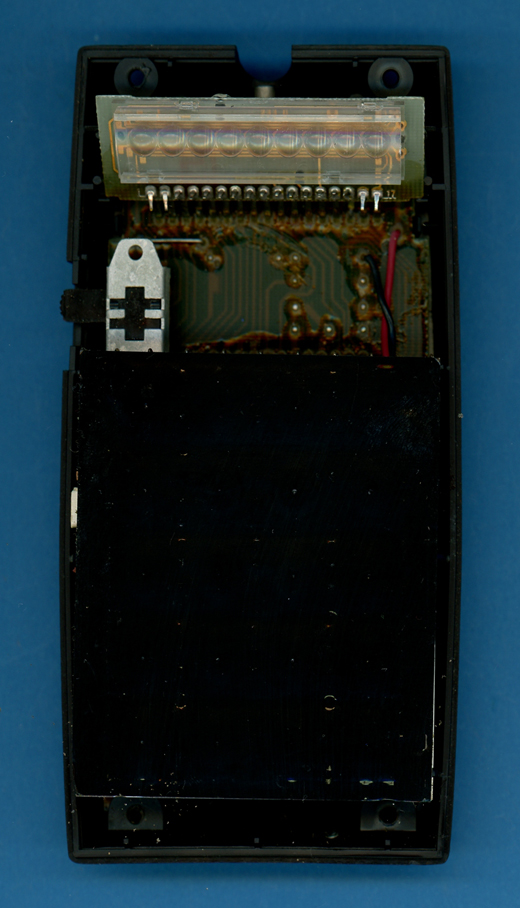

The TI-1200 Version 3 manufactured in October 1976 in Lubbock, TX
with the front part of its housing removed.

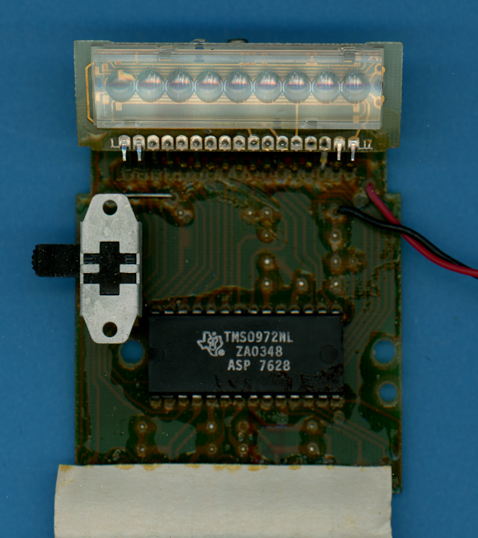

The printed circuit board (PCB) Type 3 of the featured TI-1200
is centered around a TMS0972 single-chip calculator circuit.

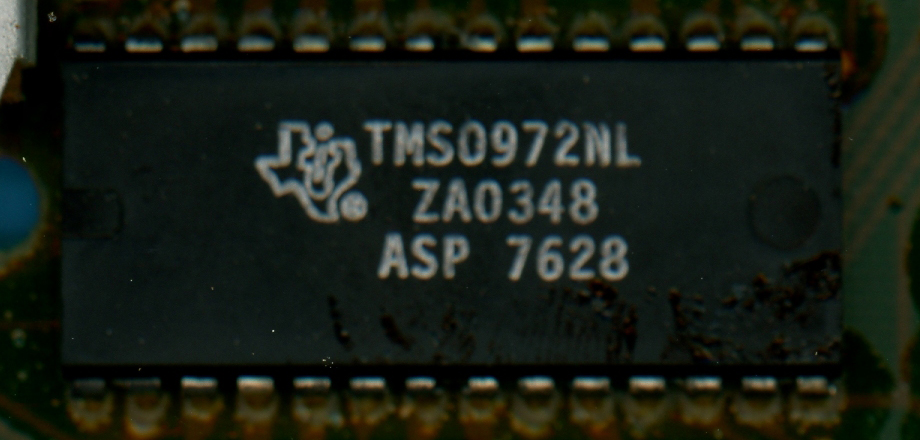

Close-up view of the TMS0972 packaged in a
28-pin DIP (Dual In-line Package).


If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, May 31, 2021. No reprints without written permission.
