Additional Pictures
The ABLE calculator in its package. |

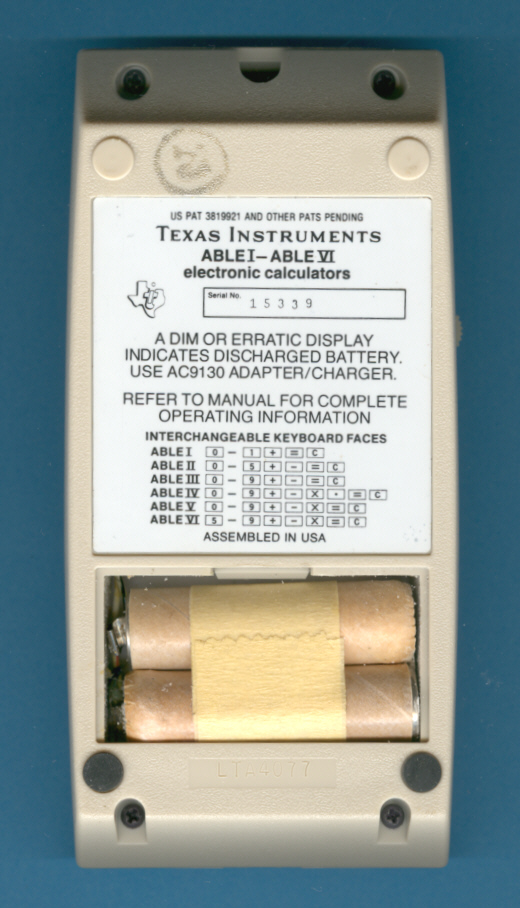

The
backside of the calculator housing with the
unusual NiCd batteries instead the standard 9V block battery. |
The
six restricted keyboards are labelled ABLE-I to
ABLE-VI. |
|

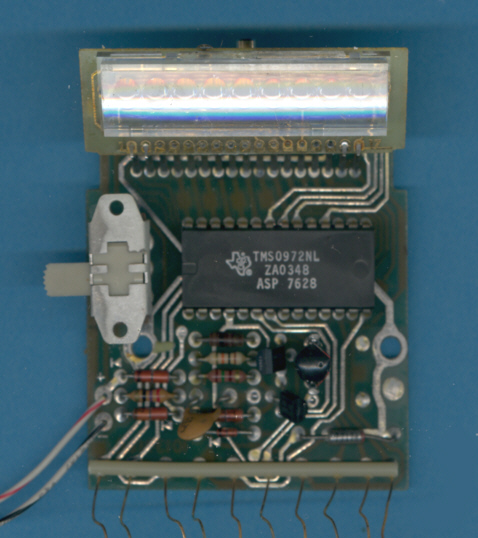

The printed circuit board
(PCB) of the ABLE makes use of the TMS0972 calculator chip and a unique power supply circuit. |
