Additional Pictures

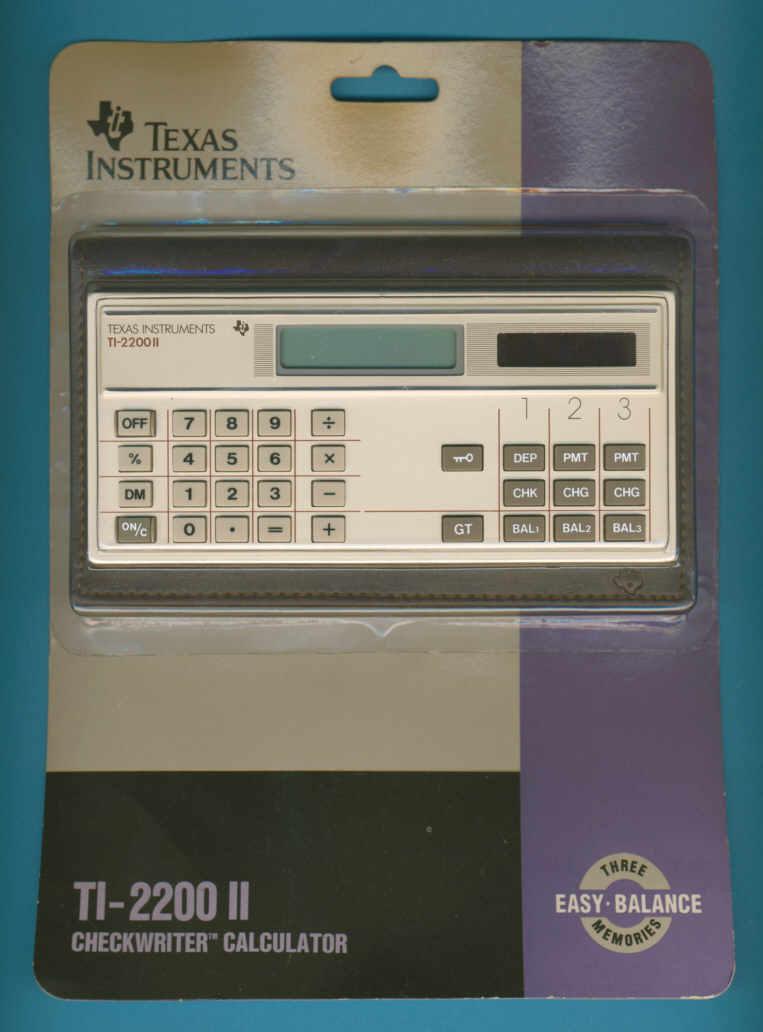

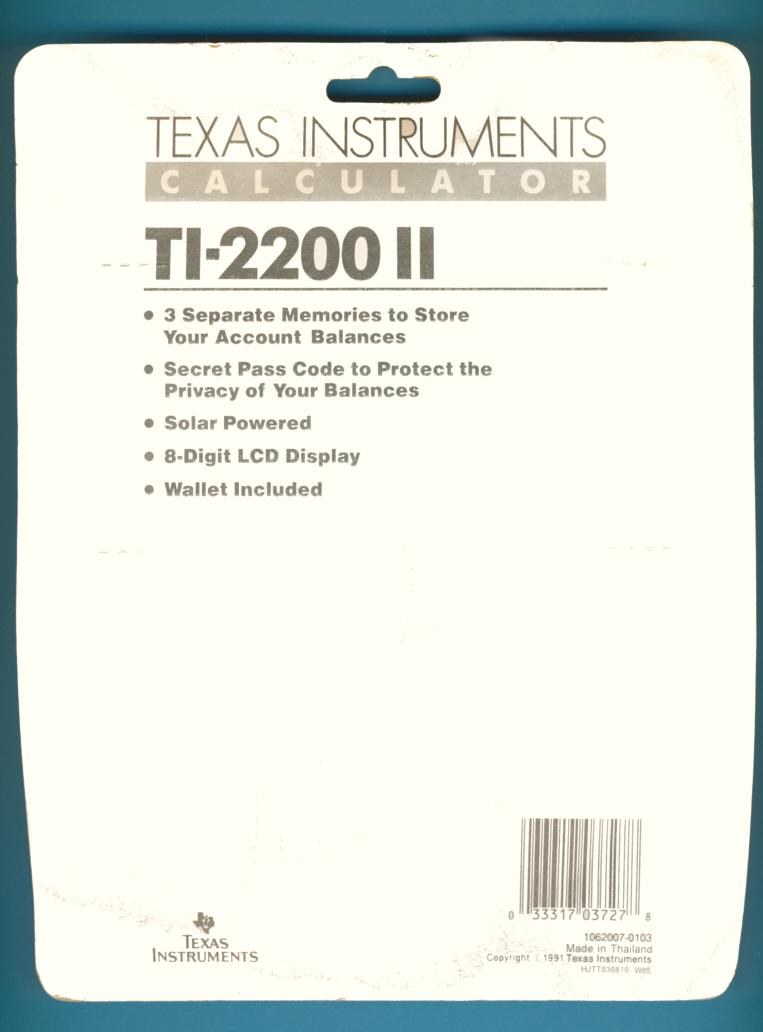

The sales
box of the TI-2200 II CheckWriter sold around 1995
in the US.  |
|

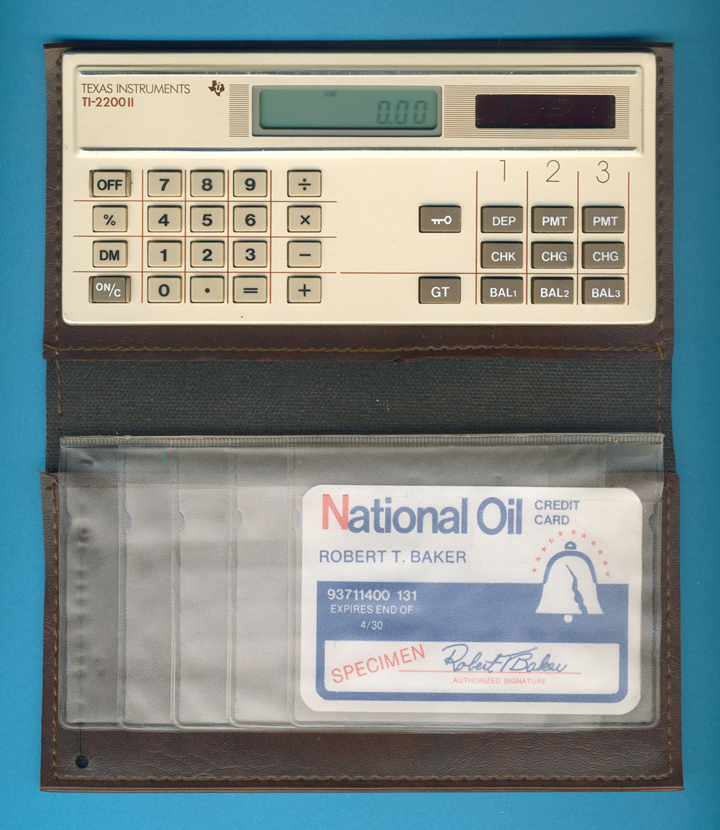

The
TI-2200 II CheckWriter in its
sleeve with holder for a checkbook and credit cards. |
|

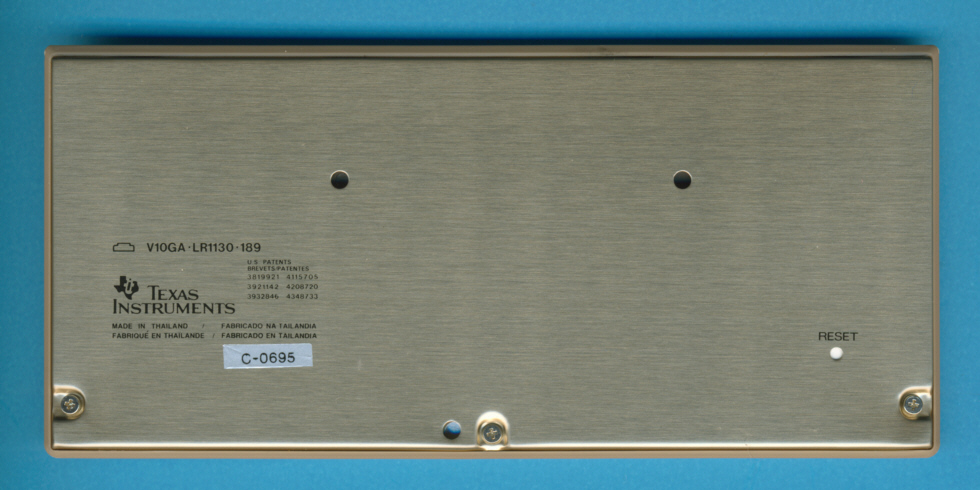

| This TI-2200 II CheckWriter was
manufactured in June 1995 by Compal Electronics in Thailand (Date code C-0695 » mth 06 yr 1995).
|
|

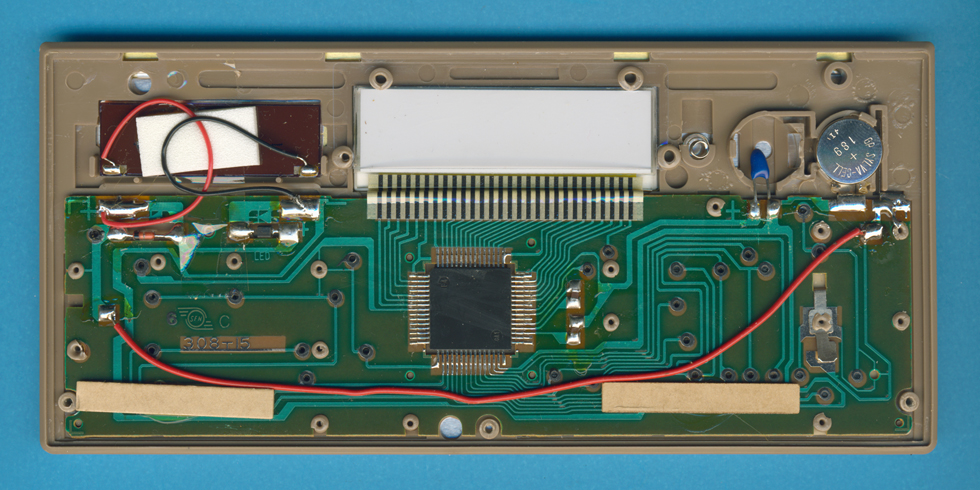

| The printed circuit board
(PCB) of the TI-2200 II manufactured in 1995
doesn't reveal type and manufacturer of its single-chip calculator circuit but we are almost positive to spot a Toshiba T7752S.
|
|
Close-up
view of the Toshiba T7752S single-chip calculator
circuit. |

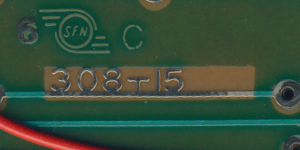

Close-up view of the PCB-Mark of a TI-2200 II. |
