Additional Pictures



The sales box of the TI-1788 shows the calculator in its calculator mode.

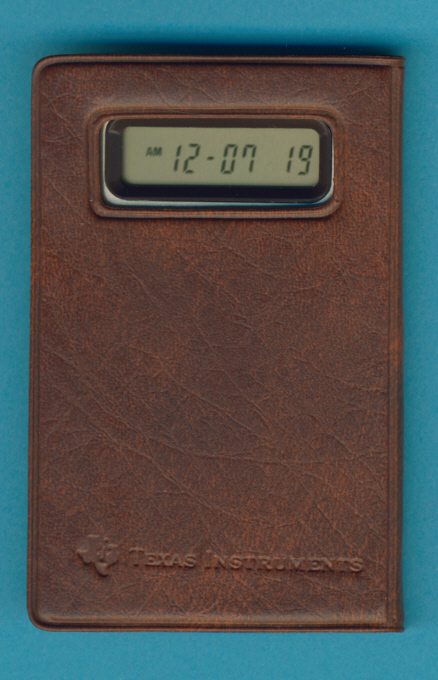

The TI-1788 in its wallet
clock mode activated.

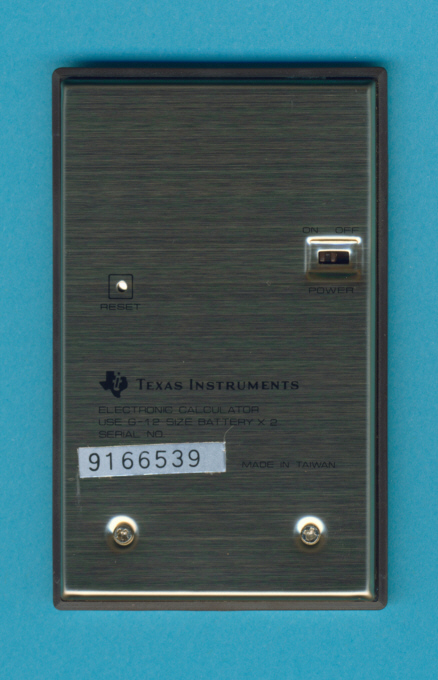

Please notice the unusual position of the
ON-/OFF-switch of the TI-1788.

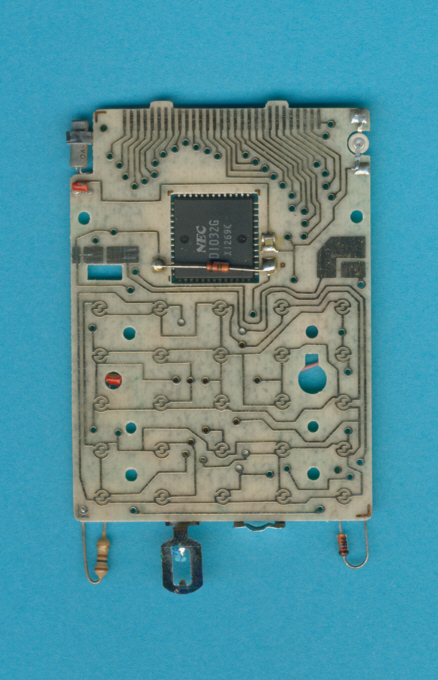

The printed circuit board (PCB) of the TI-1788 is centered around
a NEC uPD1032G single-chip calculator circuit.

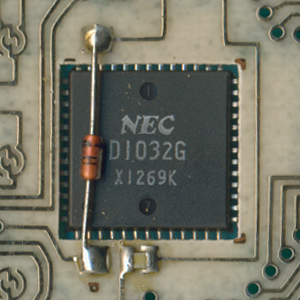

Close-up view of the NEC uPD1032G single-chip calculator circuit.

Close-up view of the PCB-Mark of a TI-1788.
