Additional Pictures
|
This TI-1706+ was
manufactured in November 1993 by Nam Tai Electronics in China (Date code N-1193 » mth 11 yr 1993).
|
| The printed circuit board
(PCB) of the first TI-1706+ is centered around an unknown single-chip calculator circuit.
|

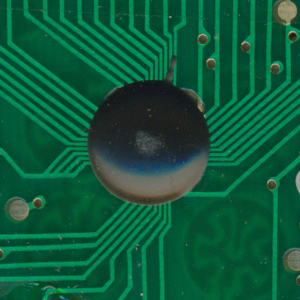

Close-up view of the unknown single-chip calculator
circuit. |

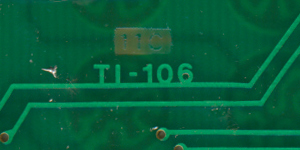

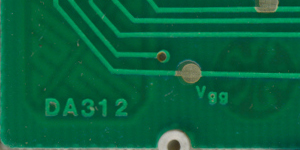

Close-up view of the PCB-Marks
of the TI-1706+.  |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, February 6, 2010. No reprints without written permission.
