Additional Pictures

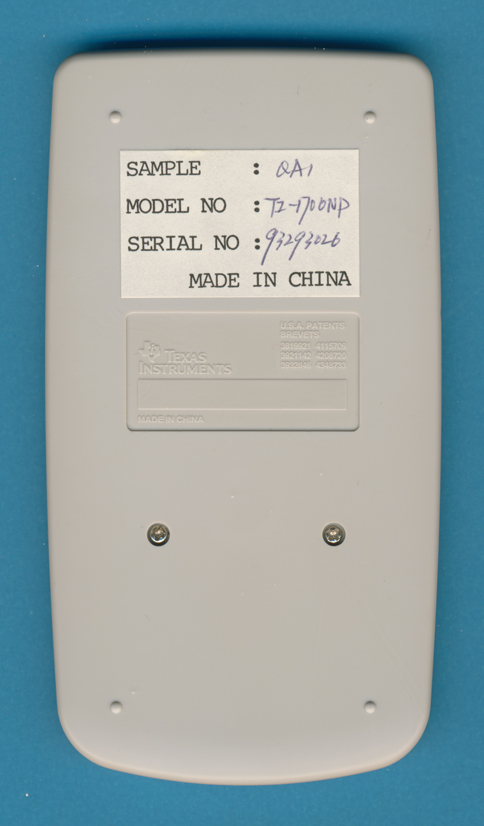

This TI-1706+ Prototype was manufactured in February 1996 by
Nam Tai Electronics in China.

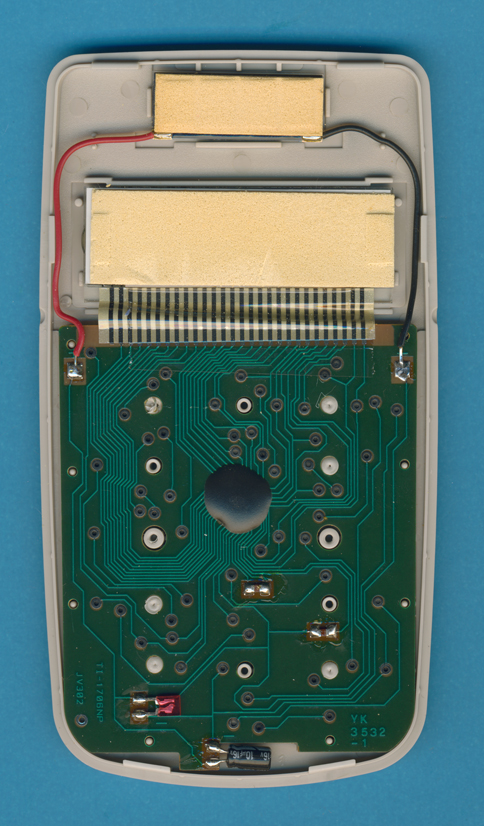

The printed circuit board (PCB) of the TI-1706+ Prototype hides its
single-chip calculator circuit under a small epoxy blob.

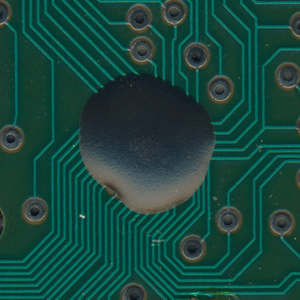

Close-up view of the unknown single-chip calculator circuit.

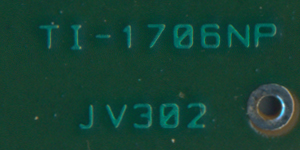

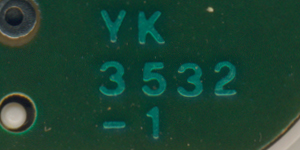

Close-up view of the PCB-Marks of the TI-1706+.
