Additional Pictures

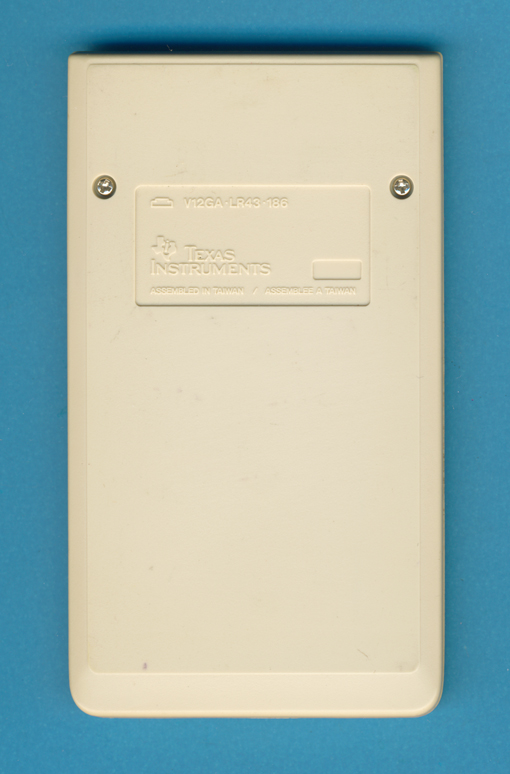

| This
TI-1100 II Prototype was manufactured in
October 1984 by Inventec Corporation in Taiwan.  |
|

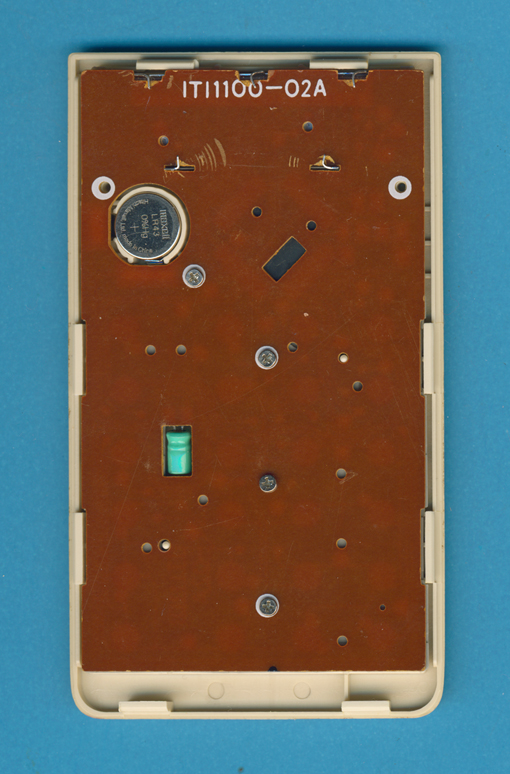

| The TI-1100
II Prototype calculator is powered by one LR43 battery.
|
|

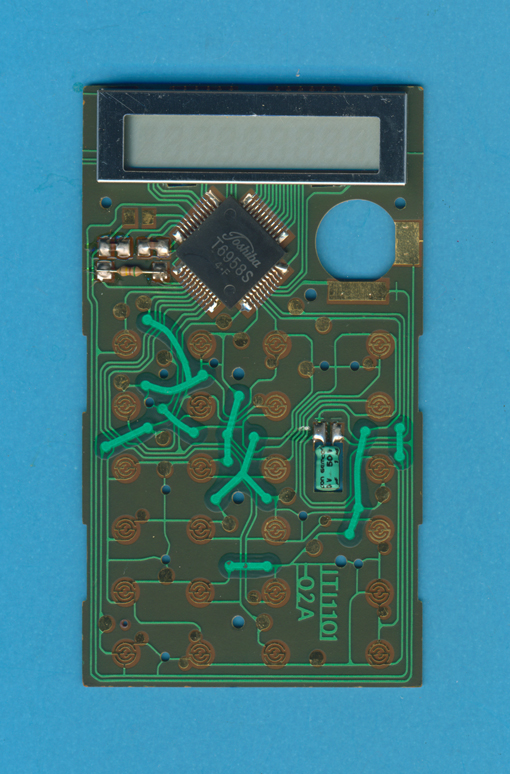

| The printed
circuit board (PCB) of the TI-1100 II Prototype is centered around a Toshiba T6958S single-chip calculator circuit.
|
|
|

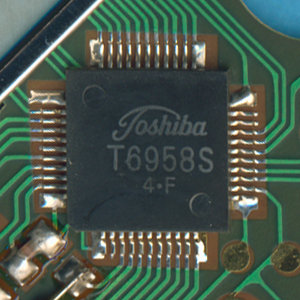

Close-up view of the Toshiba T6958S single-chip calculator circuit.  |
Close-up view of the PCB-Marks
of the first design of the TI-1100 II.   |
