Additional Pictures

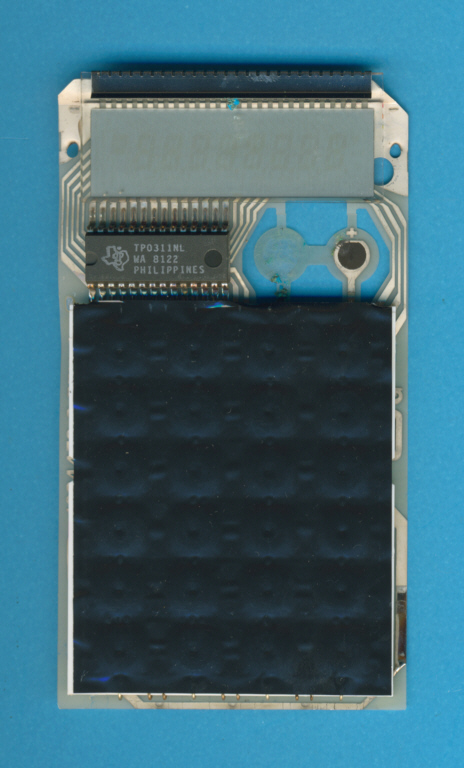

The printed circuit board (PCB) of the TI-1750
III is centered around a TP0311 single-chip calculator circuit used in most slimline basic calculators. |

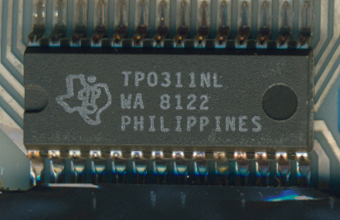

Close-up view of the TP0311
single-chip calculator circuit.
|
