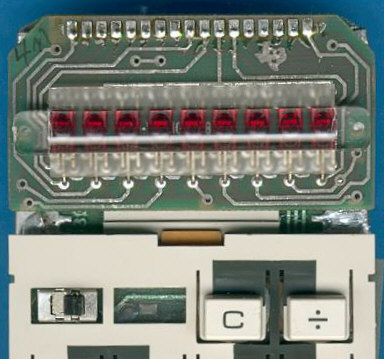

| This Exactra 21 uses a standard LED display
with 9 digits. The small numbers are magnified by a bubble lense stick.
|

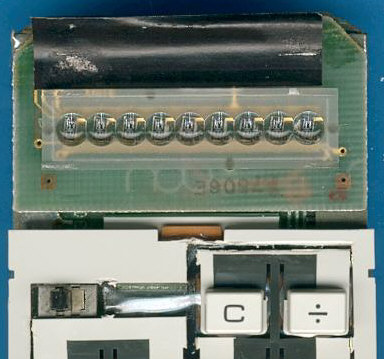

This rare Exactra 21 prototype
was manufactured with 9 single LED-modules instead the later bubble stick. Once again we notice the clear magnifier.
|

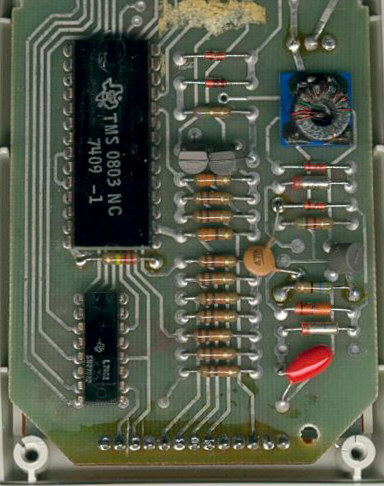

| The printed circuit board (PCB)
of the Exactra 21 with the TMS0803 single-chip calculator circuit and one additional display driver plus transistors.
|

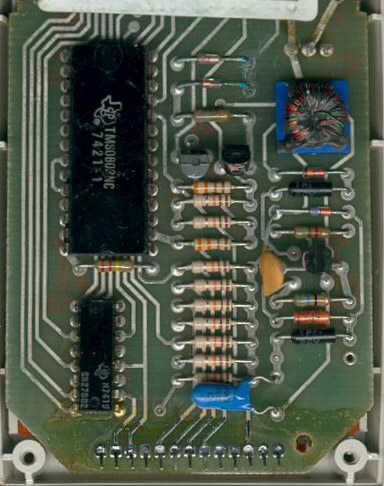

The PCB of the prototype seems to be
indentical with the later series calculator. The date code on the calculator circuit indicates the market introduction.
|
