Additional Pictures

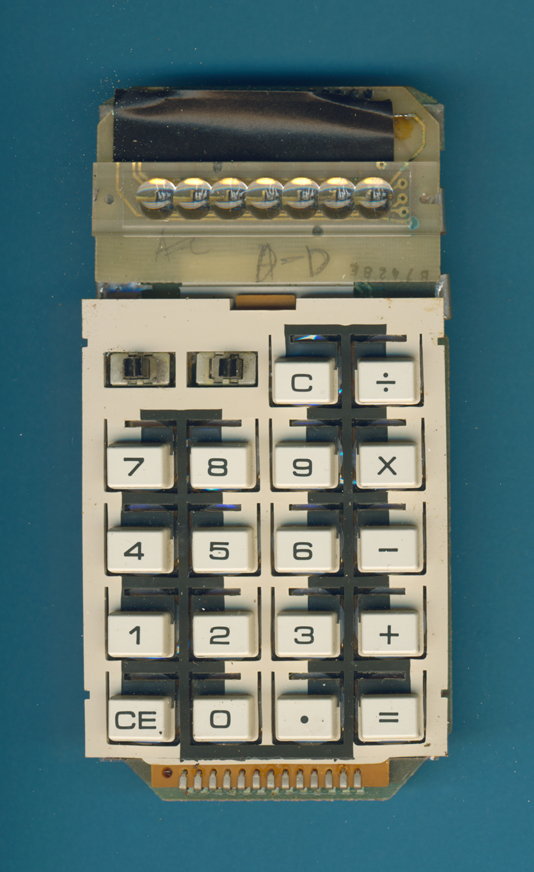

| This Exactra 20 uses an unique LED display
with only 6 digits and a leading sign position. The small numbers are enlarged by a bubble lense stick.
|

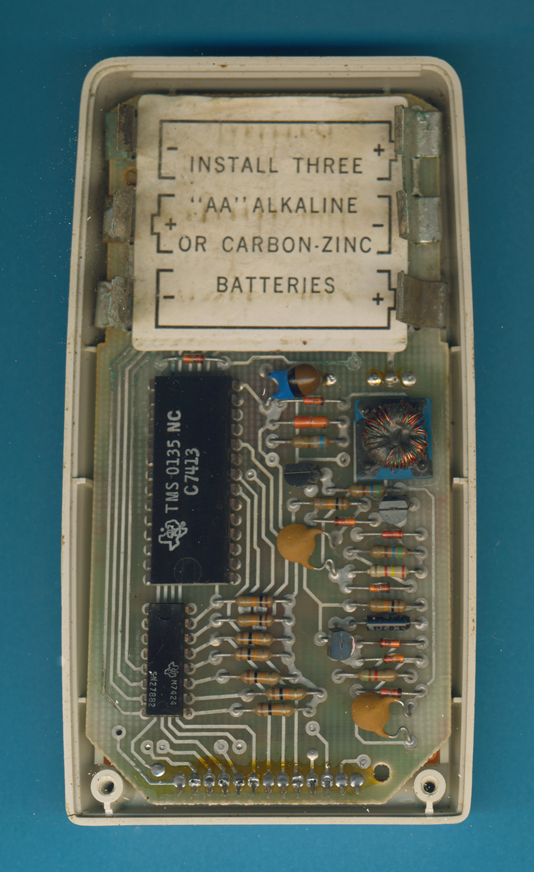

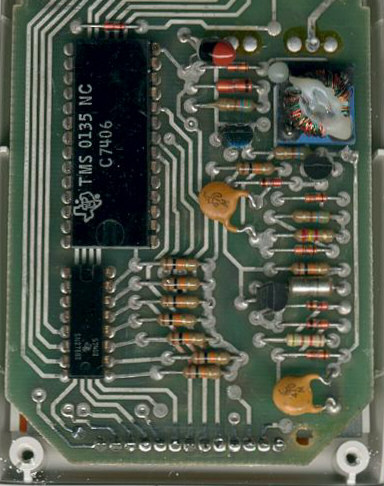

| The printed circuit board (PCB)

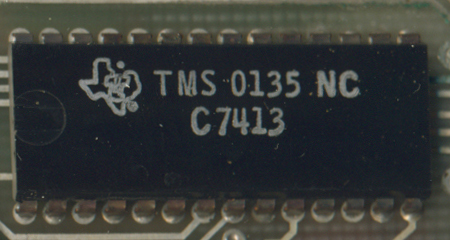

of the Exactra 20 with the TMS0135 single-chip calculator circuit and one additional display driver.
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, October 17, 2003. No reprints without written permission.
