Additional Pictures
|

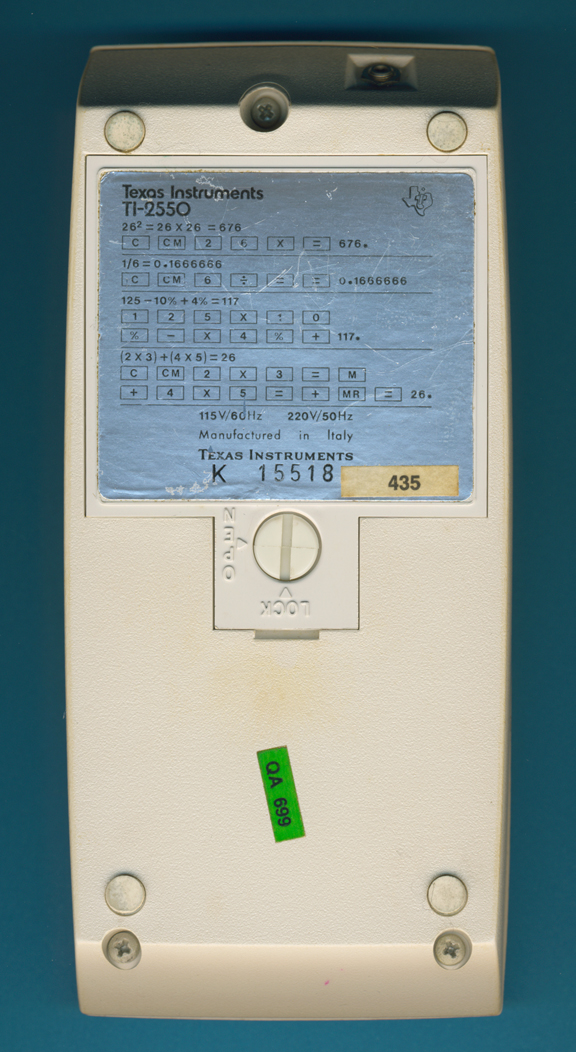

This TI-2550 Version 2 (Display 3) was manufactured
in October 1975
|
|

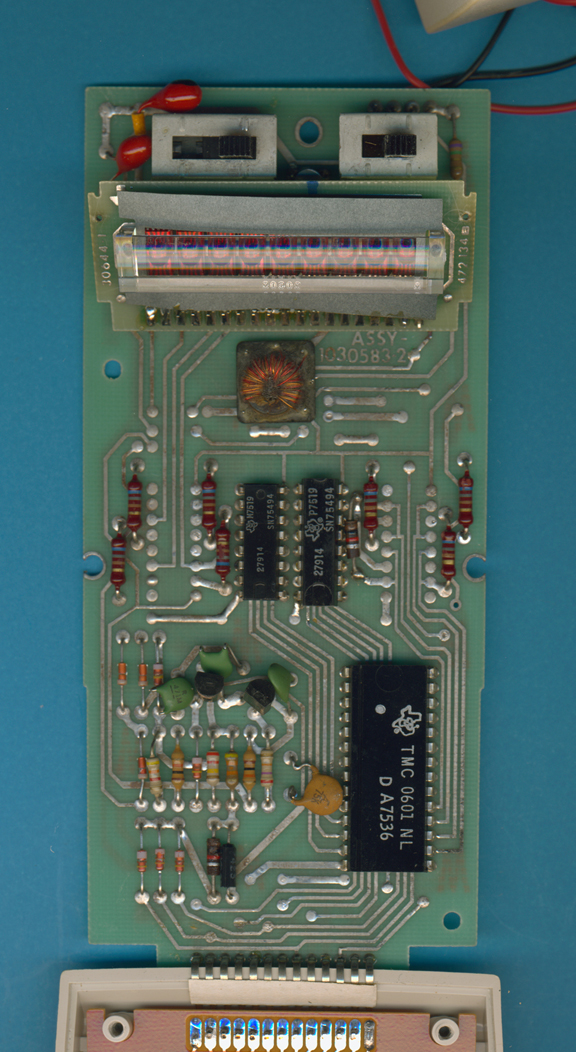

| The double-sided printed circuit board
(PCB) of the TI-2550 Version 2 is centered around a TMC0601 single-chip calculator circuit.
|
|

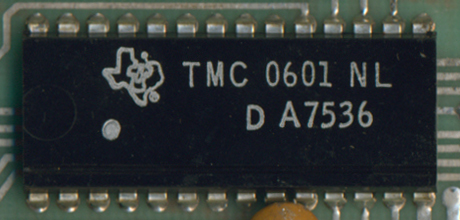

| Close-up
view of
the TMC0601 single-chip calculator circuit.
|
|
| Close-up
view of the SN75493 Segment Driver.
|
Close-up
view of the SN75494 Digit Driver.
|
