Additional Pictures

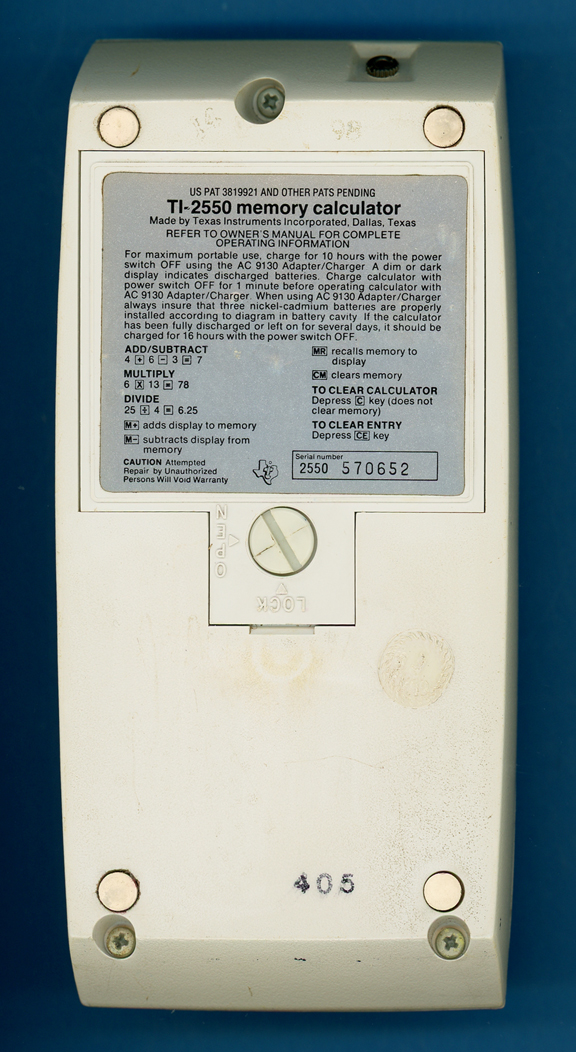

This TI-2550 Version 2 (Display 3) was manufactured in October 1975
by Texas Instruments (Date code 405 wk 40 yr 1975).

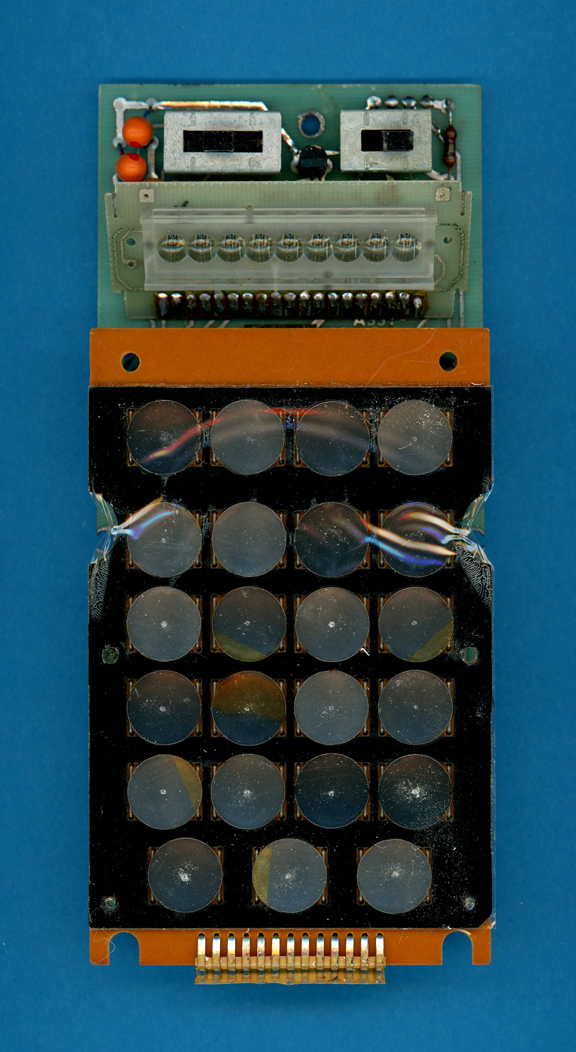

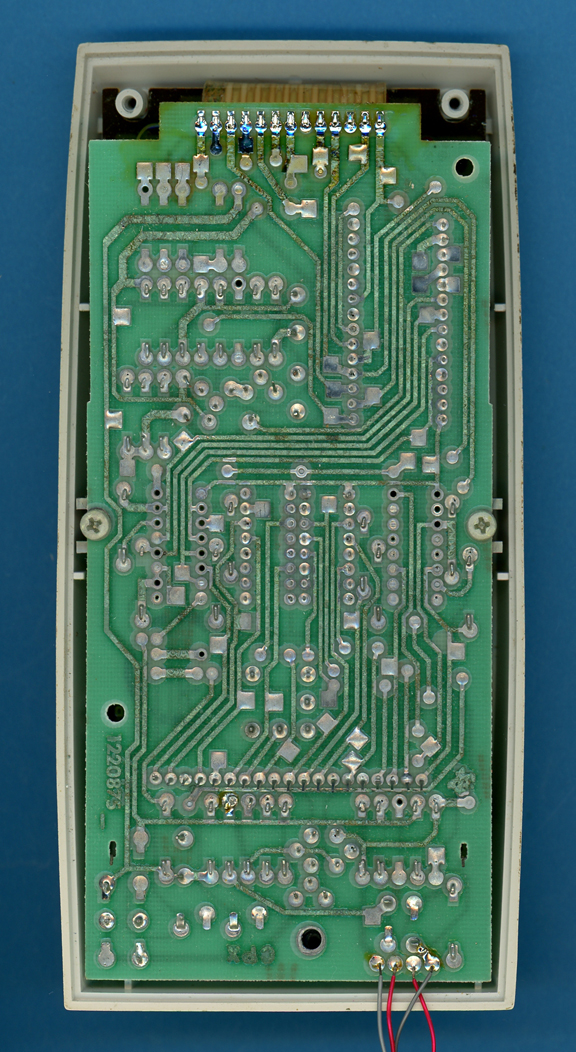

The double-sided printed circuit board (PCB) of the TI-2550 Version 2
is centered around a TMS0601 single-chip calculator circuit.

Close-up view of the TMS0601 single-chip calculator circuit.

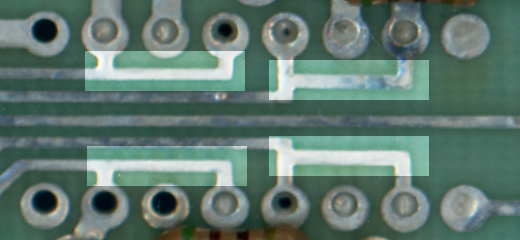

Close-up view of the SN75493 Segment Driver.

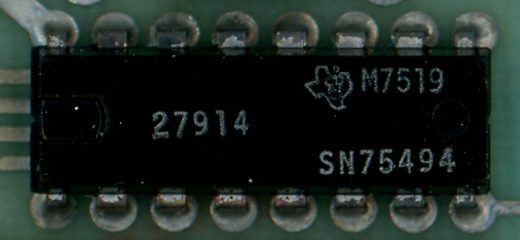

Close-up view of the SN75494 Digit Driver.

Close-up view of the DIS206C Display.
