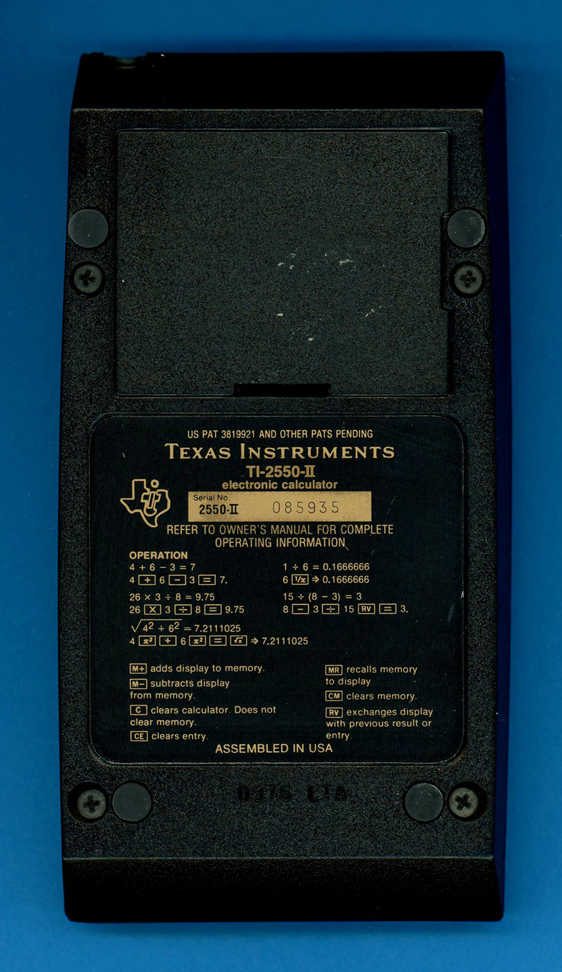

This TI-2550 II was manufactured in February 1976 by
Texas Instruments in Lubbock, TX (Date code LTA 0976 » wk 09 yr 1976).

The TI-2550 II is powered by a BP2 battery pack with 2 rechargeable AA-Size NiCd cells.

The TI-2550 II with its keyplate removed showing two sliding switches.

The printed circuit board (PCB) of the TI-2550 II is centered around a TMS1071
single-chip calculator circuit of the TMS1000 Family.

The Close-up view of the TMS1071 single-chip calculator circuit.

The Close-up view of the ITRON FG95A1 Vacuum Fluorescent Display (VFD).
