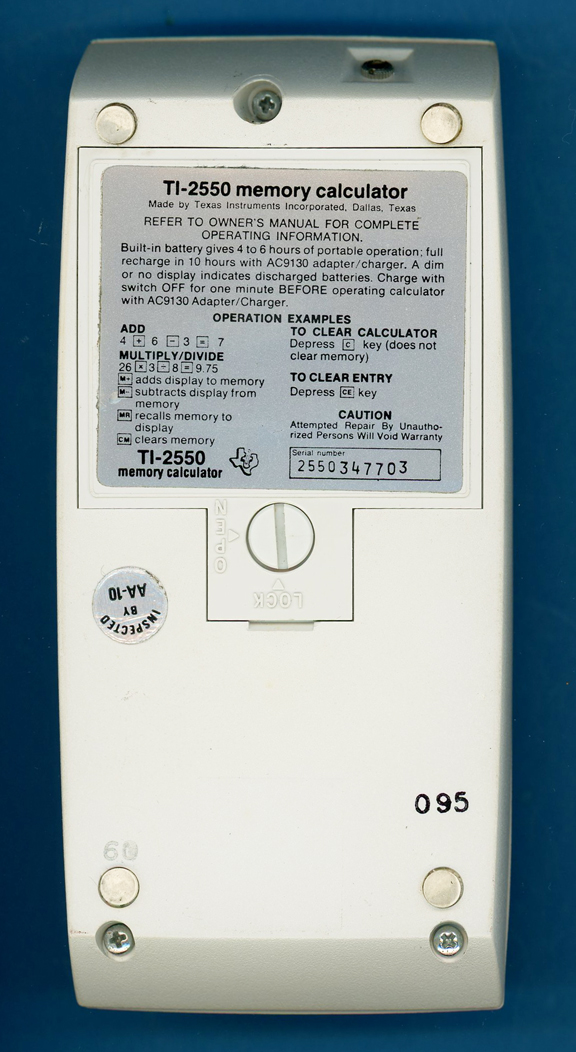

This TI-2550 Version 1 (Display 3) was manufactured in February 1975 by Texas Instruments (Date code 095 » wk 09 yr 1975).

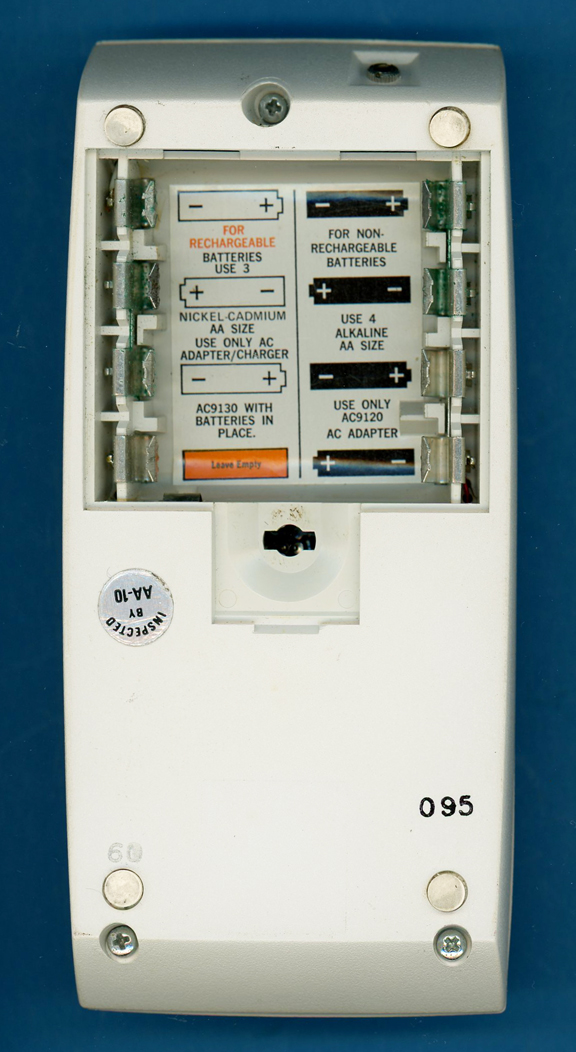

The TI-2550 is powered three AA-sized rechargeable NiCd or four disposable Alkaline batteries.

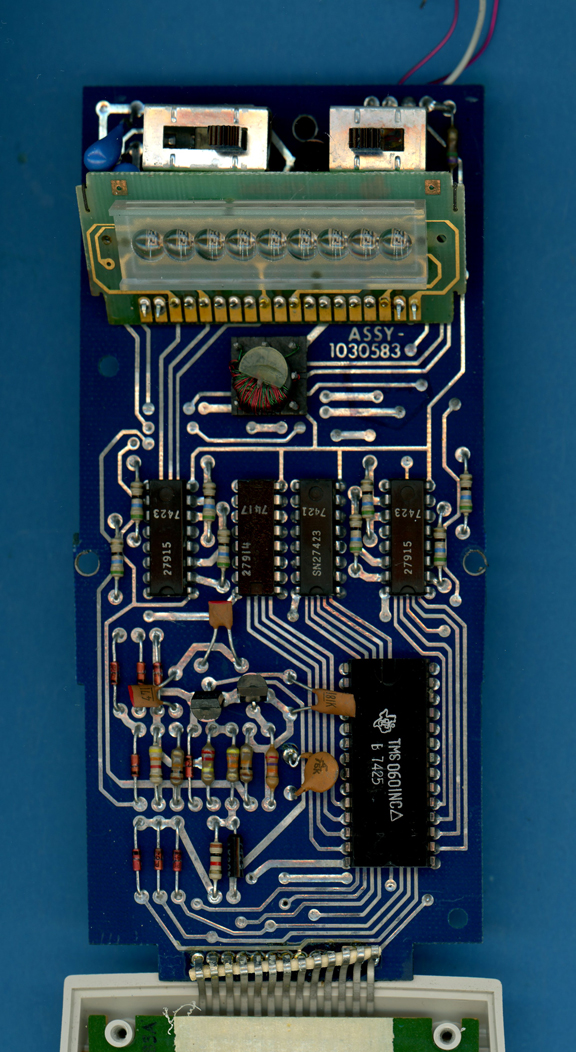

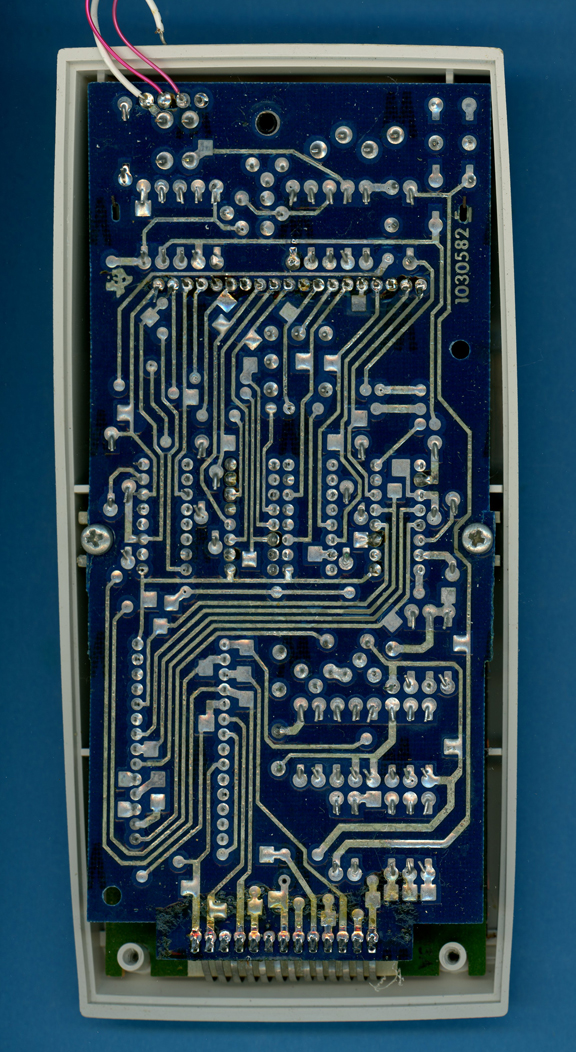

The double-sided printed circuit board (PCB) of the TI-2550 Version 1 is centered around a TMS0601 single-chip calculator circuit.

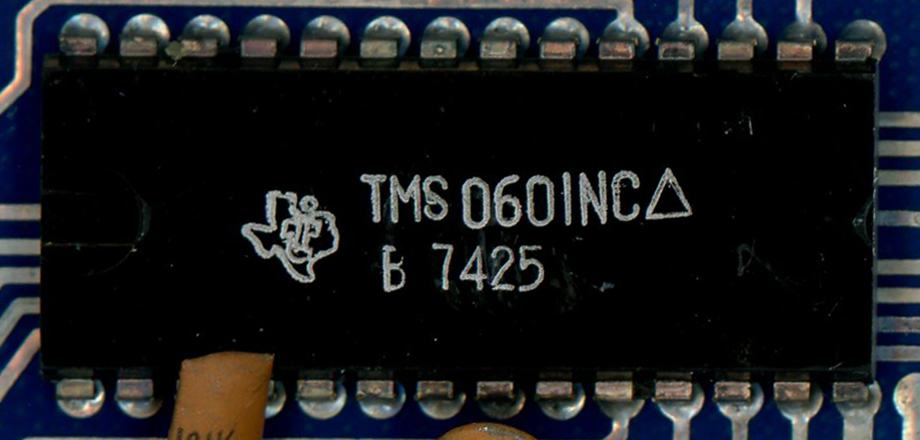

Close-up view of the TMS0601 single-chip calculator circuit.

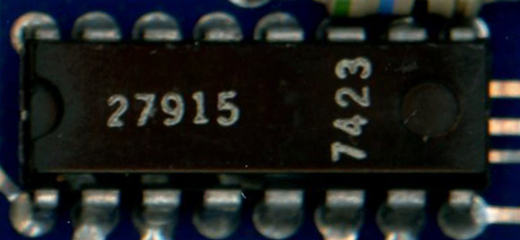

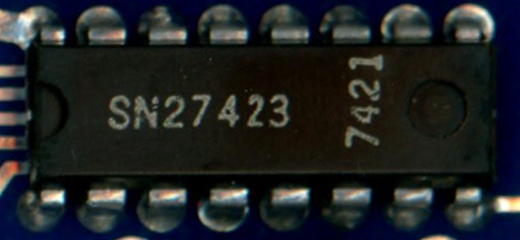

Close-up view of the SN27915 Segment Driver.	Close-up view of the SN27423 Digit Driver.

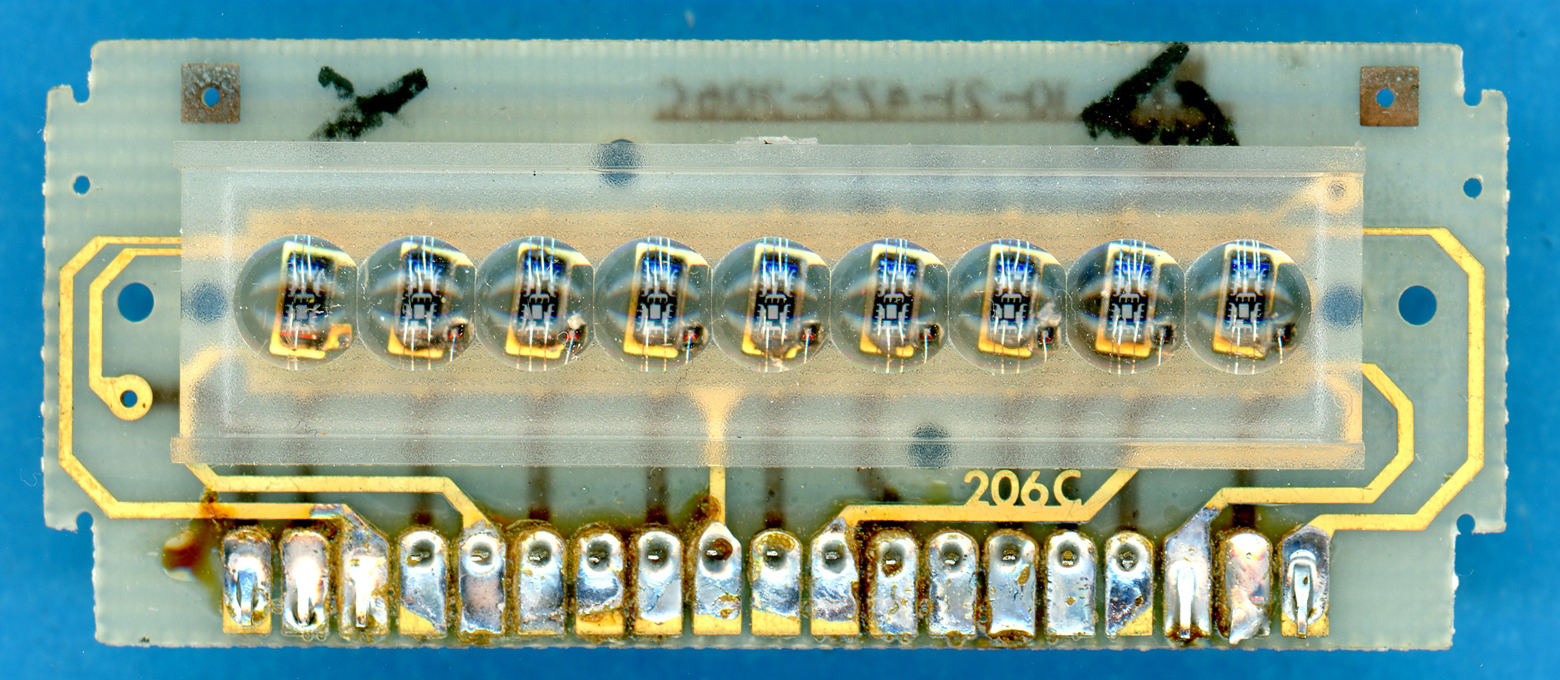

Close-up view of the DIS206C Display.
