This TI-2550 Version 1 (Display 2) was manufactured
in December 1974
|
|

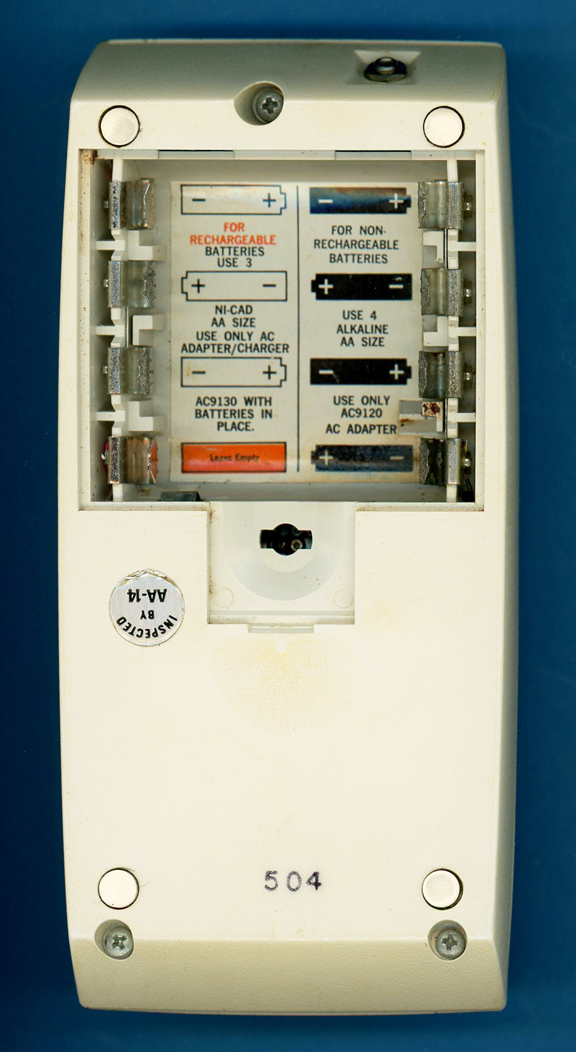

The TI-2550 is powered
three AA-sized rechargeable NiCd or four disposable Alkaline
batteries. |
|

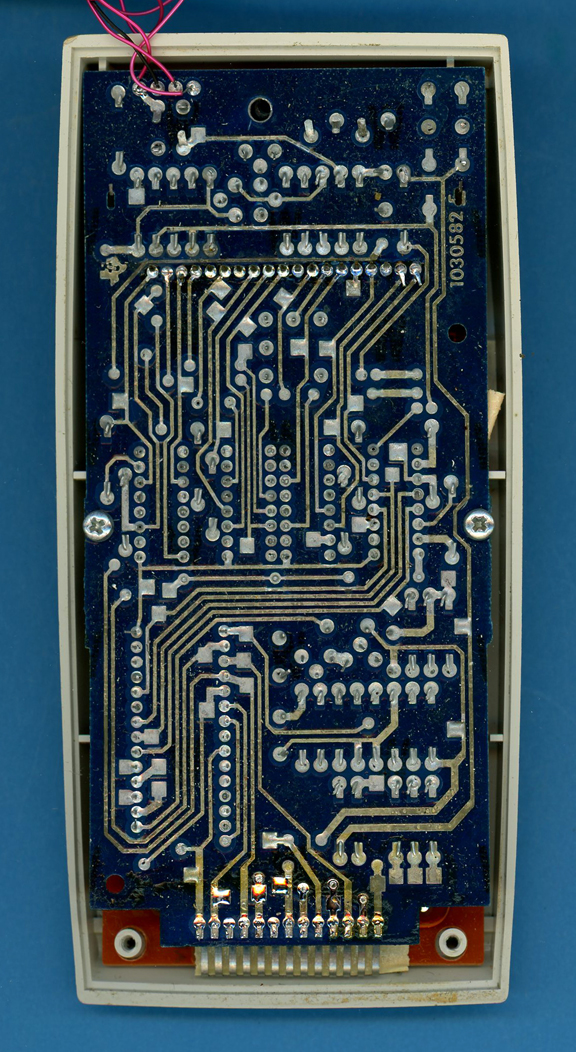

The double-sided printed circuit board
(PCB) of the TI-2550 Version 1 is centered around a TMS0601 single-chip calculator circuit.
|
|
Close-up
view of
the TMS0601 single-chip calculator circuit.
|
|
Close-up

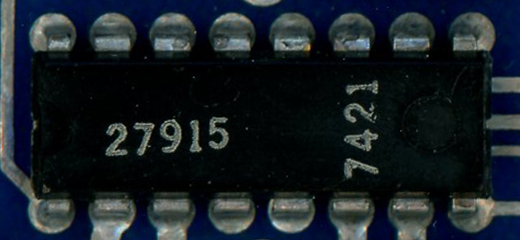

view of the SN27915 Segment Driver.
|
Close-up

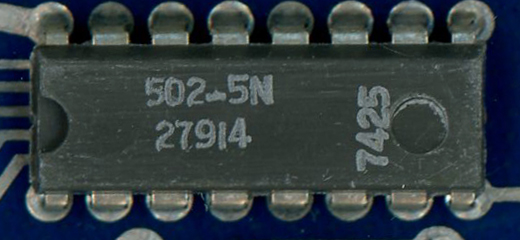

view of the SN27914 Digit Driver.
|
Close-up
view of

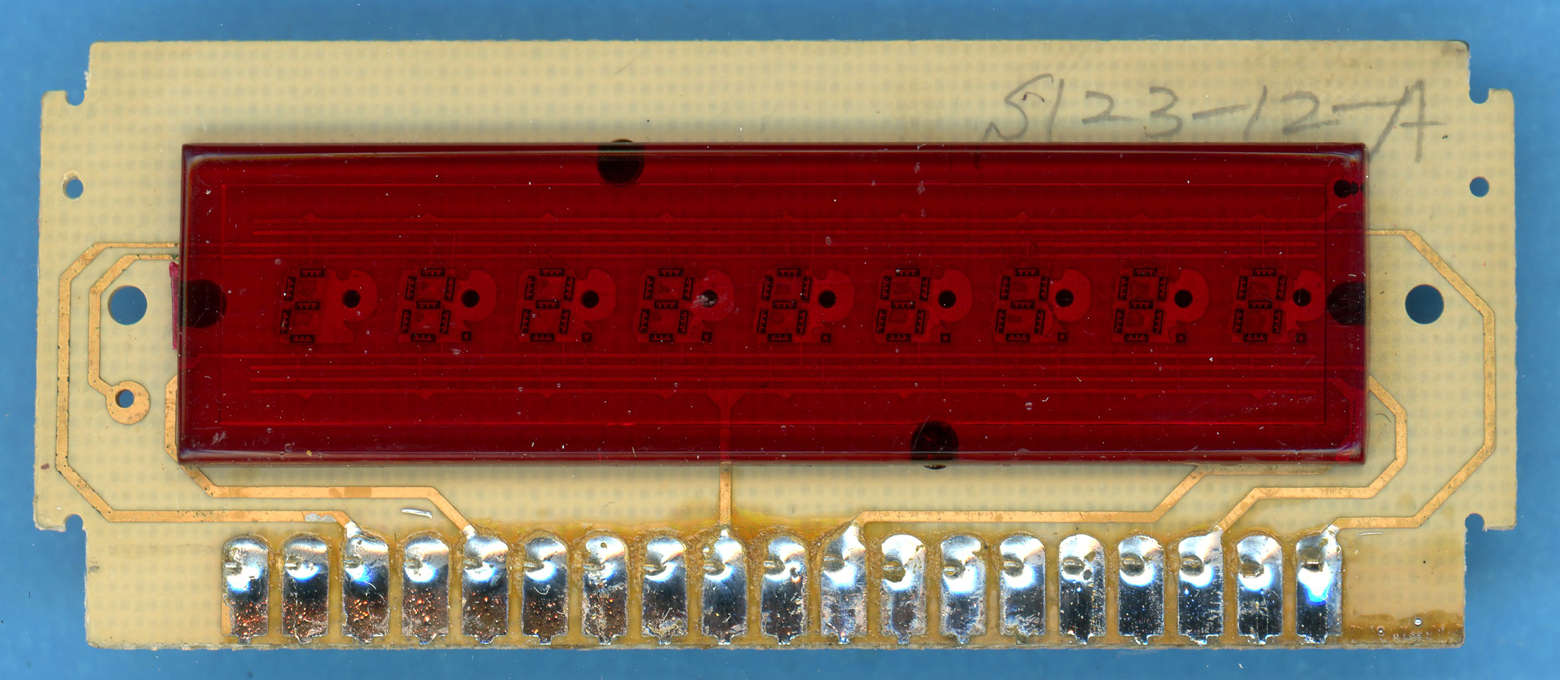

the DIS206A Display. |
