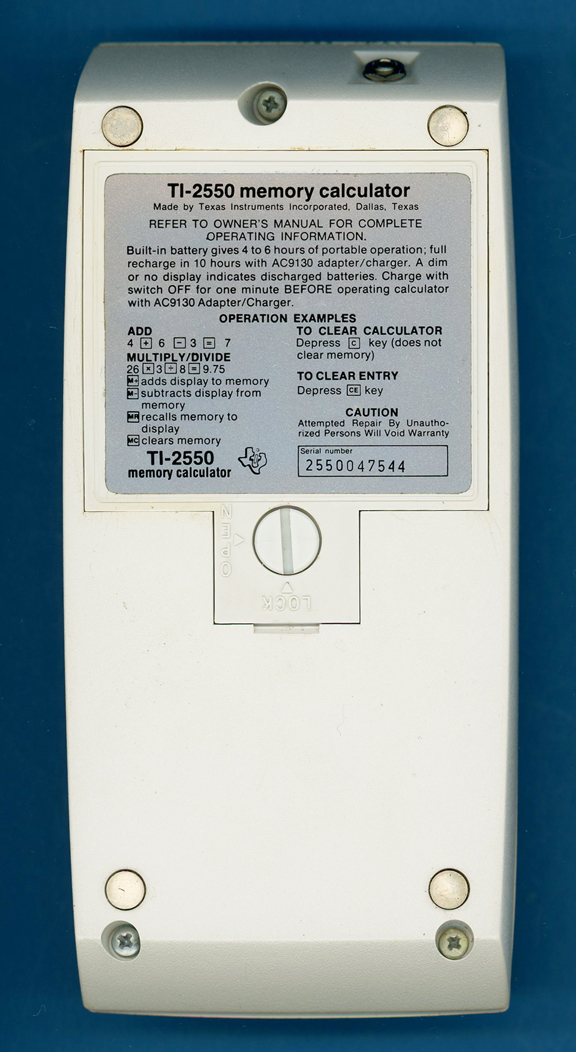

This TI-2550 Version 1 (Display 1) was manufactured in March 1974 by Texas Instruments.

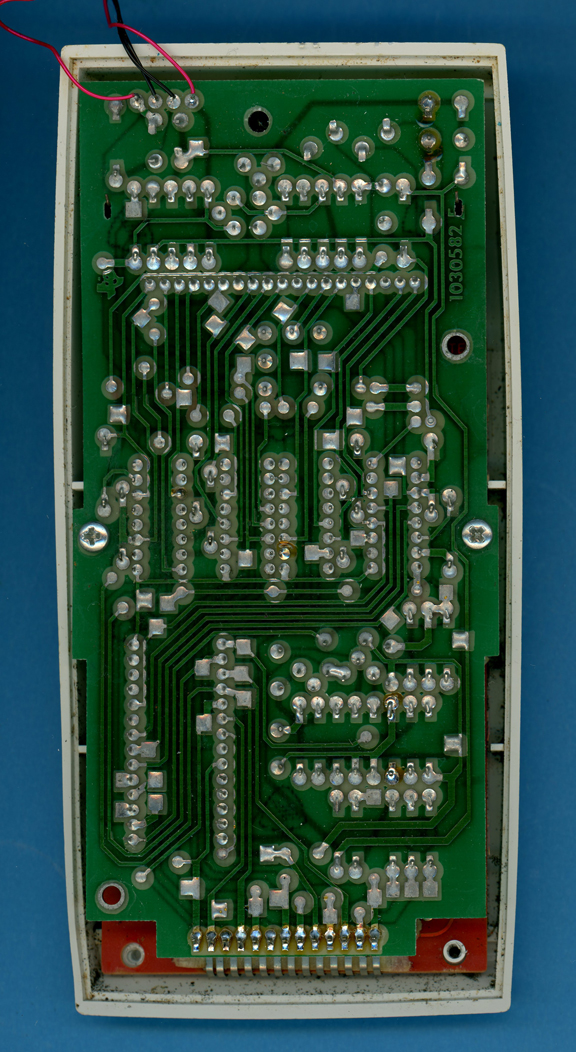

The double-sided printed circuit board (PCB) of the TI-2550 Version 1
is centered around a TMS0601 single-chip calculator circuit.

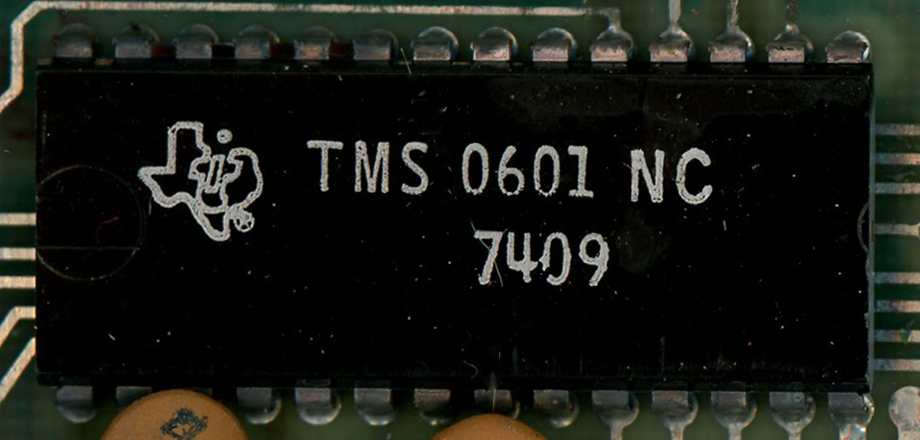

Close-up view of the TMS0601 single-chip calculator circuit.

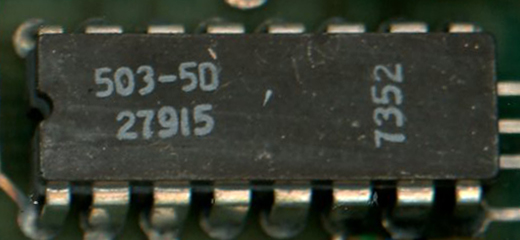

Close-up view of the SN27915 Segment Driver.

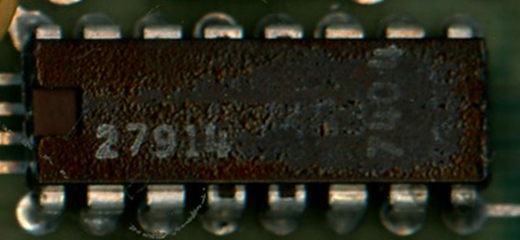

Close-up view of the SN27914 Digit Driver.

Close-up view of the DIS134C Display PCB.
