Additional Pictures

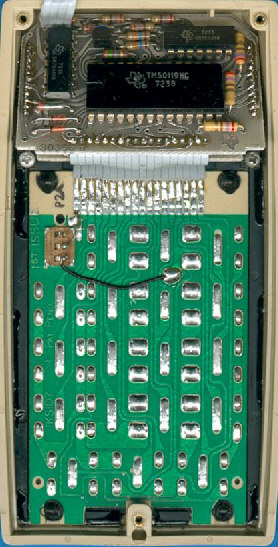

The PCB (side A) of the TI-2500 V1 :
bullet

TMS0119 Calculator Circuit

bullet

2 +2 Display Drivers

bullet

2 LED modules

(ID: A001204, Italy)

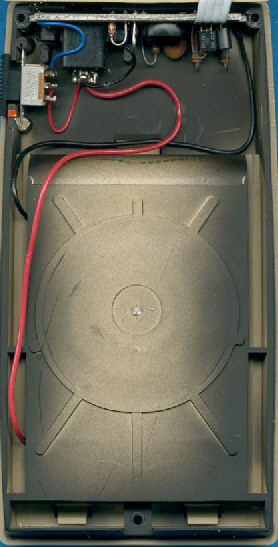

The bottom shell of the TI-2500 V1:

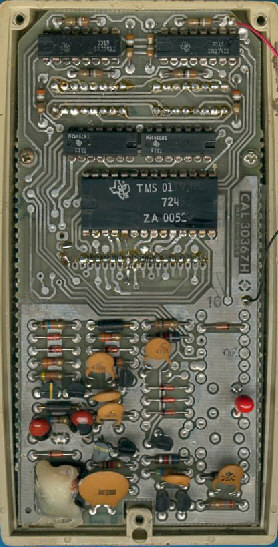

The PCB (side A) of the TI-2500 V2:
bullet

TMS0119 Calculator Circuit

bullet

2 +2 Display Drivers

bullet

2 LED modules

(ID: 2500 378664, USA)

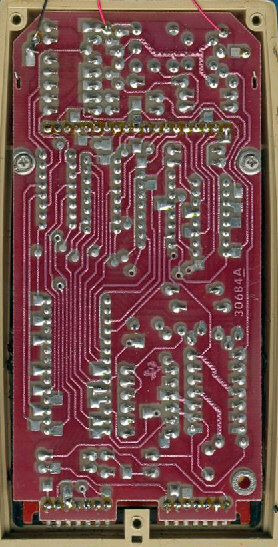

The PCB (side A) of the TI-2500 V3:


(ID: 2500 024221, USA)

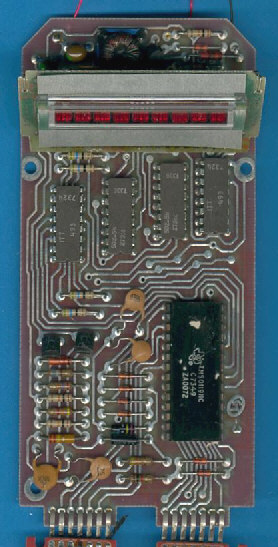

The PCB (side B) of the TI-2500 V3:
bullet

TMS0119 Calculator Circuit

bullet

2 +2 Display Drivers

bullet

9 LED modules

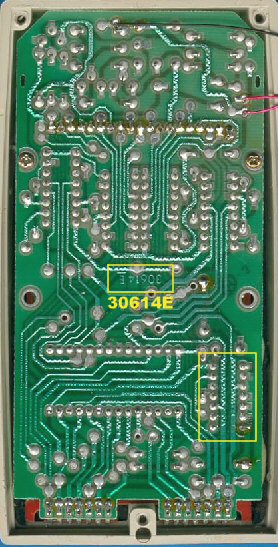

The PCB (side A) of the early TI-2510:
bullet

PCB Designation 30614E


(ID: 2510 065153, USA)

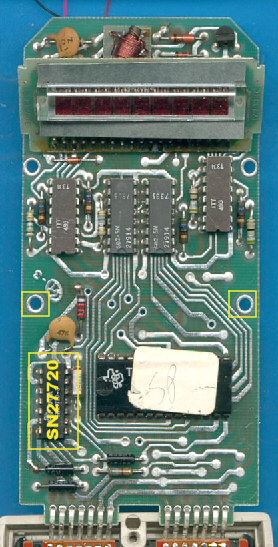

The PCB (side B) of the early TI-2510:
bullet

TMS0119 Calculator Circuit

bullet

SN27720 Power Supply

bullet

9 LED modules

bullet

Mystery holes

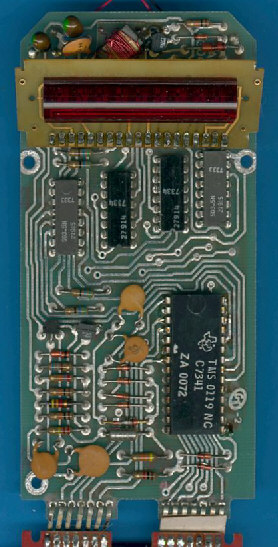

The PCB (side B) of a rare TI-2500B
prototype testing the Bowmar
Opto-stick display in a TI-2500 V3.



(ID: none, wk 42 year 1973)

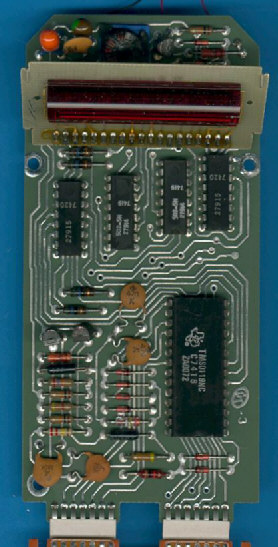

The PCB (side B) of the TI-2500B:
bullet

TMS0119 Calculator Circuit

bullet

Bowmar Opto-stick

bullet

9 LED modules

(ID: 2500B487035, USA)

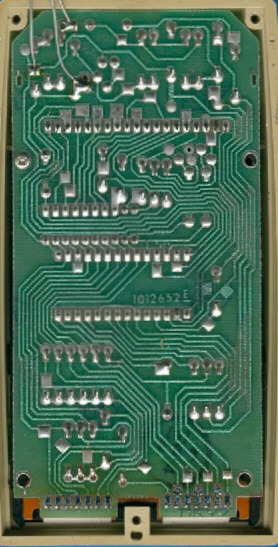

The PCB (side A) of the TI-2500 II:

(ID: 2500-II-276954, wk 33 year 1975)

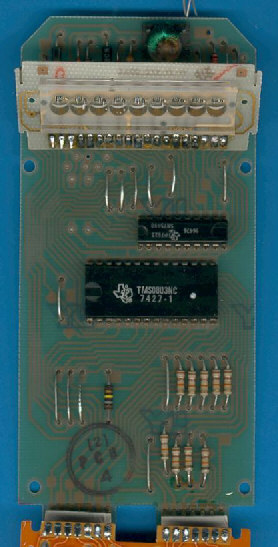

The PCB (side B) of the TI-2500 II:
bullet

TMS0803 Calculator Circuit

bullet

1 Display Driver

bullet

1 LED stick
