Additional Pictures

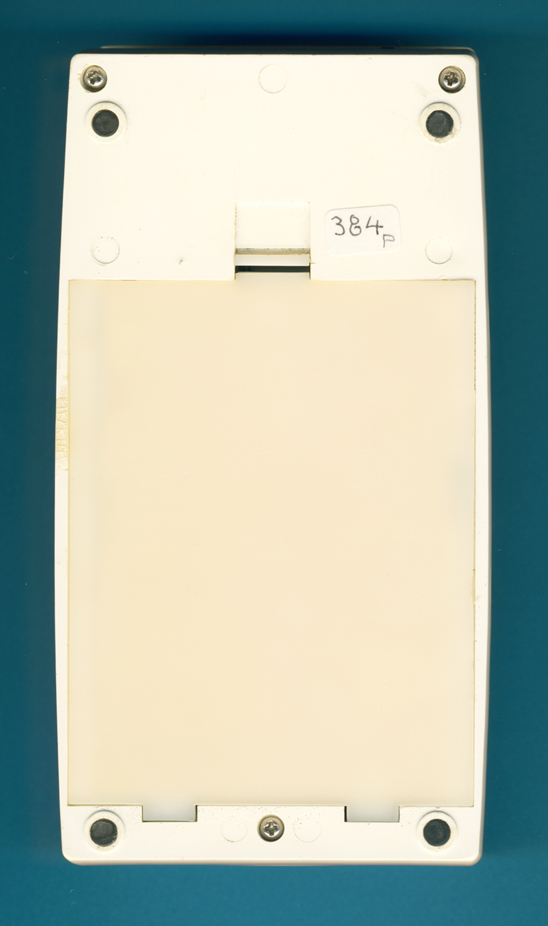

The backside of an early Minimath prototype.

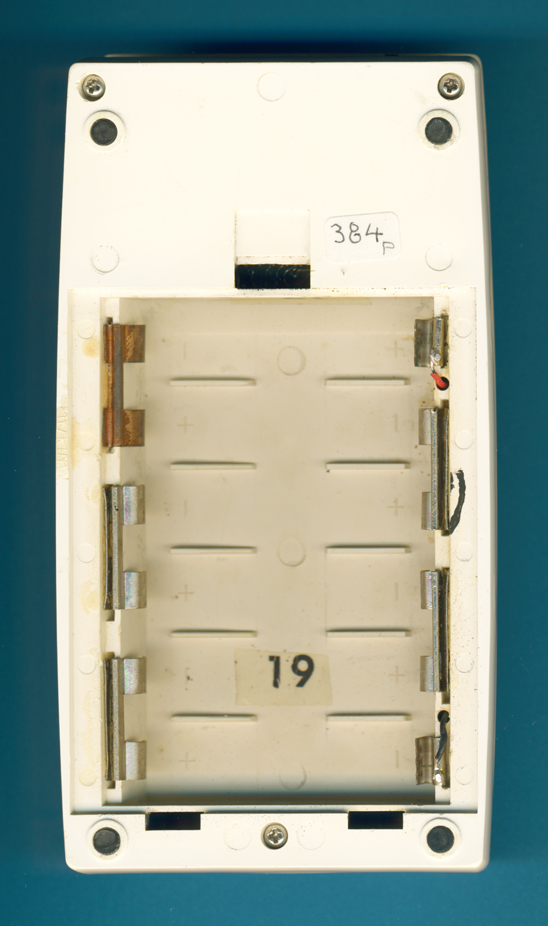

The Minimath calculator makes use of six AA-sized batteries.

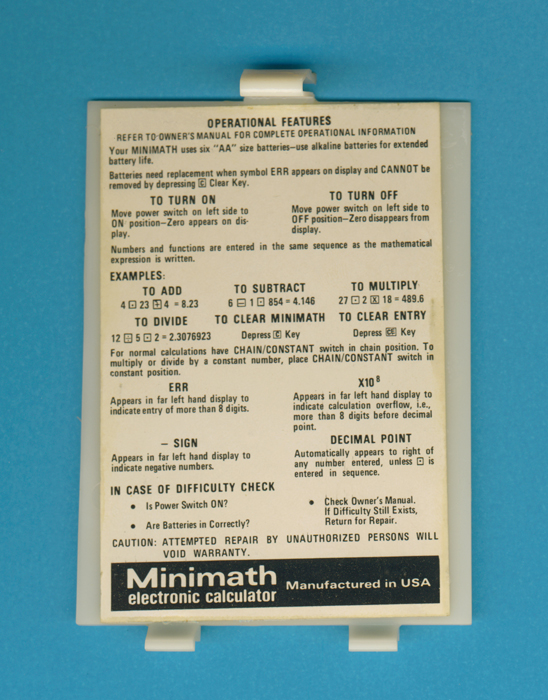

The label of the Minimath calculator.

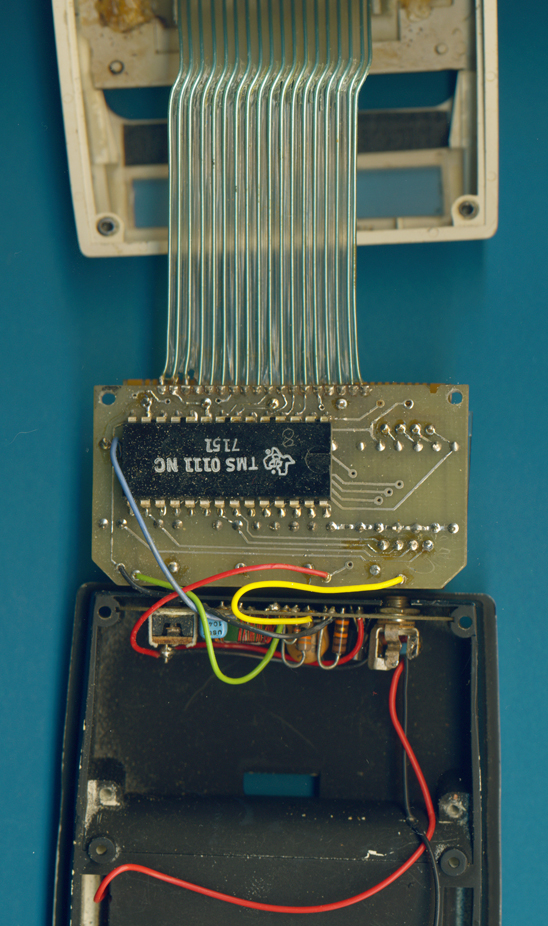

The  printed circuit board (PCB) of the early Minimath prototype.

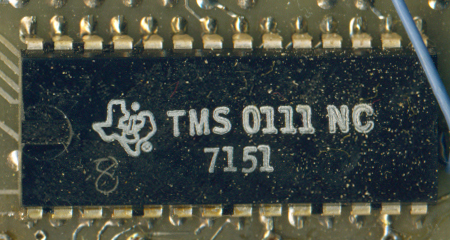

Close-up view of the TMS0111 single-chip calculator circuit
manufactured in December 1971.

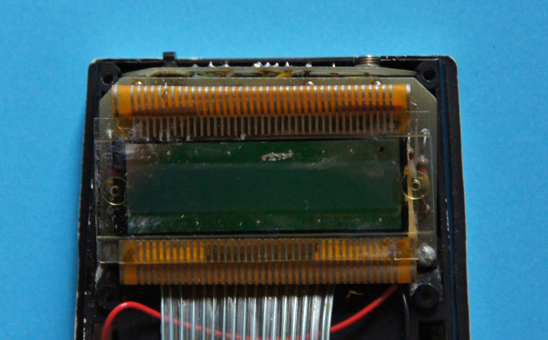

The LCD (Liquid Crystal Display) of the Minimath.

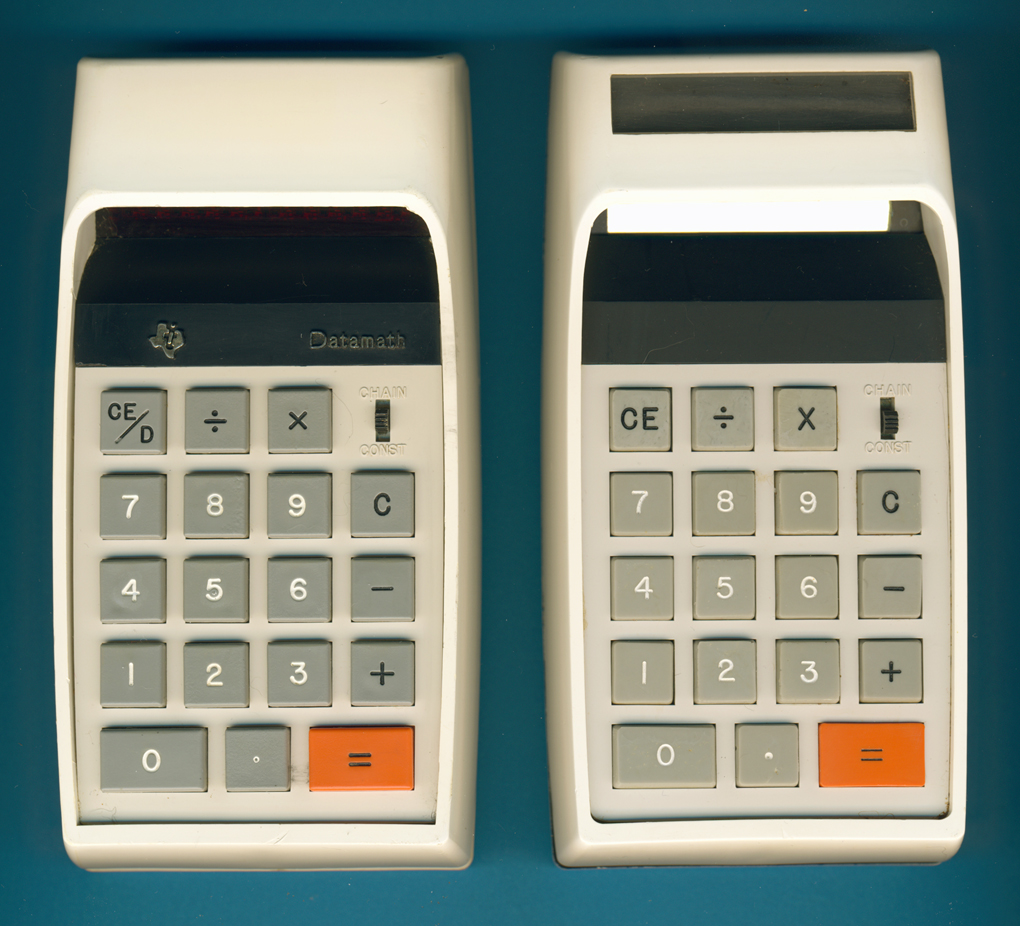

The coloring of the early Datamath picked up the design of the Minimath prototype.
